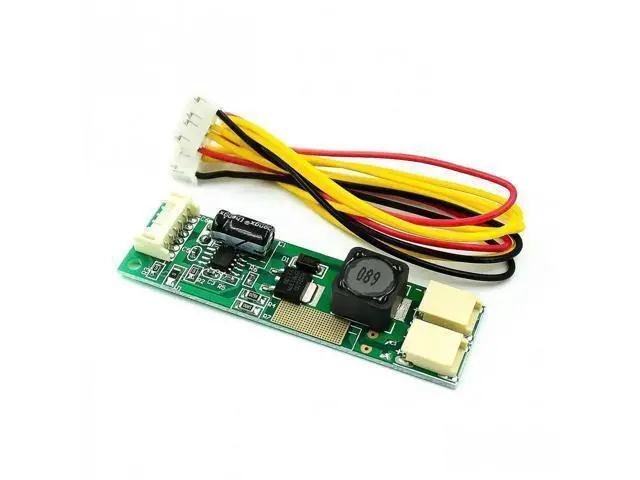

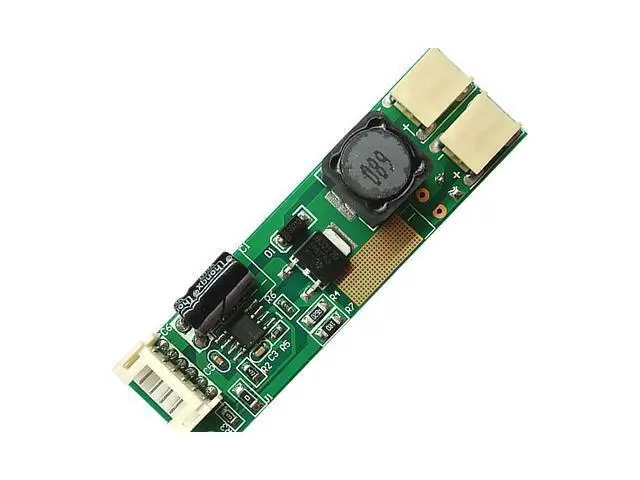

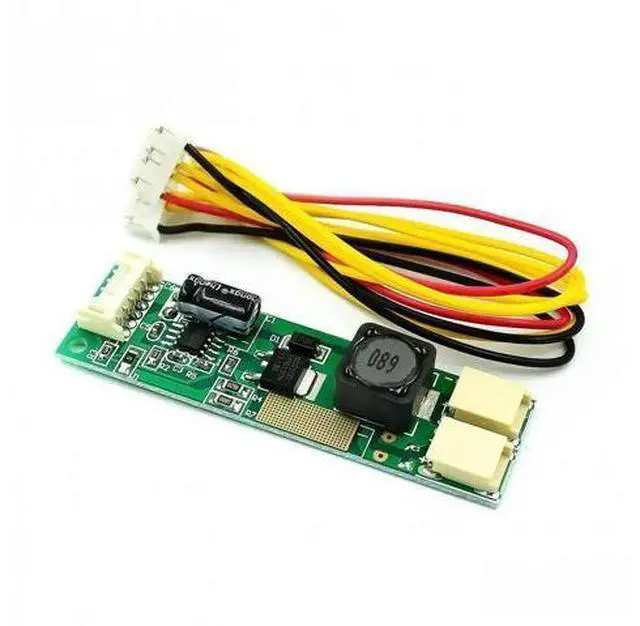

CA-155 LED Constant Current Board, 10-30V to 9.6V High Voltage Converter LED Backlight Driver with Dimming for 15-27" LCD Monitor TV
- Wide Compatibility & Universal Fit; Universal CA-155 LED constant current board, works with 1527 inch LCD monitors/TVs (Samsung, LG, Philips, AOC, Dell, etc.) with LED backlight strips. Ideal replacement for original inverter boards.; 10-30V Wide Input, 9.6V Constant Output; Input: DC 10-30V (supports 12V/24V systems); Output: 9.6V constant current. Stable voltage conversion for 12 LED strips (up to 99 LEDs total).; Built-in Dimming & On/Off Control; Features dimming function and ENA on/off pin (3.35V compatible) for brightness adjustment and power switching. Smooth dimming without flicker for backlight customization.; Efficient & Reliable Circuit Design; Non-isolated step-down converter with 125 shielded inductor for stable current output. Over-voltage, over-current and short-circuit protection ensure long-term durability.; Compact Size & Easy Installation; Dimensions: 70 x 20mm (L x W), lightweight and easy to mount. 6-pin connector for plug-and-play installation; no complex wiring needed for most LCD models
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
CA-155 Universal LED Backlight Driver Board 10-30V to 9.6V Constant Current Converter with Dimming This CA-155 LED constant current board is a professional replacement for traditional CCFL inverters in 1527 inch LCD monitors and TVs, compatible with major brands including Samsung, LG, Philips, AOC, and Dell. It converts a wide input voltage of DC 10-30V (12V/24V compatible) to a stable 9.6V constant current output, supporting 12 LED backlight strips with up to 99 LEDs total. Equipped with a dimming control pin and on/off switch pin ( 3.35V logic level), the board allows precise brightness adjustment and power management for the LED backlight.
The non-isolated step-down circuit with a shielded inductor ensures efficient power conversion, while built-in over-voltage, over-current, and short-circuit protection safeguards the LED strips and the board itself. Measuring 70 x 20mm, this compact driver board is easy to install with its standard 6-pin connector, requiring no complex modifications or soldering for most LCD models. Perfect for repairing faulty, flickering, or dim LED backlights, the CA-155 restores optimal brightness and reliability to your LCD display.
Model: CA-155
Input Voltage: DC 10-30V
Output Voltage: 9.6V (Constant Current)
Compatible LED Strips: 12 strips (up to 99 LEDs total)
Control Interface: 6-pin (VIN, GND, ENA, DIM, LED+, LED)
Dimming Function: Yes ( 3.35V
PWM/DC) Protection: Over-voltage, Over-current, Short-circuit
The non-isolated step-down circuit with a shielded inductor ensures efficient power conversion, while built-in over-voltage, over-current, and short-circuit protection safeguards the LED strips and the board itself. Measuring 70 x 20mm, this compact driver board is easy to install with its standard 6-pin connector, requiring no complex modifications or soldering for most LCD models. Perfect for repairing faulty, flickering, or dim LED backlights, the CA-155 restores optimal brightness and reliability to your LCD display.
Model: CA-155
Input Voltage: DC 10-30V
Output Voltage: 9.6V (Constant Current)
Compatible LED Strips: 12 strips (up to 99 LEDs total)
Control Interface: 6-pin (VIN, GND, ENA, DIM, LED+, LED)
Dimming Function: Yes ( 3.35V
PWM/DC) Protection: Over-voltage, Over-current, Short-circuit
