2PCS Dual Port USB-C 3.1 & USB 3.0 Female to Female Connector | USB A USB C Panel Mount Adapter, USB A & Type C Feedthrough Bulkhead, Socket Installed in Dashboard Device Panel
- Dual-Port Front Panel Solution: Say goodbye to adapter dongles and messy cables! This innovative panel mount provides both a high-speed USB 3.1 Type-C (10Gbps) port and a standard USB 3.0 Type-A (5Gbps) port in a single, compact unit. Effortlessly connect modern and legacy devices from one convenient location.

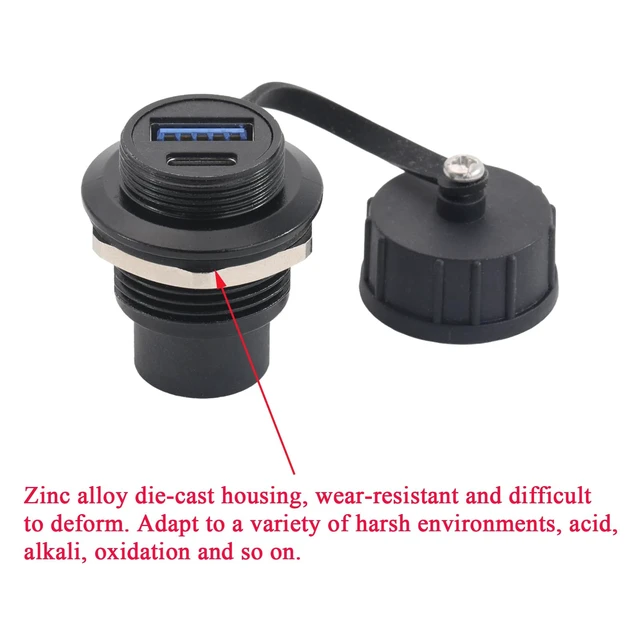

- DURABLE: This USB3.0 and type c connector is made of Zinc diecast (ZnAl4Cu1),features a robust metal flange nut and high-strength housing for a rock-solid, permanent mount on panels, flame retardant, UV resistant, and anti-aging.
- Experience blazing-fast data transfers: the USB-C port supports up to 10Gbps, while the USB-A port offers 5Gbps. Fully backward compatible with previous USB standards (USB 2.0/1.1). Perfect for transferring large files, running peripherals, or connecting VR equipment.
- Perfect for integrating a USB port into computers, servers, CNC machines, 3D printers, car dashboards, marine panels, kiosks, and DIY projects. Eliminates the hassle of reaching behind devices to plug in USB drives, cables, or dongles.
- Standard O-Series Connector for Panel-Mount Installations, simply cut a 24.5mm through hole on the board surface and fix the mounting with nut, USB female to female field installable coupler, no soldering, no installation tools, just plug the standard USB head directly for quick installation.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Meet Your New Connectivity Hub: Twice the Ports, Zero the Clutter.In a world split between modern USB-C and ubiquitous USB-A, why choose just one? Our Dual-Port Panel Mount Adapter is the elegant, high-performance answer, giving you instant access to both standards right where you need them most.
Technical Specifications:
Waterproof rating: None (without waterproof cover), IP68 (with waterproof cover)

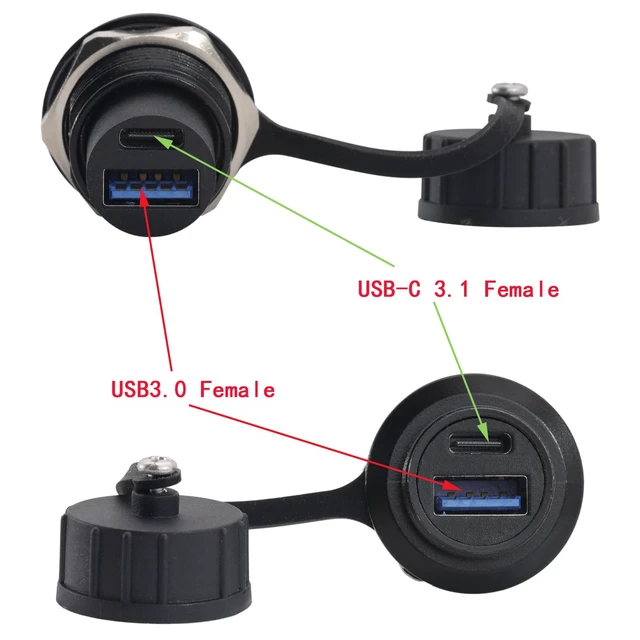

Connection type1: USB3.0 Female to Female Extension Connector
Connection type2: USB-C 3.1 Female to Female Extension Connector
Electrical parameters:
Rated current: 0.5A
Rated voltage: 50V
Insulation resistance: 500M
Dielectric strength: DC1000V
Contact resistance: 10m
Material:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: black electrophoretic paint
Contact material: Bronze (CuSn8)
Contact pin gold plating: 7µm Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times
Installation panel thickness: min 2.0mm-max 10mm
Base shape: O type
NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP68 Water Protection. It is not waterproof without water/dust cap.
Package includes:
2 x Panel Mounting USB-C 3.1 & USB 3.0 Female to Female Connector
