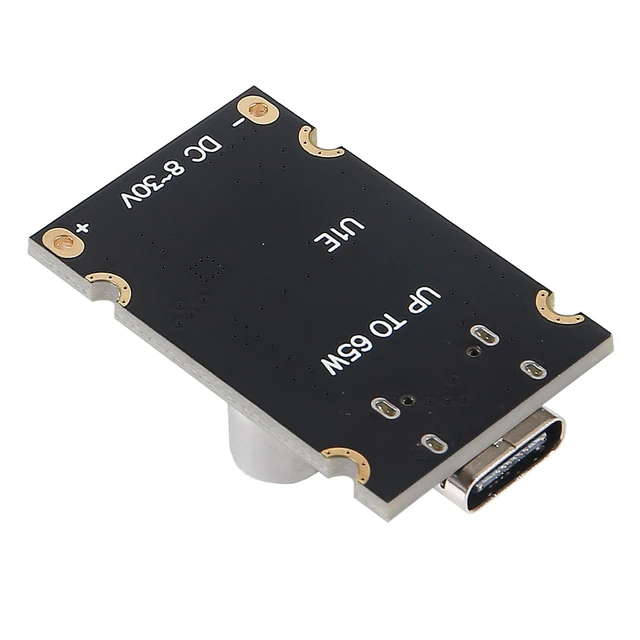

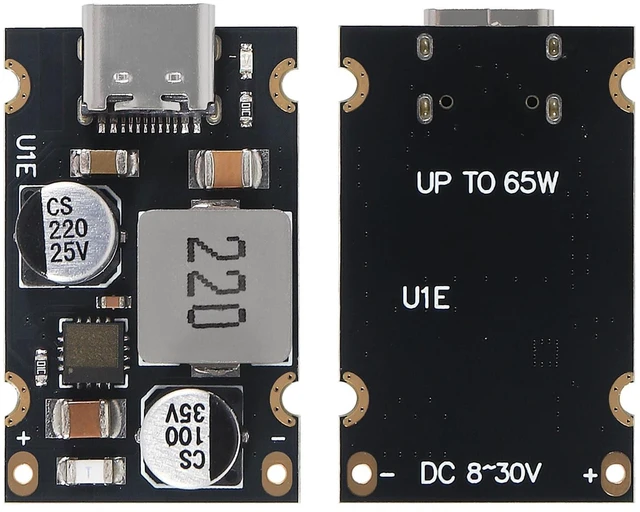

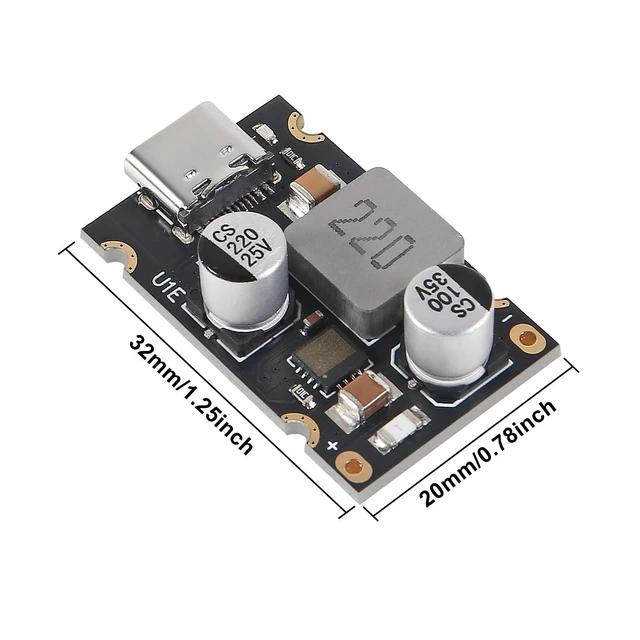

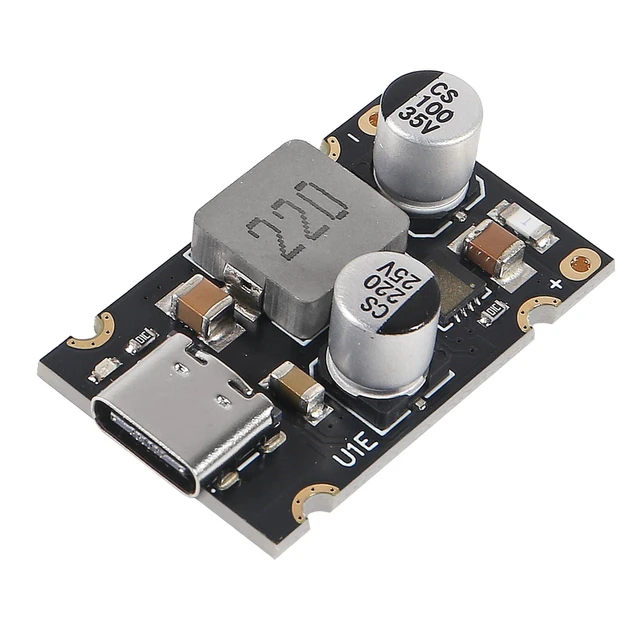

65W PD Fast Charging Module Type-C USB Interface Power Delivery Charger Board PD3.1 PPS QC3.0 SCP DC 8-30V Input 3.3-21V Auto Output 20V 3.25A Max Protection Circuit 3PCS
- 65W maximum output supports 5V/3A, 9V/3A, 12V/3A, and 20V/3.25A output profiles for supported charging requirements.
- The Type-C interface automatically adjusts output voltage from 3.3V to 21V when connected to a compatible Type-C receiving device.
- Supports PD3.1 (PPS), QC3.0, and SCP charging protocols for devices using these supported charging standards.

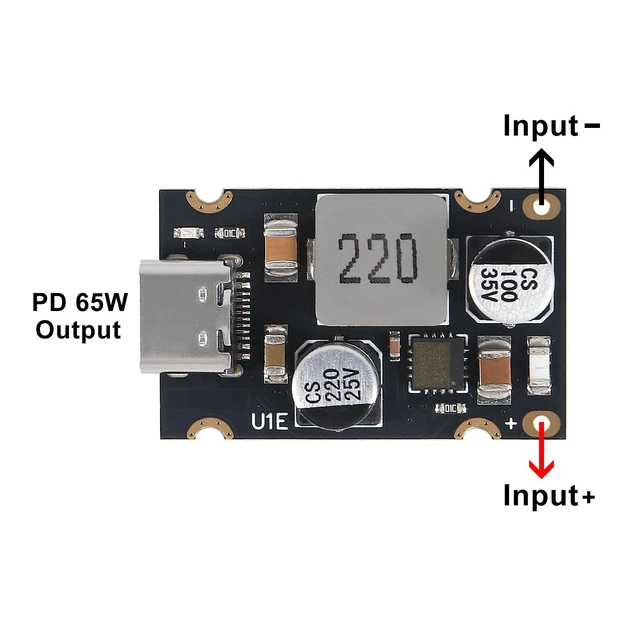

- Accepts DC 8V to 30V input power, with the input voltage required to exceed the selected output voltage.
- The module reaches up to 92% to 97% conversion efficiency, helping convert supplied input power into regulated output power.
- 20V fast charging requires an input voltage above 20V, while the module automatically selects the output level supported by the connected device.
- Input overvoltage and undervoltage protection helps protect the module when the supplied DC input falls outside the specified range.
- Input overcurrent protection and output overcurrent protection help address excessive current conditions during operation.
- Output short-circuit protection and whole-unit over-temperature protection help protect the module during abnormal operating conditions.
- The package includes 3 PD 65W Type-C fast charging modules, each specified with output ripple below 200mV and no-load current below 3mA.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
PD65W fast charging module with a Type-C USB interface for delivering high-power charging to compatible Type-C receiving devices. It supports automatic output adjustment and multiple fast charging protocols for suitable applications.
Core Selling Points:
Supports PD3.1 (PPS), QC3.0, and SCP fast charging protocols. Provides up to 65W output power with conversion efficiency of 92%~97%. Integrated protection includes input overvoltage and undervoltage protection, input overcurrent protection, output overcurrent and short-circuit protection, and overall over-temperature protection.
Technical Specifications:
Input voltage: DC 8-30V. Output voltage: Automatically adjusts between 3.3V and 21V when connected to a compatible Type-C receiving device. Maximum output power: 65W. Output ratings include 5V 3A, 9V 3A, 12V 3A, and 20V 3.25A. Maximum output: 20V 3.25A. Conversion efficiency: 92%~97%. Output voltage ripple: <200mV. No-load current: <3mA. Interface: Type-C USB. Supported protocols: PD3.1 (PPS), QC3.0, and SCP.
Package Contents:

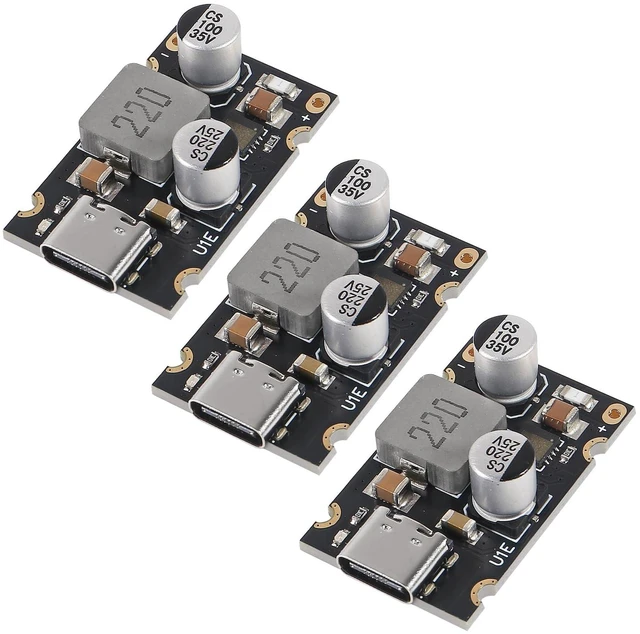

3PCS PD 65W Fast Charging Module with Type-C Interface
Before Purchase:
Confirm that the input power source provides DC 8-30V and that the connected device supports Type-C power reception and the required charging protocol. The input voltage should be higher than the selected output voltage. To trigger 20V fast charging, the input voltage should be higher than 20V.
