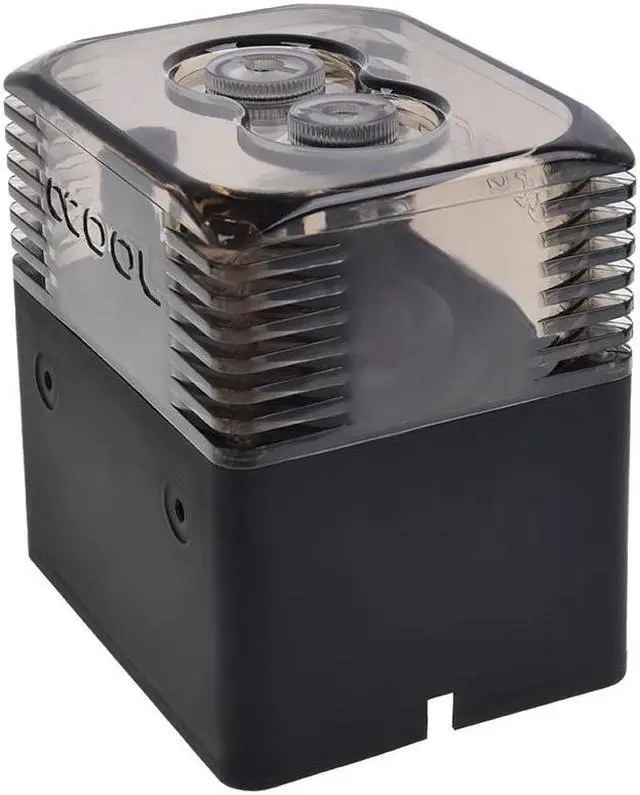

Alphacool Eisstation Reservoir and Eispumpe VPP755 V.3 D5 Pump

With the Alphacool Eisstation, you get a compact reservoir that fits into nearly any case. It comes in three different versions. A DDC, a D5, and a DC-LT version are available.

Connection possibilities

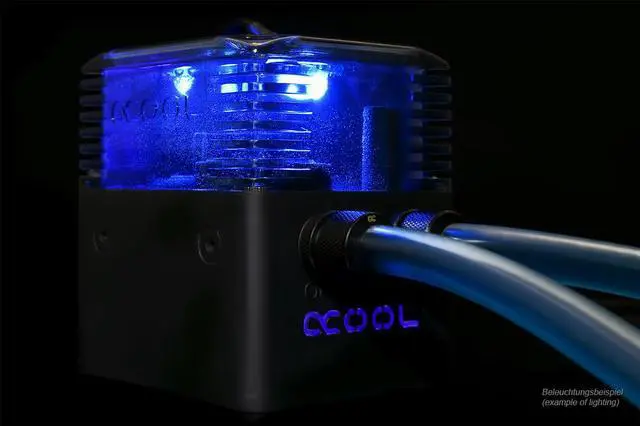

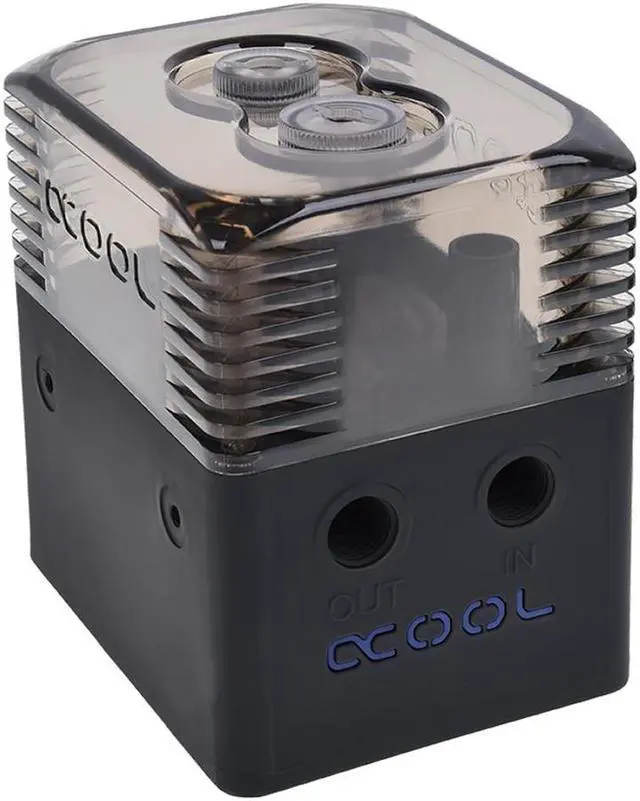

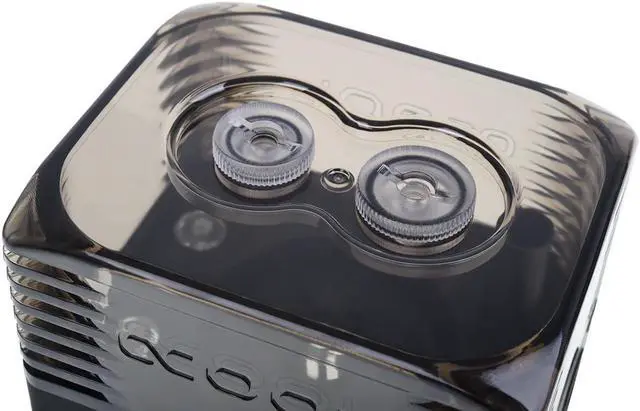

There are four possibilities for connection. An IN and an OUT with G1/4 threads are located on the top, with the illuminated logo. The logo’ s colour can be changed with the optional modding kit. In the cap, there is one G1/4” and one G3/8” connection available. The G3/8” connection, with its larger size, simplifies filling the Eisstation and can also serve as a lighting module for 5mm LEDs. Two additional 5mm LED places can be found in the bottom of the reservoir and illuminate the water-filled portion from below.

Technical Details Eisstation

Dimensions (LxWxH): 102 x 82 x 105mm
Capacity: 250ml
Material: Nylon / PMMA
In / Out: G1/4"
Connections: 3x G1/4" and 1x G3/8"
Power connection LED Logo: 3 Pin
Lighting modules: 4x for 5mm LED's

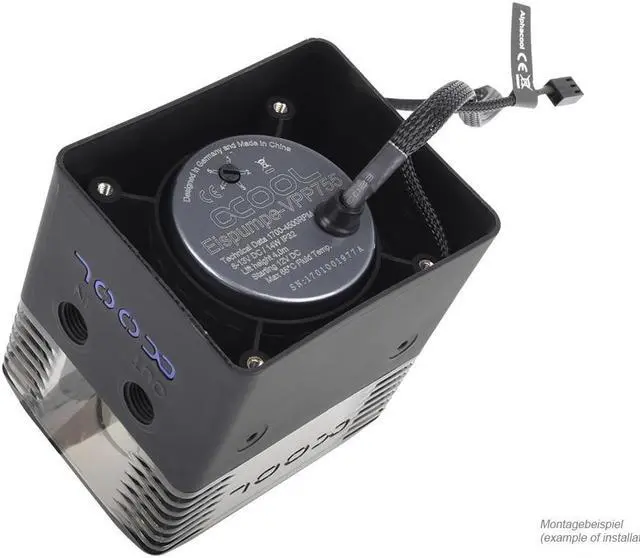

Technical Details Eispumpe VPP755 V. 3

PWM controlled pump
Connection: 4Pin PWM / 4Pin Molex
Start Boost Function
Self-venting
Improved Software
New bearing for the ceramic axis
5 adjustable steps
1. 2100 rpm 120l/h
2. 2700 rpm 140l/h
3. 3330 rpm 280l/h
4. 3950 rpm 320l/h
5. 4350 rpm 340l/h
Maximum Head Pressure: 4.25 m

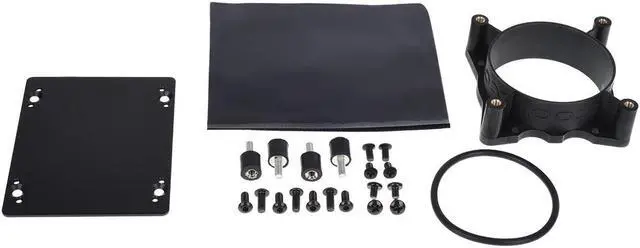

Scope of Delivery

1x Alphacool Eisstation VPP reservoir incl. Alphacool Eispumpe VPP755 V. 3 pump
1x Metal bottom
pump bracket
Mounting screws
4x Decoupling screws
Self-adhesive velcro

Model: 13295
