Alphacool Eisbaer Quick-Connect Extension Kit

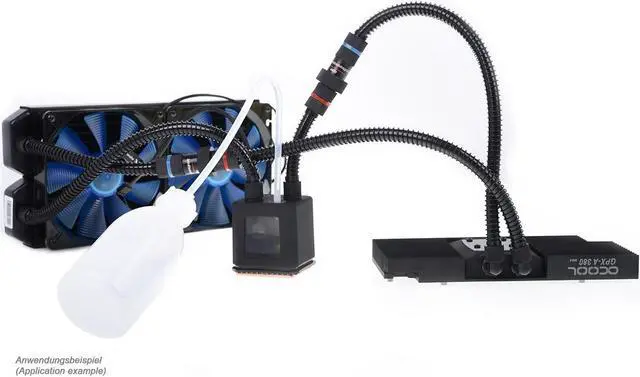

With the “Eisbaer” Quick-Connect Extension Kit, expanding an “Eisbaer” or “Eiswolf” GPX-Pro cooler loop with additional components is simple. For example, it’s easy to add another radiator, an additional cooler or any other components.

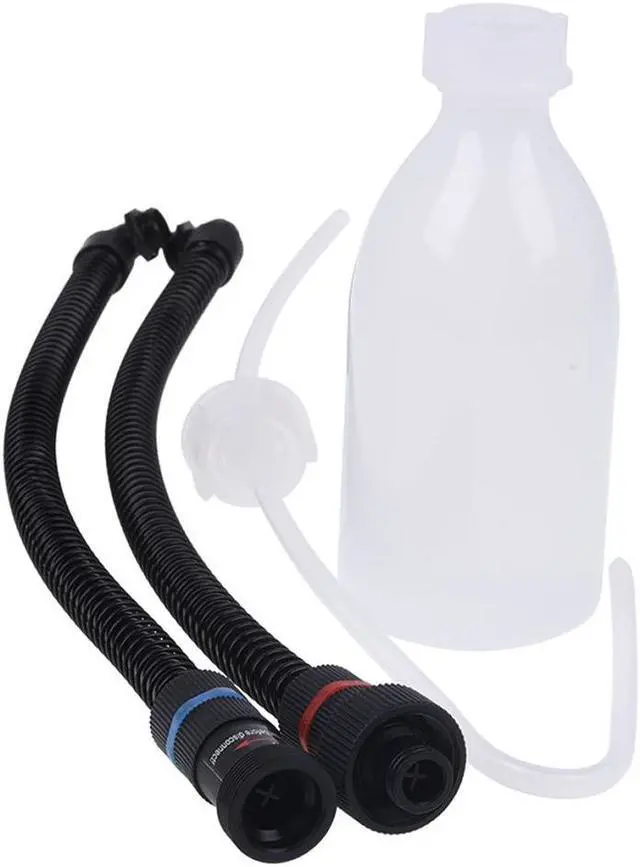

The kit consists of two 32cm-long hoses in 11/8 format, encased in anti-kink springs. This prevents bending in the hoses, and thereby prevents interruptions to the flow of water. Safety is our top priority.

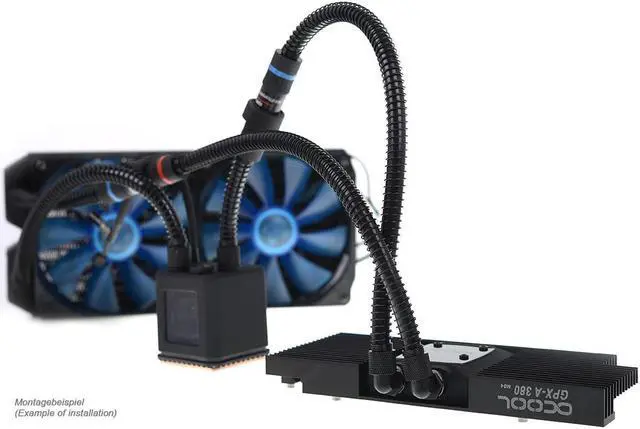

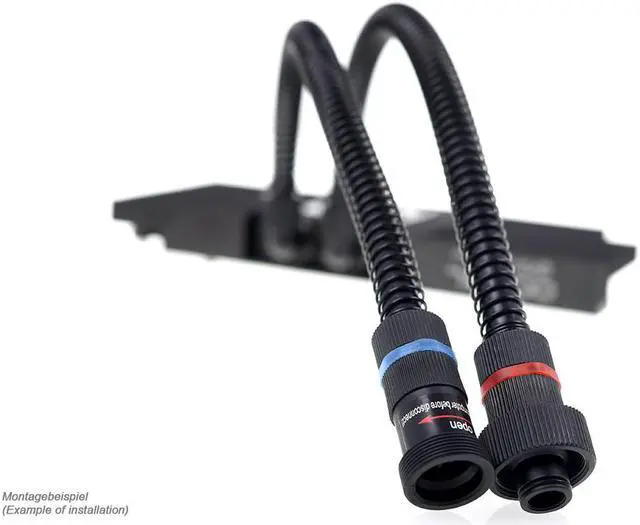

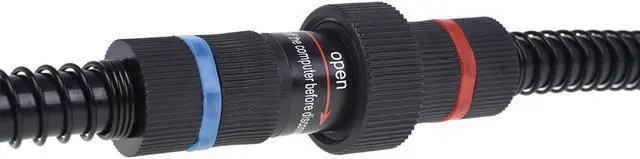

Two ends have 90° angled pieces, pre-installed on the hoses. The only thing you need to do is screw these into the corresponding G1/4” threads. On the other end are the ends of two quick-release safety locks from the Alphacool HF series, just like the ones found on the “Eisbaer” or “Eiswolf”. That means all you have to do is open the quick-release locks on the “Eisbaer” or “Eiswolf” and screw them together with the corresponding parts in this kit and an additional product for extension, and your loop is complete - after it’s been filled, of course. For that, this kit includes a squeeze bottle with 250mL of osmosis filtered water. With the squeeze bottle, the loop can easily be filled at the designated spots.

Technical Details:

tubing length: 32cm
Material Quick Connector: Nylon
Colour: Black
G1/4" Threads
tubing size: 11/8mm
Pre-filled: 250ml osmosis water

KEY_TAB

Notice for expansion:
Please take care not to mix up the IN and OUT ports. On the “Eisbaer”, the “outlet” is marked in “red” and the “inlet” in “blue”. On the components to be connected, it is the opposite. The coupling with the “blue” marking denotes the “outlet” and the coupling with the “red” marking is the “inlet”.
