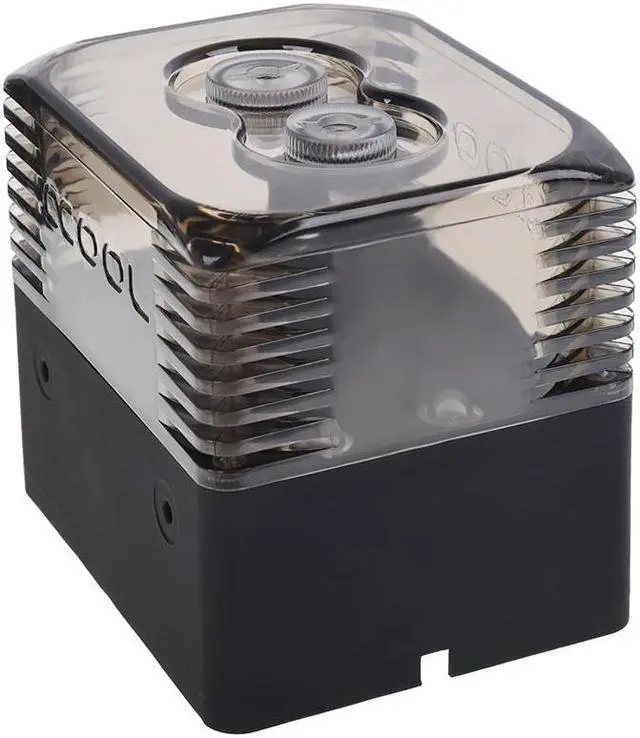

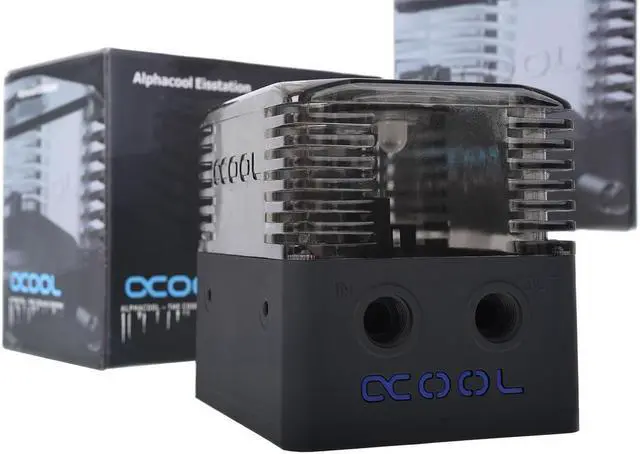

Alphacool Eisstation Reservoir and DC-LT 2600 Ultra pump

Highlights

1. The lid is made of highly stable nylon
2. Three versions for all common pumps
3. Various mounting options
4. Illuminated logo and LED mounting options

mounting options
It is possible to screw the ice station onto a 2.5 “bracket for SSD hard drives. It can also be installed in a 5.25 "bay. In both cases, the screws are attached using the special decoupling screws provided.

Connection

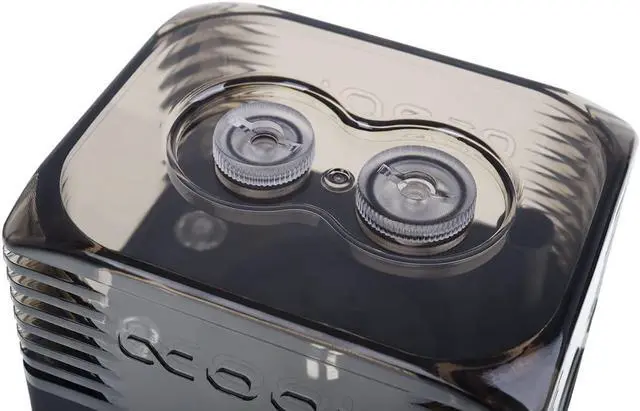

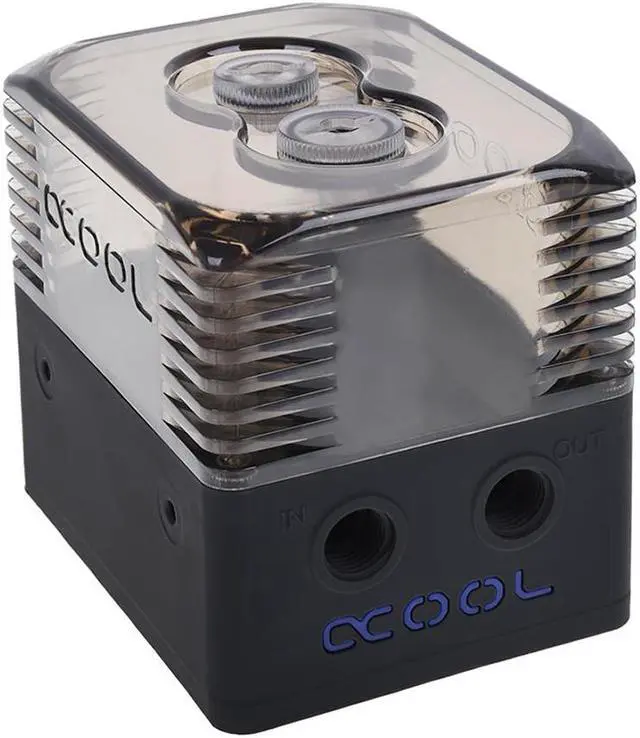

options An IN and OUT with G1 / 4 thread can be found on the head side with the illuminated logo. You can change the color of the logo with the optionally available modding kit. A G1 / 4 "and a G3 / 8" connection are available in the cover.

Technical Details Eisstation

Dimensions (LxWxH): 102 x 82 x 85mm
Capacity: 250ml
Material: Nylon / PMMA
In / Out: G1/4"
Connections: 3x G1/4" and 1x G3/8"
Power connection LED Logo: 3 Pin
Lighting modules: 4x for 5mm LED's
Technical Details DC-LT 2600 Ultra Pump

Dimensions (WxHxD): 51x48x9mm (without fittings)
Standard voltage: 12V DC
Power draw: 4,9W
Permitted voltage: 7-13,5V DC
Pressure head at 12V: 0,6m H2O
Maximum flow rate: approx. 100l/h
Pumped medium: Water, Water/glycol mixture
Maximum system temperature: 65°C
Power connector: 3-Pin fan plug
Weight: 48g

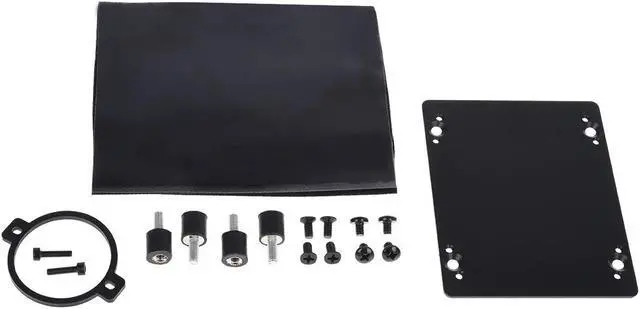

Scope of Delivery

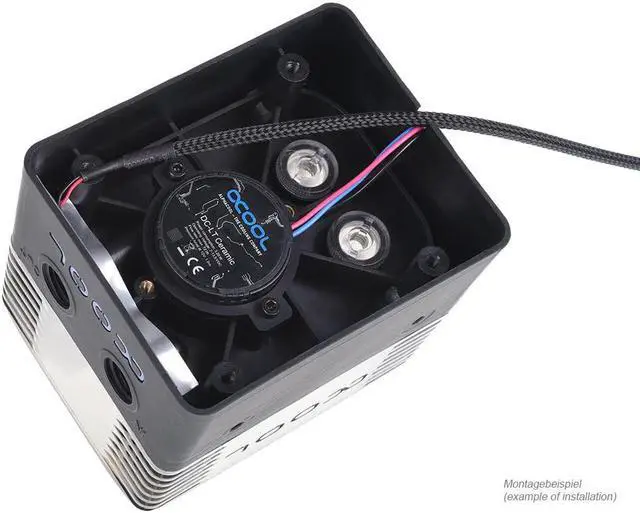

1x Alphacool Eisstation DC-Ultra incl. Alphacool DC-LT 2600 Ultra pump

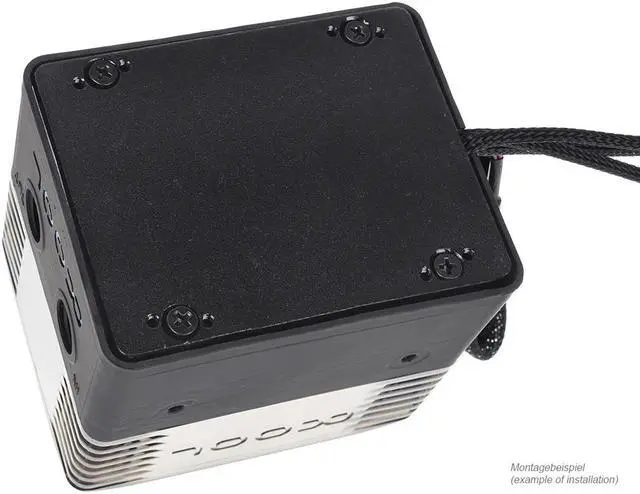

1x Metal bottom
pump bracket
Mounting screws
4x Decoupling screws
Self-adhesive velcro
