Alphacool Core 100 Aurora reservoir D5/VPP Acetal/Acrylic (15393)

The Alphacool Core reservoir combines performance with design. The reservoir tube is made of acrylic, the D5/VPP pump top and lid are made of acetal. The combination of these two materials gives the reservoir a discreet appearance. The wow effect is provided by 12 digitally addressable RGB LEDs in the top of the pump and the light tower water effect inside the acrylic tube.

What's new?
Compared to the previous Eisbecher models, the acrylic tube of the core reservoir has an external thread. This ensures more stability and security when connecting the cover and pump top to the tube. The integrated digital aRGB lighting is also new. 12 digitally addressable RGB LEDs in the top of the pump are included with the Core reservoir and will no longer have to be purchased separately in the future.

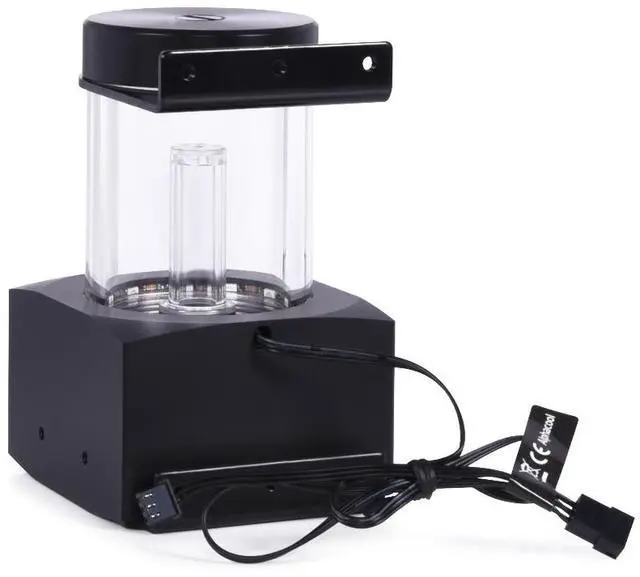

Extensive mounting options Mounting option
1:
The scope of delivery includes feet which, among other things, enable the expansion tank to be mounted on the bottom of the housing.

Mounting option 2:
The scope of delivery includes 120mm/140mm mounting frames with which the core reservoir can be attached to free fan spaces, radiators or to the fans on radiators.

Digitally addressable RGB lighting

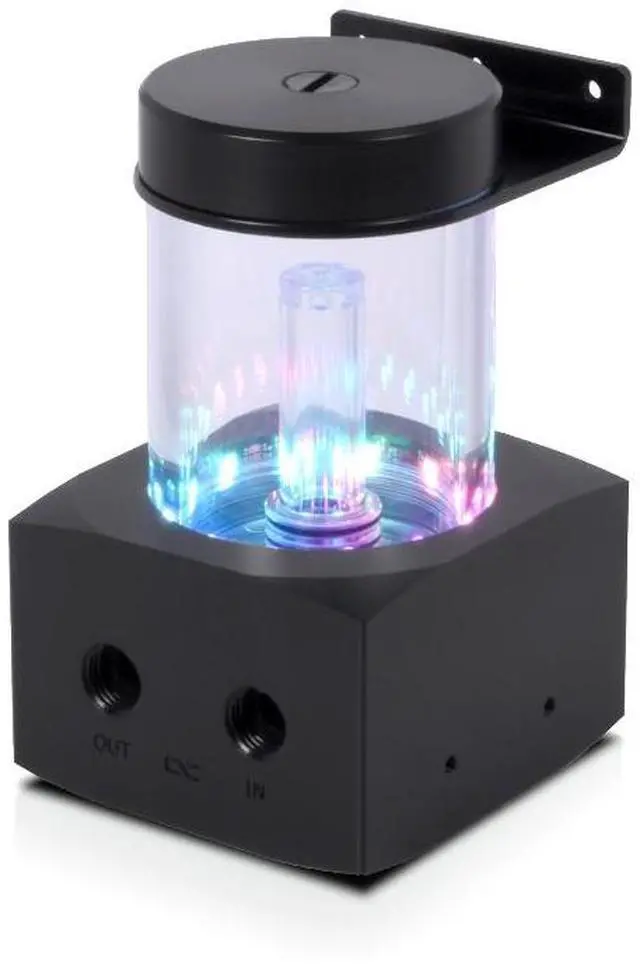

12 digitally addressable RGB LEDs illuminate the reservoir's acrylic tube. They are attached in a ring shape to the lower end of the tube in the transition to the top of the pump and ensure brilliant illumination of the entire reservoir. In combination with the Lighttower water effect, a very special ambience is achieved. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

Lighttower water effect
A special water effect is created in the core reservoir via the riser tubes. If you don't fill the reservoir over the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out the sides of the riser tube and sprayed against the glass tube. Depending on the flow of the circuit, the effect is stronger or weaker. The effect can be placed at the lower or upper inlet using the riser tubes included in the scope of delivery.

pump compatibility

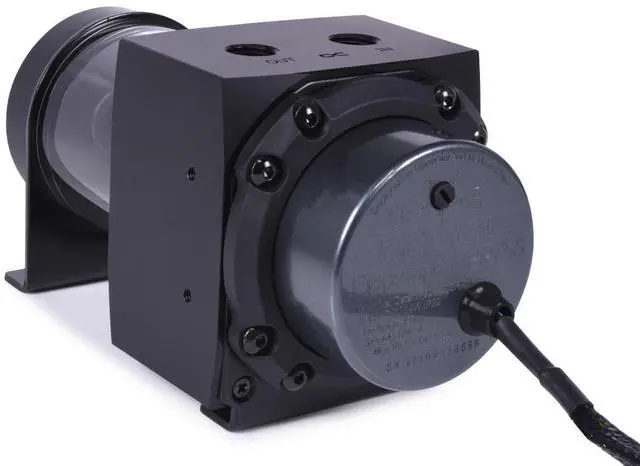

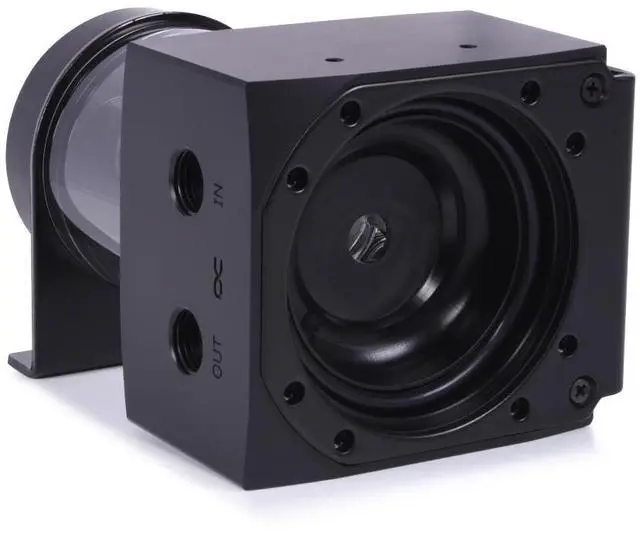

The Alphacool Core reservoir has an integrated pump top and is compatible with all original D5 pumps and all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included.

Technical specifications
L x W x H
131 x 76.5 x 76.5mm
pump compatibility
D5
volume
200ml
Material pump top & lid
acetal
material tube
acrylic
connections
3x G1/4" internal thread
Maximum working temperature
60
Pressure tested
0.8 bars
Number of digital aRGB LEDs
12
Voltage digital aRGB LEDs
5V
Power connection digital aRGB LEDs
3-pin JST (male & female switch)
Weight
504g
color
black

•
