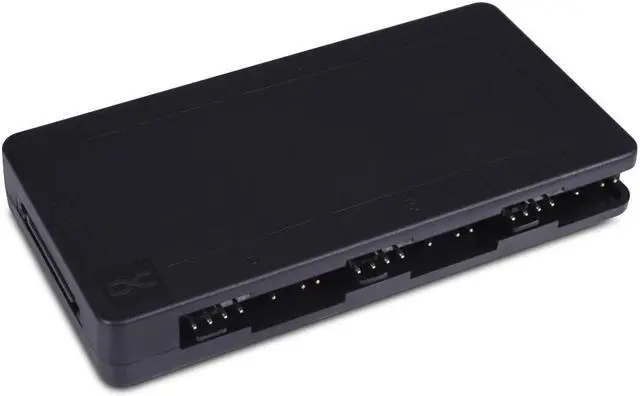

Alphacool Core 6x 4-Pin PWM/DRGB Splitter with SATA Power Connector (25668)

Alphacool's Core PWM/DRGB splitter has six 3-pin ports for controlling digitally addressable RGB elements and six 4-pin ports for controlling fans via PWM. The splitter can be connected via aRGB and PWM mainboard cable (included), each via an internal header on the mainboard. A maximum of 6 aRGB illuminated fans with a total power consumption of 22.5W ( 4.5A ) can be connected to the controller and thus sufficiently supplied with power. Power is supplied via the SATA cable of the PC power supply. The speed of the connected fans and their aRGB settings will be controlled by the master fan (M1 port).

Includes self-adhesive Velcro tape that allows the Core PWM/DRGB Splitter to be positioned anywhere in the case.
Y-Cable Design: Side
One: 1x 4Pin Molex, 1x 4Pin
PWMSide Two: 8x 4Pin PWMTechnical DataDimensions (L x W x H) 95.92 x 49.91 x 14mmPower Supplyvia SATA Power ConnectorThreads6x 4-Pin PWM | 6x 3-Pin aRGB (5V) | 1x SATA (5V) | 1x 2-Pin (Splitter IN) Maximum Power Consumption 22.5W ( 4.5A )
