Alphacool ES 2U Reservoir VPP/D5 with Flow/Temperature Sensor (13741)

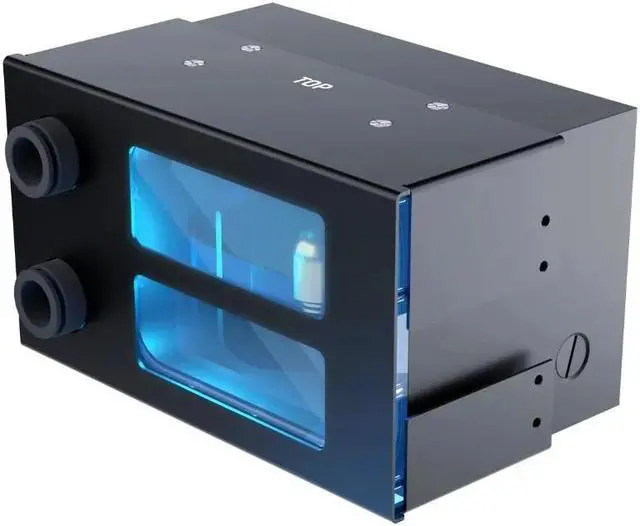

The Alphacool ES 2U Reservoir is a versatile reservoir optimized for use in 2U server cases. The quick-release fasteners on the front ensure quick and easy maintenance. The cooling system can be continuously monitored using the integrated flow and temperature sensors. The illuminated window makes the fill level easy to read at any time. Optimized for serversThe Alphacool All-in-One reservoir has been specially developed for 2U server cases. The device has a compact design to take up as little space as possible in the server case. Due to the quick-release fasteners on the front, the cooling system can be filled and vented quickly and easily.

The illuminated window makes it possible to check the fill level in the system at any time. The Alphacool ES 2U reservoir is compatible with pumps using D5 format such as the Alphacool VPP Apex. Integrated sensorsThe reservoir has a temperature sensor that covers a measuring range of -40 to 125°C and is connected to the mainboard via a 2-pin connector. In addition, a flow sensor, which is connected via a 3-pin connector, enables continuous monitoring of the water flow in the cooling system. Technical dataDimensions (L x W x H) (without pump) 99.66 x 146.00 x 83.90 mmMaterialMetal, acetalWeight1500gThreads (front side) 2x quick-release fastener G1/4” Threads (rear side) 1x G1/4" In | 1x G1/4" OutConnection flow sensor3PinConnection temperature sensor2PinConnection aRGB3-Pin 5VPump compatibilityD5/VPPMax working temperature60 °CPressure tested 0.8 barColorblack
