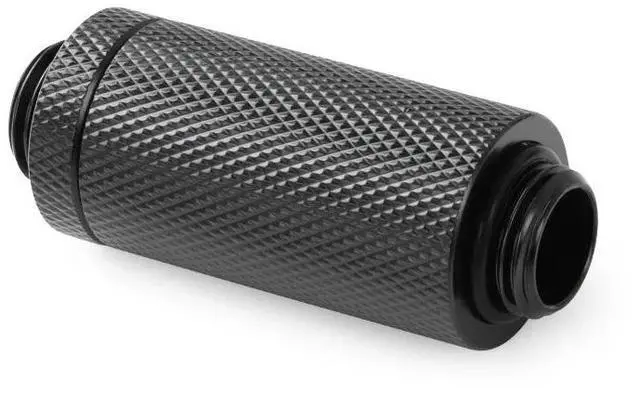

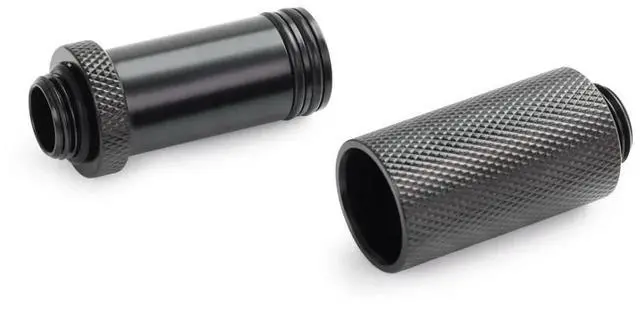

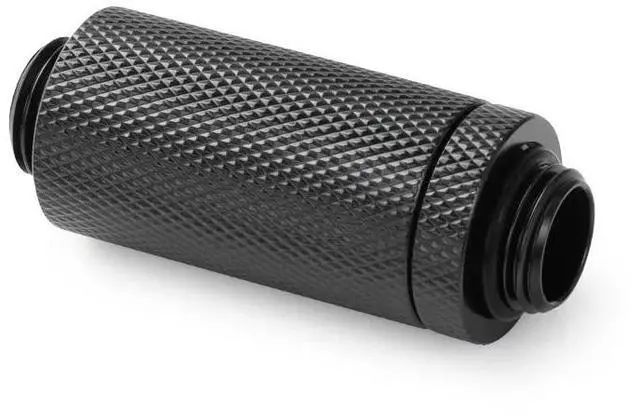

Alphacool ES D-Plug 41-69mm G1/4 Male to G1/4 Male - Deep Black (17650)

The ES D-Plug from Alphacool's ENTERPRISE SOLUTIONS series, featuring two G1/4" male threads, is used to easily connect components such as GPU or CPU coolers and radiators within a water circuit.

Unlike conventional double nipples or adapters, the ES D-Plug is plugged in rather than screwed in. Two closely spaced O-rings on the male side ensure the necessary stability and tightness. Extensive tests in the Alphacool laboratory confirm reliable sealing up to a pressure of 1.5 bar.

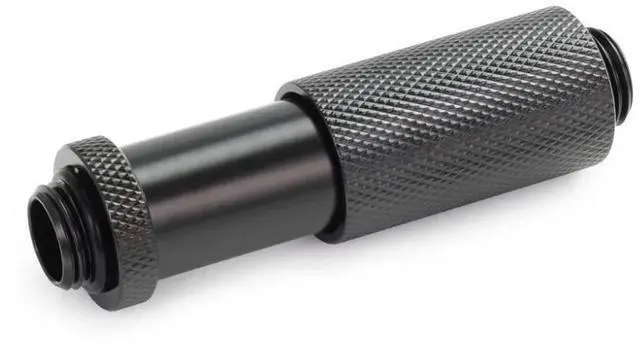

The ES D-Plug allows water cooling components to be connected quickly and easily. The plug-in connection enables particularly simple installation or rapid replacement. The 41-69 mm model offers a variable length: It can be continuously extended, allowing for a flexible extension of up to 28 mm. This compensates for inaccuracies in the system design, even in tight installation situations.

This ES D-Plug is available in the 41-69 mm version and comes in elegant Deep Black. Included are replacement O-rings in three different colors, which not only provide functionality but also add visual accents to the system.

Instructions for use:
For a secure seal, both O-rings of the male component must be fully seated in the female component. The maximum pressure of 1.5 bar can only be guaranteed if the plugs are used on permanently mounted components.

Technical data
material
Brass
Color
Black
length
41 mm
Maximum extension
69 mm
diameter
20 mm
thread
G1/4" AG
Thread length (including O-ring)
5 mm
Weight
54 g
Pressure tested
1.5 bar
