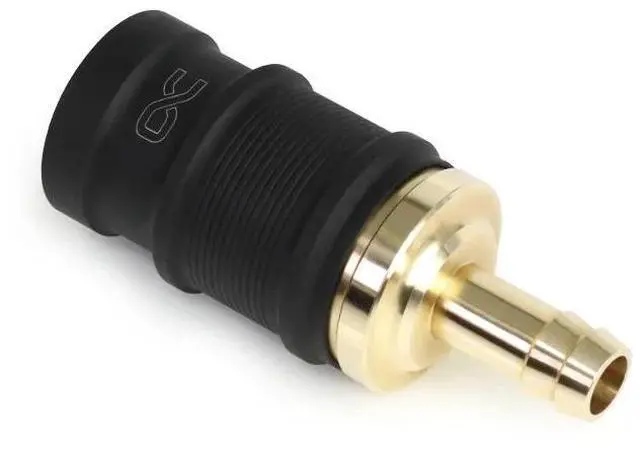

Alphacool ES Quick Release BLH1A PushIn Female with Barbed Fitting for 12.7/7.6mm (14638)

Unlike many conventional quick couplings, this model has been fundamentally optimized to minimize flow resistance. The internal geometry and tight production tolerances ensure a consistent and efficient coolant flow. Alphacool's ES quick-release system allows for fast and uncomplicated integration into complex cooling circuits. The outer ring is simply pulled back to separate the connection — the integrated seal automatically closes to prevent coolant leakage.
Reconnection is just as straightforward: push the two parts together until a distinct click confirms a secure lock. This version features a PushIn connection with an integrated barbed fitting, designed specifically for 12.7 mm outer diameter and 7.6 mm inner diameter tubing. This ensures a tight and reliable fit for a wide range of industrial and professional applications.
Important note: This product includes only one half of the quick-release connector — either the male or female version. A complete connection requires the matching counterpart. To prevent damage to the O-ring, the quick coupling should not be opened or closed when dry.
Technical dataType: Low
Flow Rate CouplingDimensions: 67, 77 mm x 54, 8
mmNominal diameter: 7.0
mmConnection type: barbed fitting for tube with 7.6 mm inner diameterLocking mechanism: Locked by
Ball & SleeveFlow rate (l/h): 110 l/h (item 14638
& 14637)Flow loss rate (%): 10, 9 % (item 14638
& 14637)Body material: brass (CuZn39Pb3)
Seal material: EPDM
Shore A 70Spring material: stainless steel (X5CrNi18-10)Material sleeve (locking mechanism): aluminium (AlMg1SiCu)
Working pressure: 2barBurst
pressure: 8barWorking
temperature: -20â „ ƒ ~ +100â „ ƒ
Recommended liquids: water, deionized water, glycol water, propanediol water etc.
Additional: non-spill, single
handed operationWeight: 97g
