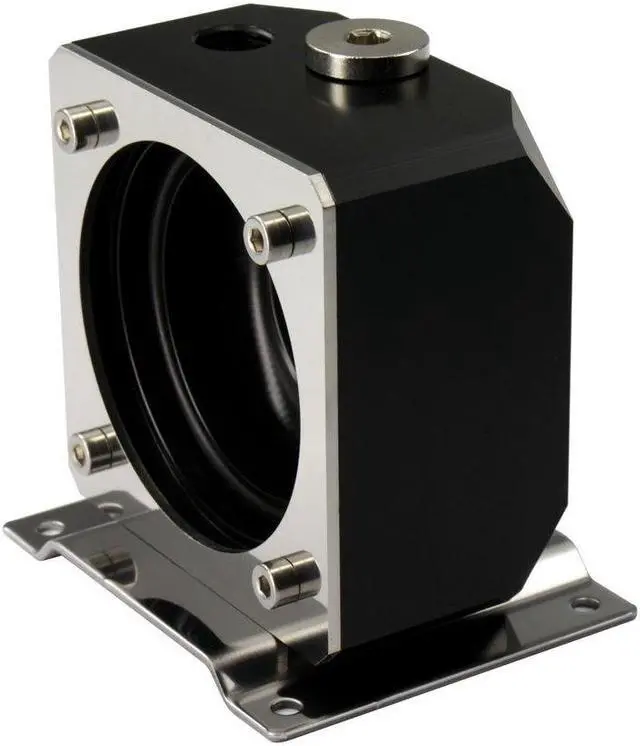

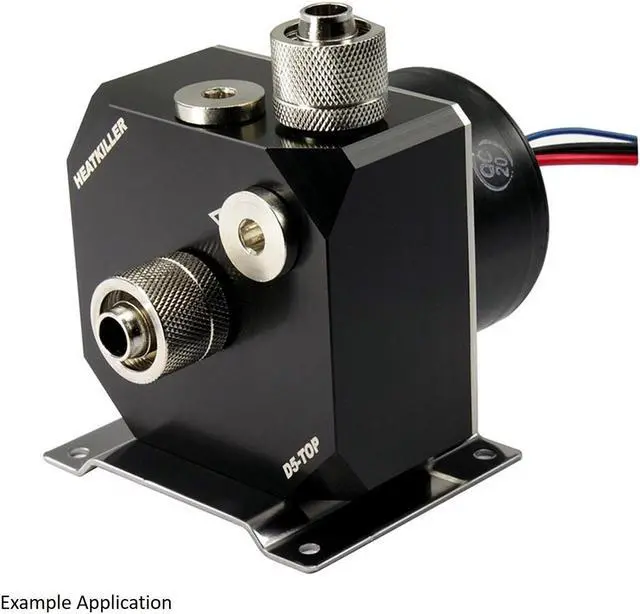

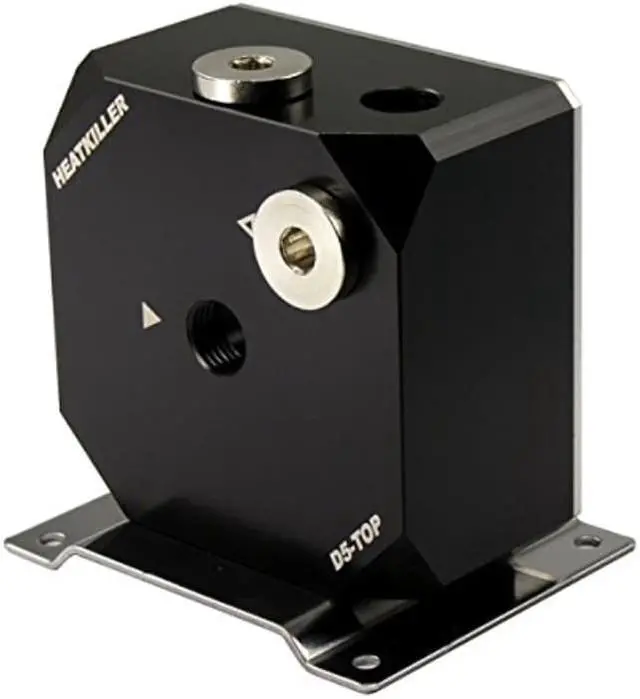

Watercool HEATKILLER D5 Top

The HEATKILLER® D5-TOP is the perfect add-on for D5 pumps. Four G ¼“ threads allow for easy integration into the cooling loop with all common fittings. Non-used threads can be sealed with the included plugs.

Hydro-dynamically optimised channels make the pump work more efficient than with the original top.

A stainless steel mounting plate is included. This can be installed with a 90° variation as well, which makes mounting easy even in narrow PC cases. Alternatively, the plate can serve as a supporting base. A decoupling component made from rubber is separately available.

As for material, we use high-quality POM and manufacture the plates from polished stainless steel.

Specifications:
Dimensions block (without pump): 74 x 74 x 42 mm
Dimensions with base (without pump): 80 x 80 x 65 mm
Material: POM, polishes stainless steel
Weight: 350g
Threads: 4 x G1/4“

Compatible with:

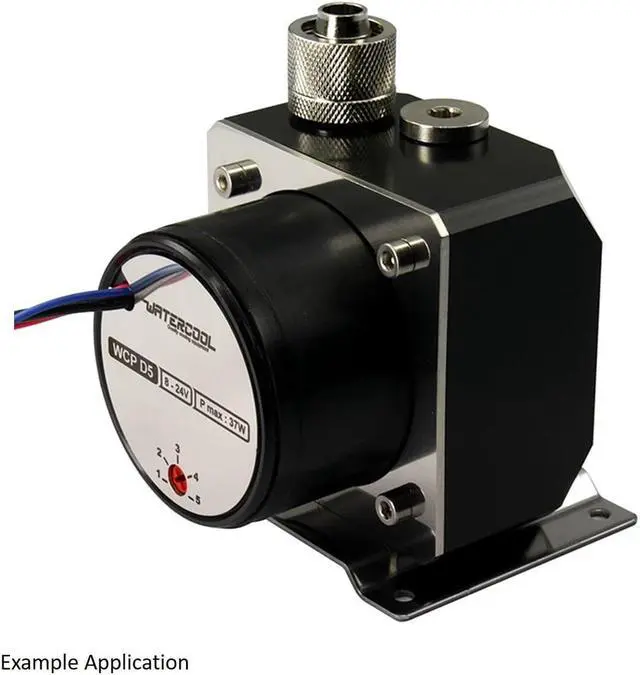

Watercool: WCP D5-PWM, WCP D5
Alphacool: TPP 644, VPP655, VPP655 PWM
Aquacomputer: D5, D5 PWM
EKWB: EK-D5 Vario, EK-D5 PWM
Koolance: PMP-450, PMP-450S
Swiftech: MCP655, MCP655-B
XS-PC: D5 Vario, D5 PWM
Laing / Xylem / Lowara: D5 pumps

Included:
1x HEATKILLER® D5-TOP

Please note: Pump and fittings are not included.
