PrimoChill 360SL (30mm) EXIMO Modular Radiator, White POM, 3x120mm, Triple Fan (R-SL-W36) Available in 20+ Colors, Assembled in USA and Custom Watercooling Loop Ready

PrimoChill, renowned for its innovative approach, has elevated its popular Eximo SX radiators to a new level with the introduction of the SL (30mm) Eximo Modular Radiator. The SL Eximo Modular introduces a new range of colors to ensure perfect color coordination in water-cooling setups featuring PrimoChill products. This facilitates seamless matching between your radiator, fittings, reservoir, pump, and CPU block, resulting in visually stunning outcomes. Each radiator undergoes a thorough powder-coating process to guarantee a long-lasting finish.

The internal core is designed with seven dual-pass coolant channels made of copper, which ensures efficient system flow and effective cooling. The layout of an all-copper fin is precisely engineered to maximize performance without needing high-speed fans, thus maintaining the Eximo's top-tier cooling performance. The newly designed inlet tank features a total of four ports (two inlets and two outlets), providing users with the flexibility to connect coolant lines from either a horizontal or vertical direction. The slim end plate reduces the radiator's total length and makes installation easier in space-confined computer cases. You can remove both tanks to gain direct access to the inner core. This allows you to perform maintenance and cleaning on the core when replacing coolants or rebuilding your loop.

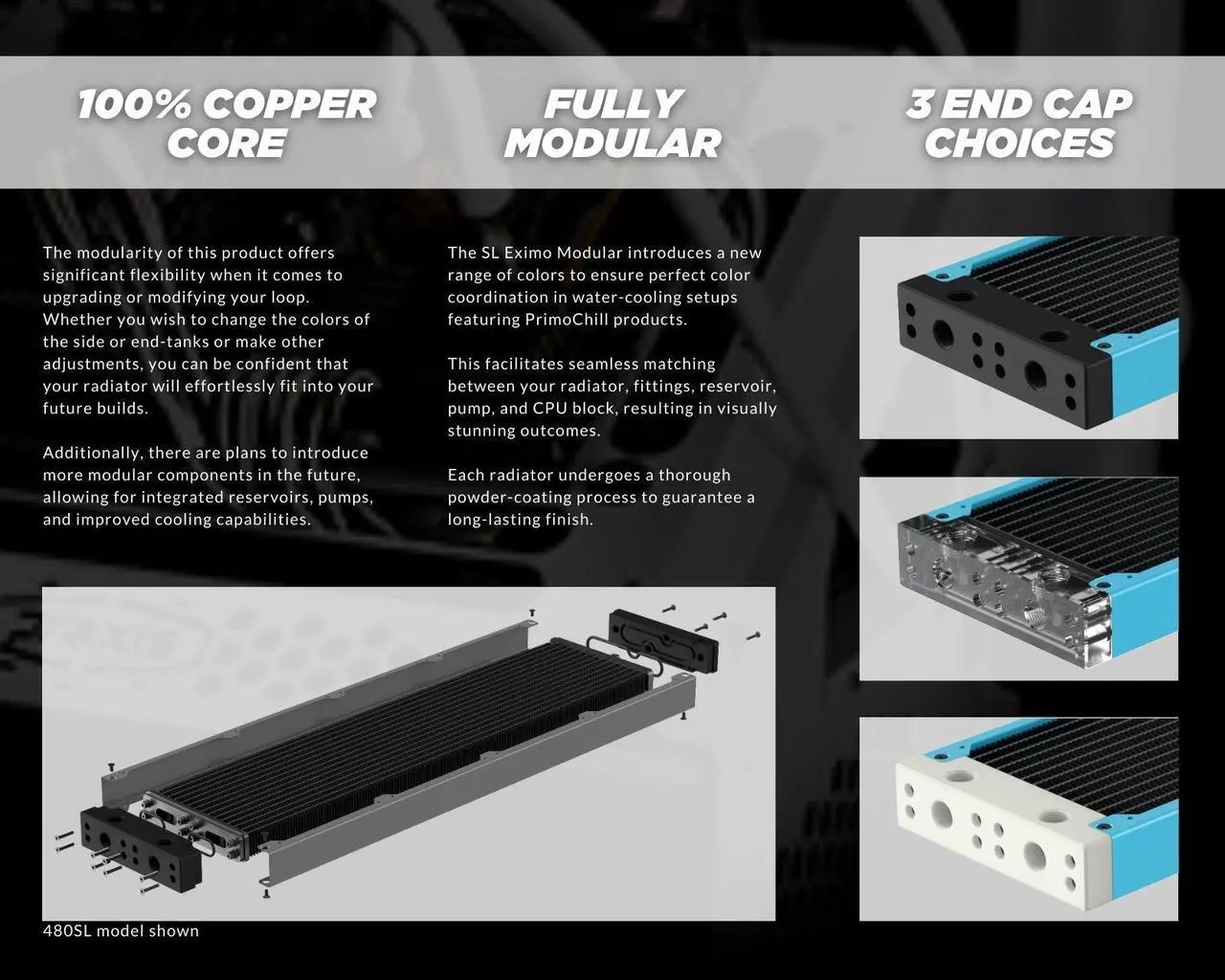

The modularity of this product offers significant flexibility when it comes to upgrading or modifying your loop. Whether you wish to change the colors of the side or end-tanks or make other adjustments, you can be confident that your radiator will effortlessly fit into your future builds. Additionally, there are plans to introduce more modular components in the future, allowing for integrated reservoirs, pumps, and improved cooling capabilities.

• Horizontal or Vertical 2 Inlet / 2 Outlet Port Direction
• All-Copper internal configuration
• 7x Dual pass coolant lanes for unparalleled system flow (High Coolant Flow)
• Optimized fin/tube layout for low RPM fans
• Full modularity for easy expansion and enhanced capabilities
• Available in SX Colors for perfect color coordination

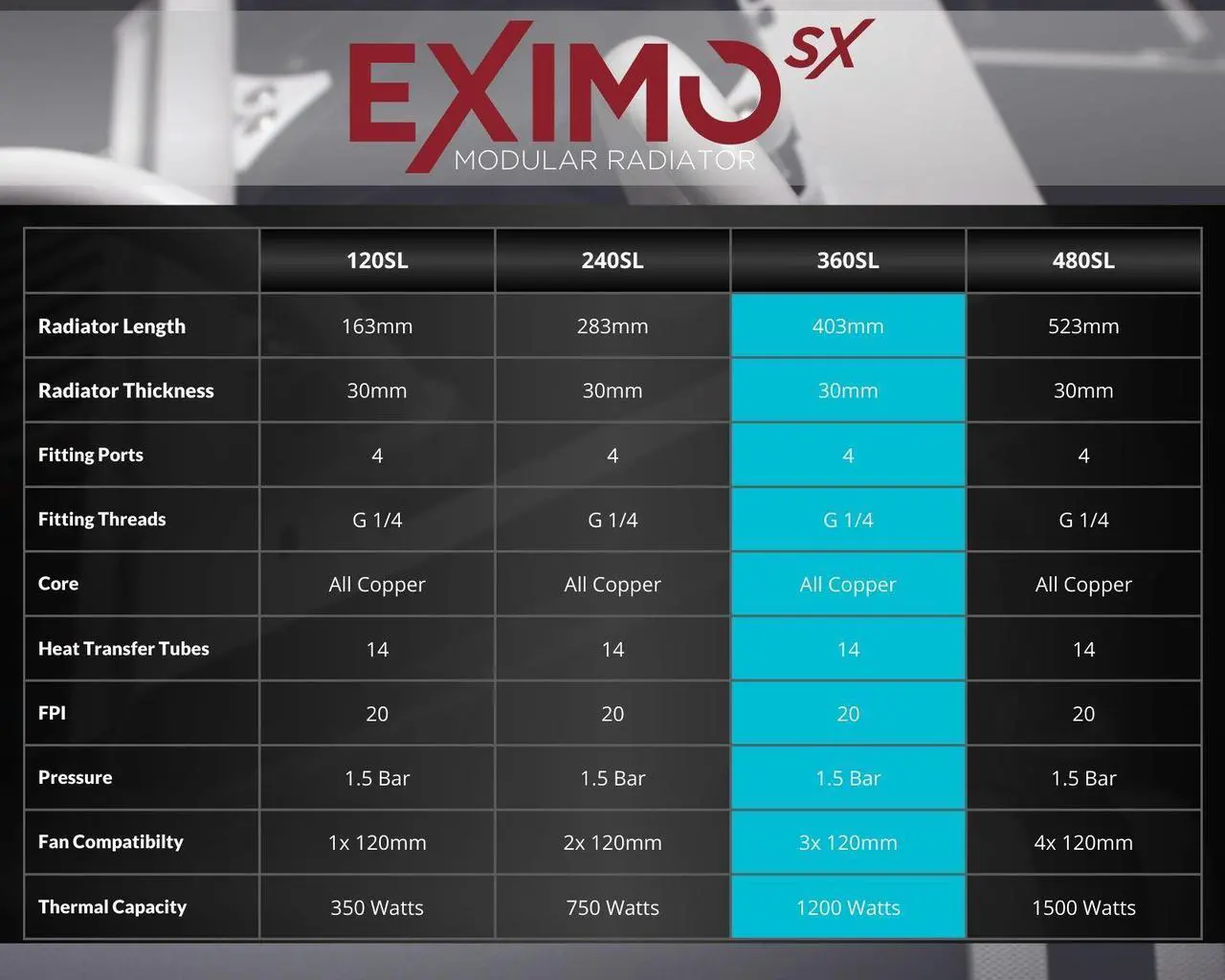

• Fitting Ports: 2 Inlet / 2 Outlet
• Fitting Thread: G1/4
• Fan Mount Spacing: 15mm
• Fan Mount Thread: M3
• Compatible Fan: 120mm x 3 (x6 Push/Pull)
• Materials: Copper Core / Stainless Steel / POM or PMMA
• Pressure:1.5 bar
• Overall Dimensions: 403mm x120mm x 30mm
• Heat Transfer Tubes: 14 (All-Copper)
• FPI: 10-12
• Warranty: 1 year

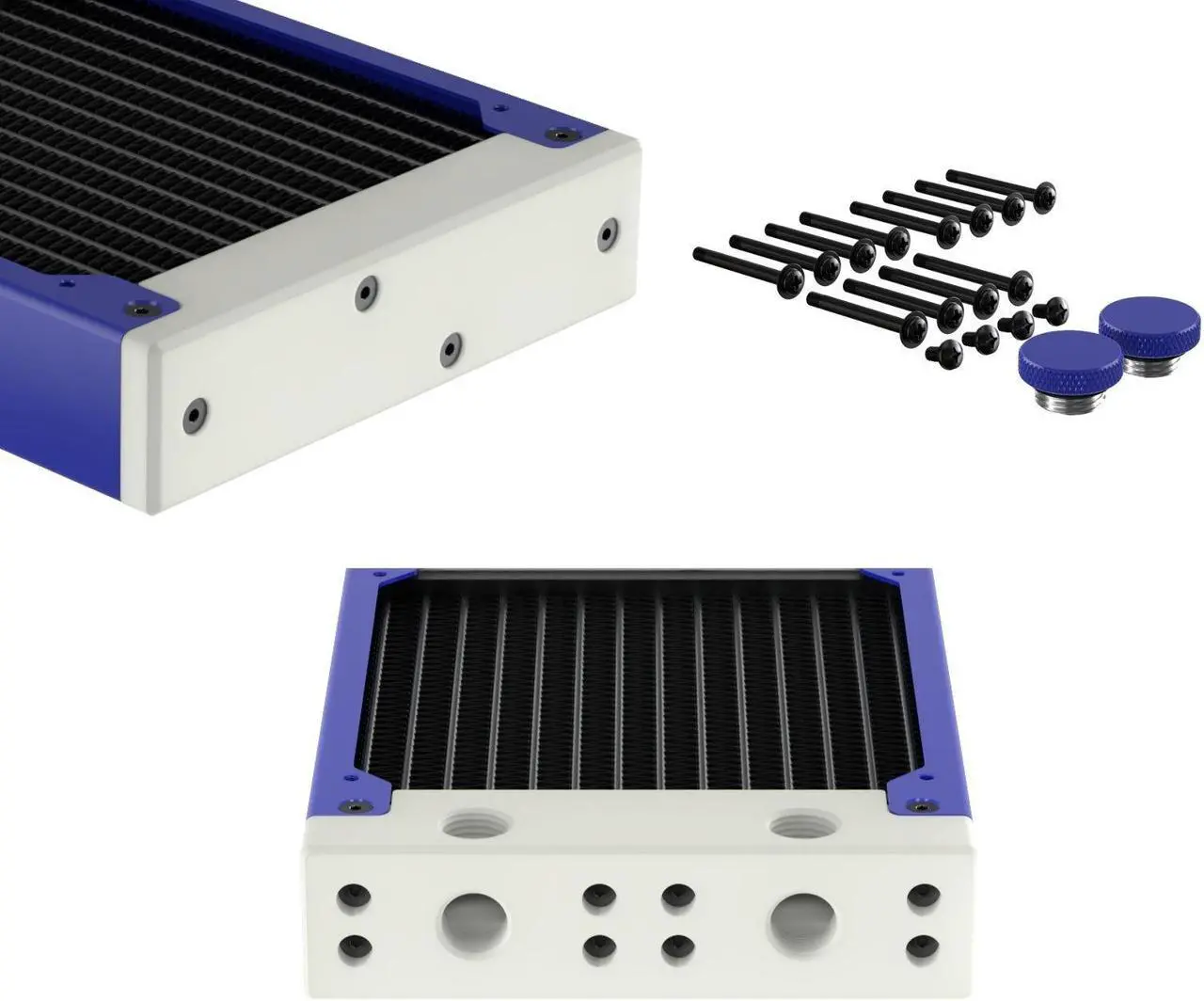

• 1x 360SL (30mm) EXIMO Modular Radiator
• 12x Screws Long (30mm)
• 4x Screws Short (5mm)
• 2x Color Matched Stop Plugs


Warnings

Your Eximo radiator comes with mounting hardware included. Using any other mounting hardware could lead to damage and leaks, which would void your warranty. Be sure to double-check the screw length before installation to prevent puncturing the radiator's fluid channels.

The final appearance of SX finishes, particularly Candy and UV Colors, may vary in shade depending on the surfaces and materials. For instance, knurled surfaces may appear darker compared to smooth surfaces.

This product is designed for self-installation. The manufacturer is not liable for any damages resulting from misuse, including, but not limited to, improper installation or the use of incompatible hardware or fluids. By using this product, you accept all related risks.
