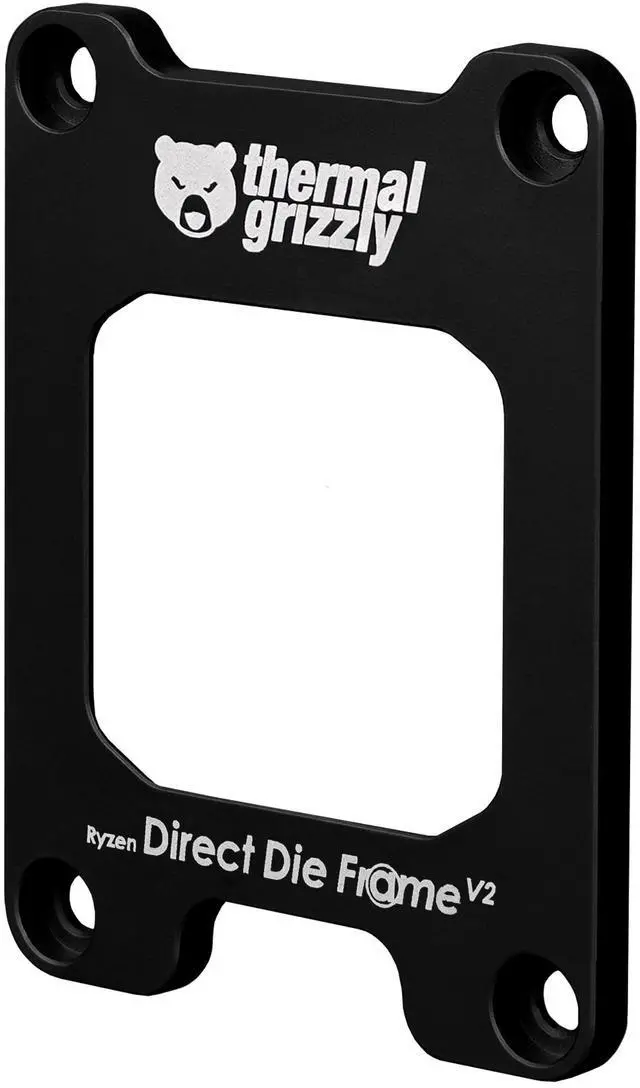

Thermal Grizzly Ryzen 7000 Direct Die Frame V2 (TG-DDF-R7000-V2)

The Ryzen 7000 Direct Die Frame V2 is a CPU mounting frame for mounting CPUs without the integrated heatspreader. The V2 variant of the AMD Ryzen 7000 Direct Die Frame offers increased compatibility with AM5 CPUs, in particular the Ryzen 7000X3D processors. We strongly advise you to follow all the instructions below! PRODUCT INFORMATION "DIRECT DIE FRAME V2"TheRyzen Direct Die Frame V2 (DDFV2) is a CPU mounting frame designed specifically for the AMD 7000 series X3D processors, but retains compatibility with non-X3D CPUs. It should be noted that the DDFV2 is not compatible with the Ryzen 8000G processors.

It is compatible with both the normal Ryzen 7000 processors and the X3D CPUs, so that these can be mounted with this direct die frame without the integrated heatspreader and without the Socket Actuation Mechanism (SAM). The changes to theRyzen Direct Die Frame V2compared to the AMD Ryzen 7000 Direct Die Frame were necessary after AMD subsequently added additional bonding points on the X3D CPUs. Compatible with AMD Ryzen 7000 & 7000X3DEnables mounting of delidded Ryzen CPUsReplaces Socket Actuation Mechanism (SAM) Easy mountingAnodized aluminumCompatibility
Note: The Ryzen 7000 Direct Die Frame V2 is NOT COMPATIBLE with the APUs of the Ryzen 8000G series as well as the CPUs of the Ryzen 9000 series, including the X3D variants. (as of March 2025)
Attention: Removing the heatspreader (“ delidding” ) of a processor is at your own risk! The manufacturer's warranty expires when the CPU is delidded! Damage caused by delidding the CPU is not covered by the manufacturer's warranty! Removing the Socket Actuation Mechanism (SAM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!
Color:
blackMaterial: AluminumSocket
manufacturer: AMD
Socket type: AM5
