Thermal Grizzly AM5 Mycro Pro RGB CPU Waterblock (TG-MY-P-RGB-AMD-AM5)

Thermal Grizzlys AM5 Mycro Pro RGB is a CPU water block for AMDs AM5 socket that is backward compatible with the AM4 socket. The cooler consists of a nickel-plated copper cold plate, a cooler plate made of tempered acrylic glass, a jet plate for flow optimization, and a cover made of anodized aluminum. The G1/4" threads ensure compatibility with a wide range of water-cooling products, such as the Thermal Grizzly DeltaMate fittings.

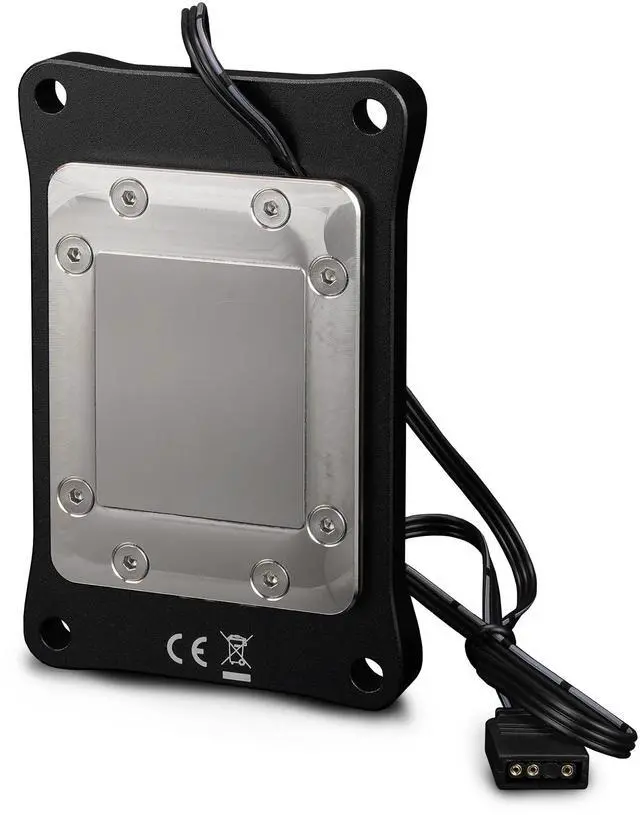

Ultra High Performance Cold Plate

Thermal Grizzlys Ultra High Performance cold plates for CPU and GPU coolers are milled with minimal and highly optimized slot and fin widths. In the case of the AM5 Mycro Pro RGB, both the slot and fin width on the nickel-plated copper cooling plate measure 0.2 mm. A total of 68 microfins are located on the cold plate of the CPU water block. This high number of thin fins provides a very large surface area, allowing the coolant to dissipate heat quickly and efficiently. The cooler design milled into the acrylic glass, including a jet plate, is optimized for flow and delivers outstanding cooling performance in combination with the highly optimized cooling fins.

Properties

• High-performance CPU water block for AMD AM5 socket


• Fine-Mesh Filter at the Inlet Port


• Nickel-plated copper cold plate with ultra-high-performance microfins (0.2 mm)


• Metal housing with RGB-illuminated viewing window and internal layout


• Inlet and outlet ports with standard G1/4" threads


• Compatibility list available online

Integrated filter for consistently high cooling performance

The integrated filter captures particles present in the water-cooling loop. These may include production residues, for example from radiators. To prevent the microfins in the copper cooler from becoming clogged, these particles are filtered out directly at the inlet port. Contamination of the microfins can impair the flow of the coolant and thereby reduce cooling performance. This may result in higher CPU temperatures. The filter helps delay this effect and can be cleaned if necessary.

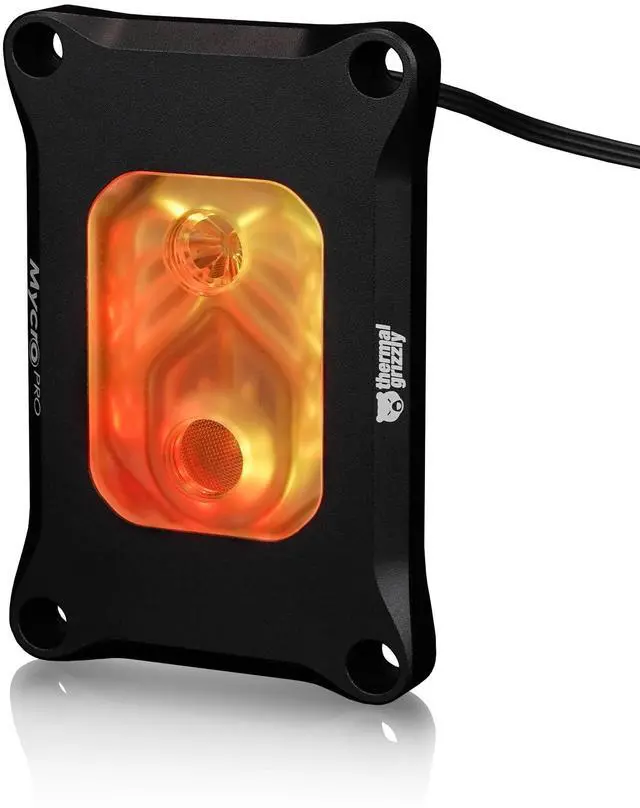

Ports and RGB Lighting

The AM5 Mycro Pro RGB is integrated into a custom water-cooling loop via one inlet and one outlet, each featuring G1/4-inch threads in the acrylic glass. A fine-mesh filter in the form of a sieve is located at the inlet port. After milling, the acrylic glass undergoes an annealing process that relieves internal stresses, reducing the risk of stress cracks over long periods of use. Beneath the cover is RGB LED lighting that accentuates the clean design when illumination is desired. The RGB LEDs can be controlled via a 3-pin ARGB header (+5V/DATA/GND) through the motherboard. The sealing rings used (O-rings) are made of highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation.
