box contains

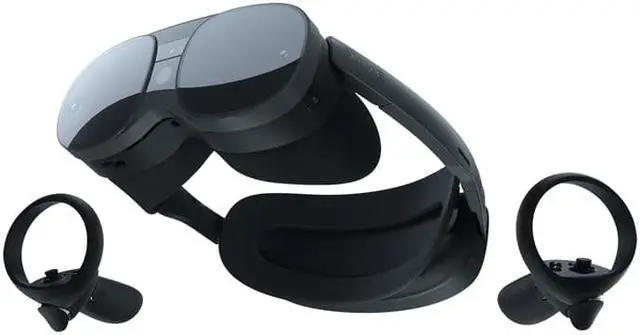

VIVE XR Head Mounted Display
controller (left)
controller (right)
Lanyard x 2
microfiber cloth storage
headband
USB-C to USB-C transmission cable
USB-A to USB-C cable x 2
lens protection card
Documentation (Quick Install Guide/Safety Guide/Warranty)

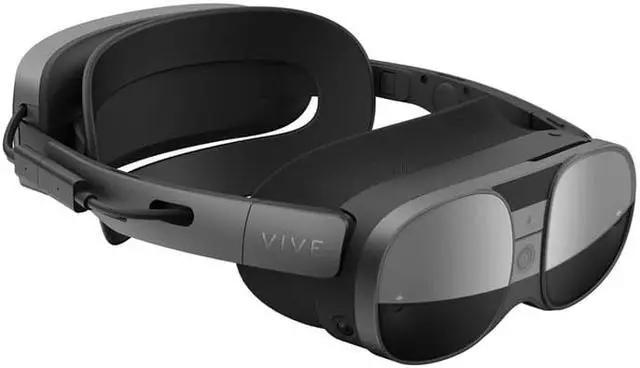

Head Mounted Display
Specifications
|Key Features
1. Ingenious and exquisite design, and flexible and changeable new XR gameplay. It is not only a powerful XR all-in-one machine, but also can be quickly transformed into a portable and portable immersive
glasses.
2. Lightweight but with powerful image performance, as well as high-resolution and vivid see-through mode.
3. According to the eyesight of different players, the focus dial can be adjusted to easily find the clearest and sharpest field of view.
|Resolution
1, 920*1, 920 pixels per eye (3, 840*1, 920 for both eyes)
|Head Mounted Display Tracking Technology
6DoF inside-out tracking technology
|Screen refresh rate
90Hz
|Vision
Wide to 110 degrees
|Sound effect device
Dual microphones with echo cancellation
built-in speaker
|Input device
Dual integrated microphones
volume button
Head Mounted Display Button
|Processor
Qualcomm® Snapdragon XR2
|Storage capacity and memory
128 GB / 12 GB
|Device port
USB 3.2 Gen-1 Type-C port x 2
USB 3.2 Gen-1 Type-C charging port x 1
Bluetooth 5.2 + Bluetooth Low Energy
Wi-Fi 6 + 6E 1
1. Wi-Fi 6E support varies by country or region. For related information, please refer to the official website link
|Sensor
4 tracking cameras
16 MP RGB camera
depth sensor
gravity sensor
Gyro Sensor
proximity sensor
|Ergonomic design
The monitor adopts a balanced weight design, suitable for long-term wear
Built-in curved surface battery module behind the display, balancing front and rear weights
Magnetic front pad for easy cleaning
Adjustable interpupillary distance from 57mm to 73mm, more comfortable for both eyes
|Battery
Removable and swappable battery with 26.6W h storage capacity
Li-polymer battery, lightweight and fast-charging
Ergonomic curve design
|Microphone
Dual integrated microphones
|Pupillary center distance
Adjustable interpupillary distance from 57mm to 73mm
|Tracking range setting requirements
Supports inside-out tracking
Expandable to 10m x 10m large-scale play space
Controller
Specifications
|Sensor
Hall sensor (trigger and grip button)
Capacitive sensors (trigger, joystick and thumb rest area)
gravity sensor
Gyro Sensor
|Input device
Ergonomic grip buttons
Analog trigger button
AB/XY buttons
System / Menu Button
joystick
|Battery
Built-in rechargeable battery pack (USB-C charging) with up to 15 hours of battery life
*Battery may vary based on network, signal strength, feature configuration, app usage and many other factors. Battery life and charge cycles vary with use
Tracking Range Setting Requirements
|Standing/sitting
Can stand and sit
|ROOM-SCALE
Maximum suggested play space of 10m x 10m
Minimum 1.5 m x 1.5 m play space (standing)
