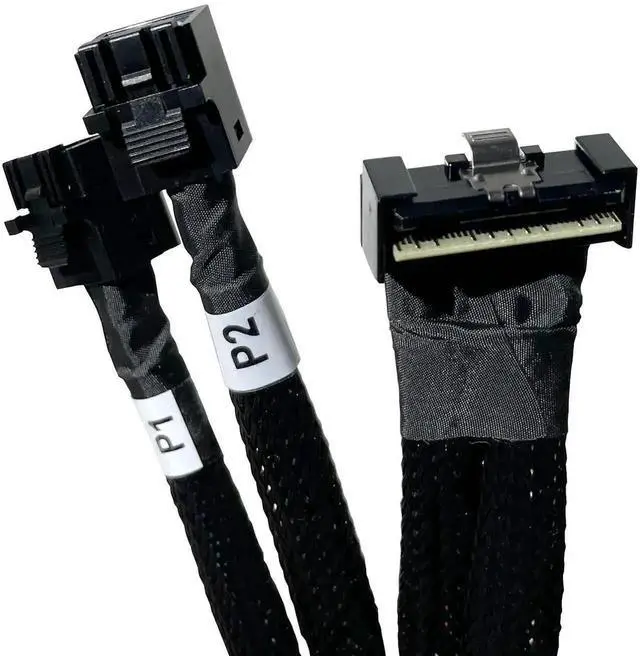

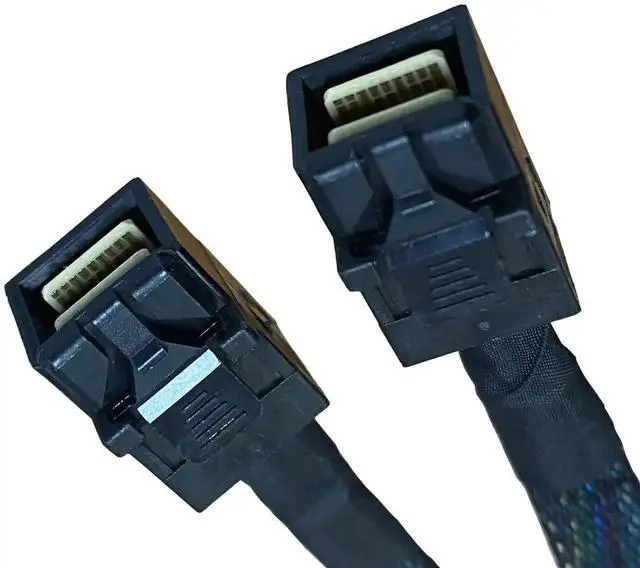

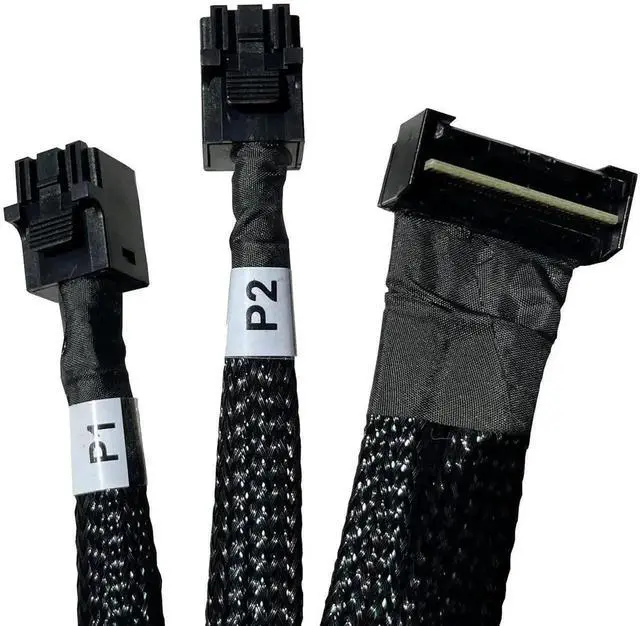

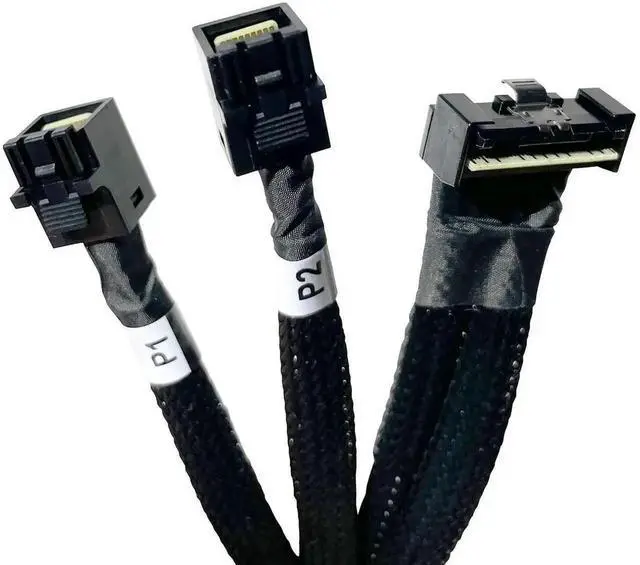

80cm SlimSAS SFF-8654 74Pin 8X to Dual SFF-8643 36Pin 4X Server Cable, Compatible with DELL PERC H750 H755 RAID Controllers
- 1-to-2 splitter design: Single 74pin 8X port splits into two independent 36pin 4X channels
- 80cm customized length fits internal wiring layout of DELL PowerEdge servers
- Fully compliant with PCIe Gen4 & SAS 4.0, stable 24Gbps per channel bandwidth
- Lockable latching connectors prevent loose contact during long-term server operation
- Exclusively matched for DELL PERC H750 / H755 RAID storage controller cards
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This 80cm high-speed server data cable adopts SlimSAS SFF-8654 74pin 8X input and dual Mini SAS HD SFF-8643 36pin 4X output architecture, perfectly customized for DELL PERC H750 and H755 RAID controllers to connect storage backplanes.
Built with multi-layer shielding and precise impedance matching, it effectively reduces signal attenuation and crosstalk to maintain consistent ultra-high-speed transmission for SAS hard drives, NVMe SSDs and disk array systems, supporting full SAS 4.0 and PCIe 4.0 bandwidth standards.

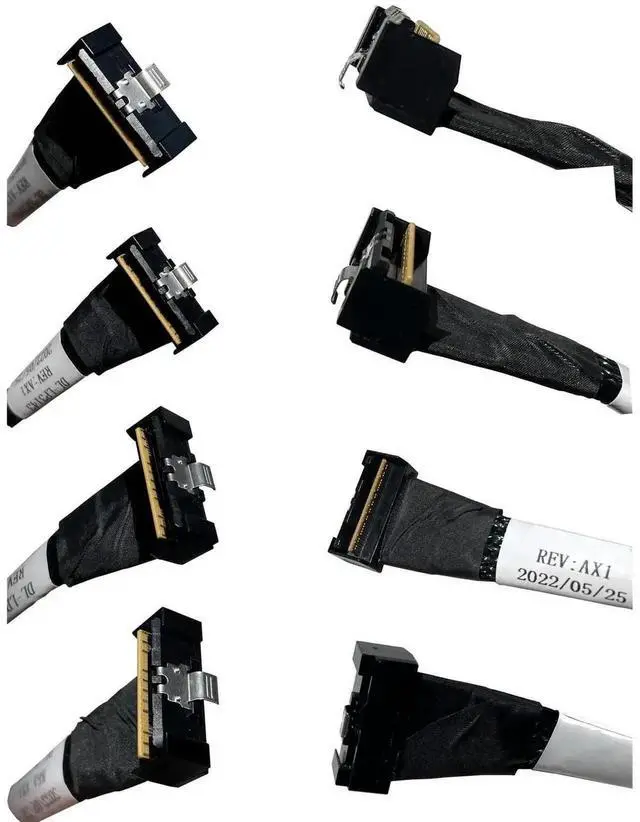

All connectors come with built-in locking buckles to avoid accidental disconnection caused by server vibration, ensuring 24/7 stable storage operation. Braided outer sleeve improves flexibility for neat cable routing inside compact server chassis while boosting heat dissipation efficiency.
Plug-and-play without extra configuration, ideal for DELL PowerEdge series storage expansion, data center server assembly, RAID array building and industrial storage workstation deployment.
