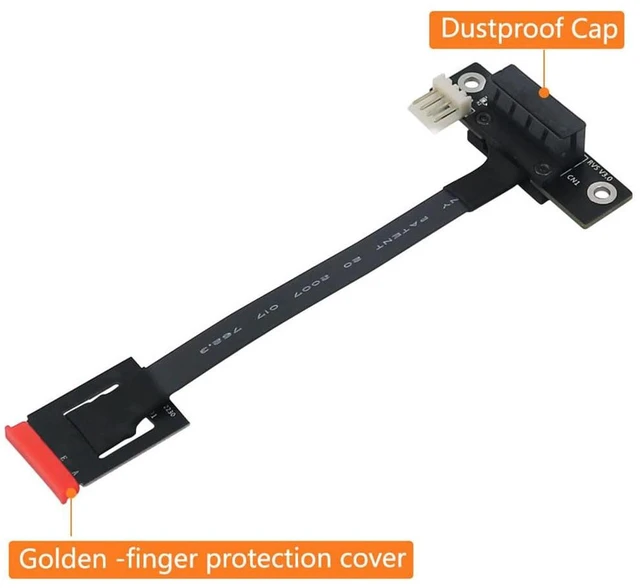

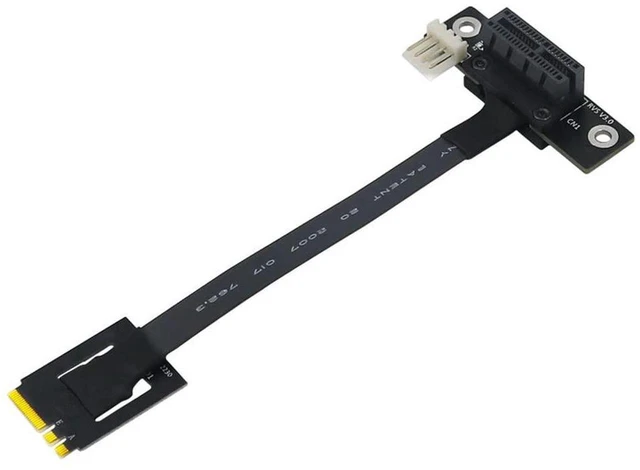

AJMRTC M.2 NGFF Dual Key A-E to PCI-E 1X Riser Cable, 270° Bend 20cm Extension Adapter with 4Pin FDD Power Connector, for M.2 A-E Key 2230 WiFi / Bluetooth Module, Mini PC Expansion

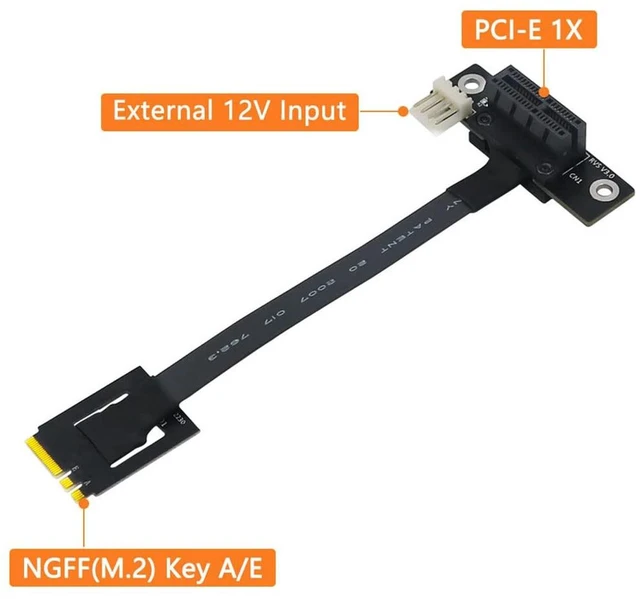

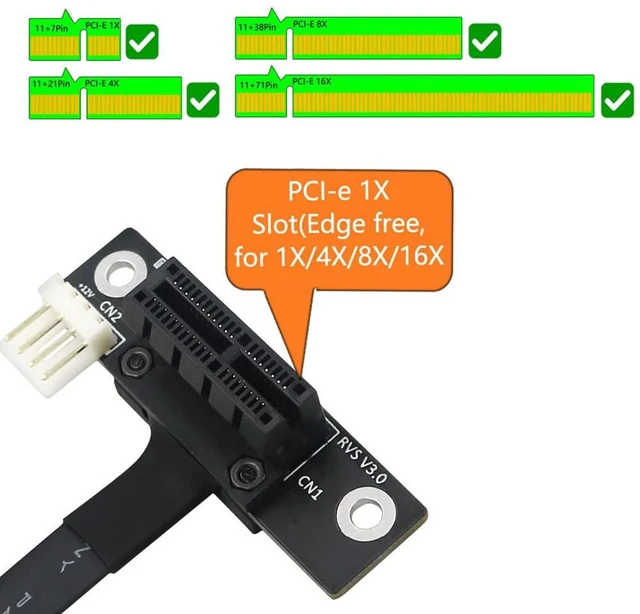

- 1. Converts M.2 NGFF A+E key slot to standard PCIe 1X interface, expands mini host for WiFi, BT and low-power PCIe cards.
- 2. Unique 270° angle design avoids space conflict inside compact chassis, convenient and tidy internal routing.
- 3. Equipped with 4Pin FDD power connector, supplies extra 12V power for high-power PCIe devices; optional to leave it unplugged.
- 4. 20cm flexible extension cable, gold-plated contacts and impedance-matched PCB for stable PCIe 3.0 signal transmission.

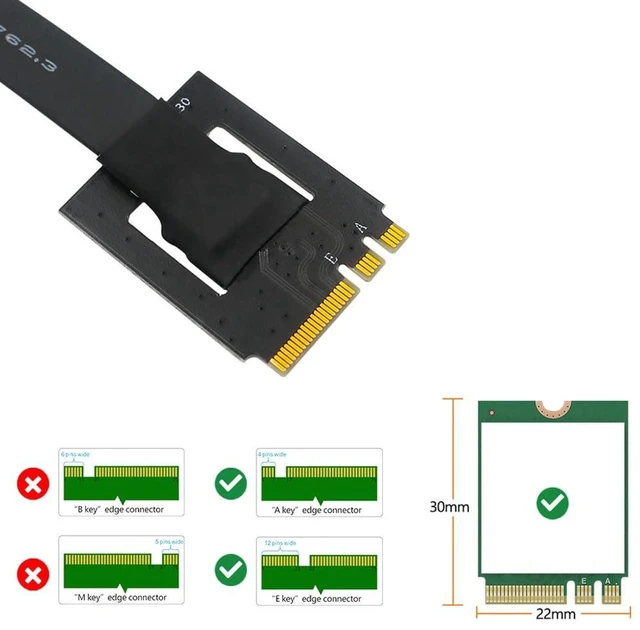

- 5. Specially fits M.2 2230 A-E key modules, widely used for mini PC, thin motherboard, PCIe testing and wireless upgrade.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC M.2 A+E key to PCIe 1X riser cable turns your motherboards M.2 A-E slot into a PCIe 1X port. The 270-degree bent connector solves installation obstacles in small cases. It comes with a 4Pin FDD power port to provide extra power when needed. It supports PCIe 3.0 and works with 2230 size A-E key WiFi 6 / WiFi 6E wireless and Bluetooth modules. Plug and play under Windows and Linux. Note: The bandwidth is limited to PCIe 1X, determined by the original M.2 A-E slot. Not for M-key NVMe SSD. Power off the system before installation, hot plug is not allowed.
Specifications
- Brand: AJMRTC
- Interface: M.2 NGFF Dual Key A-E Male to PCIe 1X Female

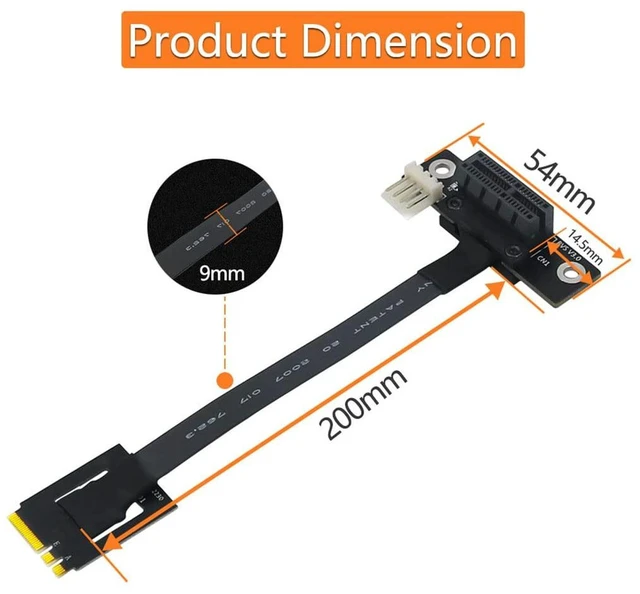

- Cable Length: 20cm
- Bend Angle: 270°
- Auxiliary Power: 4Pin FDD Connector (12V)
- Supported Module Size: M.2 2230
- PCIe Version: PCIe 3.0, 1X Bandwidth
- Connector: Gold-plated fingers
- System Compatibility: Windows, Linux
- Application: Mini PC, Thin Motherboard, WiFi BT Module Upgrade, PCIe Device Test Bench
- Note: 1X speed limit; only for A-E key wireless modules, not compatible with M-key SSD
