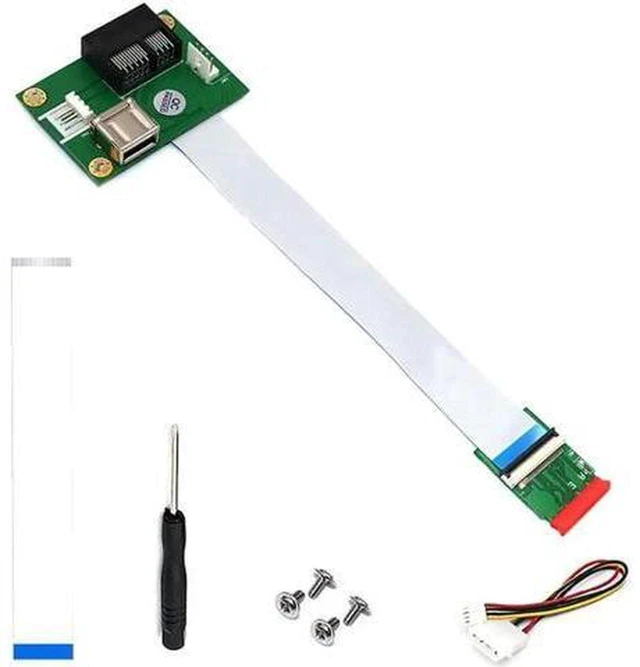

AJMRTC M.2 NGFF Key A/E to PCIe X1 + USB 2.0 Riser Adapter Card, 480Mbps Hi-Speed USB, Hot Swap, FPC Extension Cable for M.2 2230 WiFi Bluetooth Module Desktop Mini PC Expansion

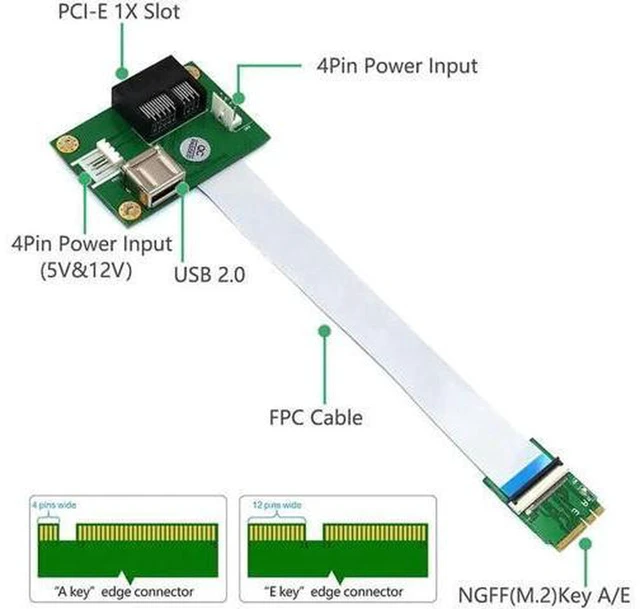

- - Converts M.2 Key A/E 2230 slot into PCIe X1 slot plus independent USB2.0 port for WiFi + Bluetooth modules
- - USB 2.0 up to 480Mbps transfer speed, hot-swap supported for quick peripheral reconnection
- - PCIe X1 edge works on PCIe X1/X4/X8/X16 motherboard slots for flexible installation
- - Optional 4Pin FDD auxiliary power input delivers stable power for high-current wireless cards
- - High-speed FPC ribbon cable enables flexible routing inside tight mini PC and embedded chassis
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

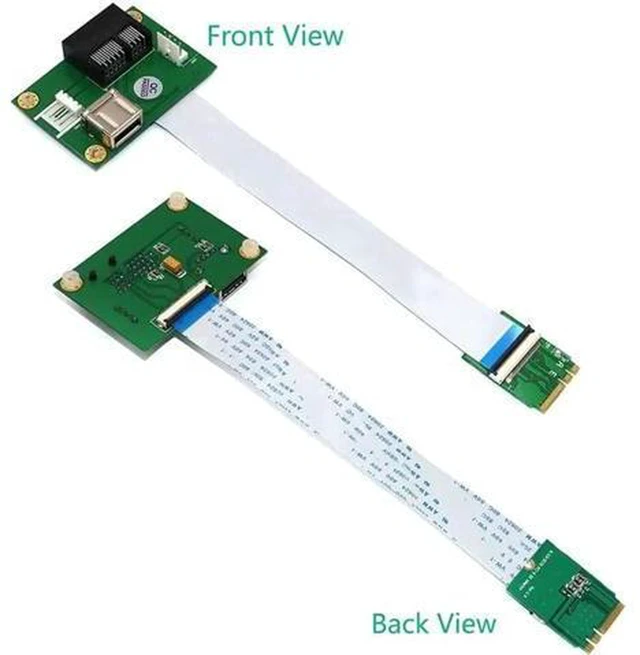

AJMRTC M.2 A+E riser adapter separates PCIe WiFi signal and USB 2.0 Bluetooth signal individually. It is designed to mount laptop-style M.2 A+E WiFi/Bluetooth modules onto desktop PCs and custom compact hosts. The extra 4Pin power connector solves unstable operation caused by insufficient slot power. It works with popular wireless modules such as AX200, AX210, BE200, 9260 and 8265. Wireless module and antennas are sold separately.
Specifications
- Brand: AJMRTC

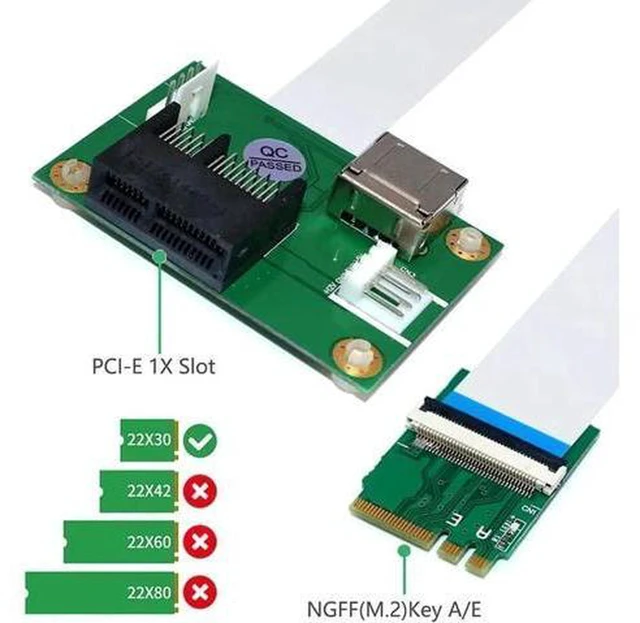

- Host Interface: M.2 Key A+E / E-key 2230
- Expansion Ports: PCIe X1 Slot + USB 2.0 Port
- USB Speed: USB2.0 up to 480Mbps
- PCIe Spec: PCIe 1.1 up to 2.5Gbps
- Aux Power: 4Pin FDD (5V & 12V, optional)
- Feature: Hot-swappable
- Supported OS: Windows XP / 7 / 8 / 10 / 11, Linux
- Compatible Module: M.2 A+E WiFi Bluetooth Module

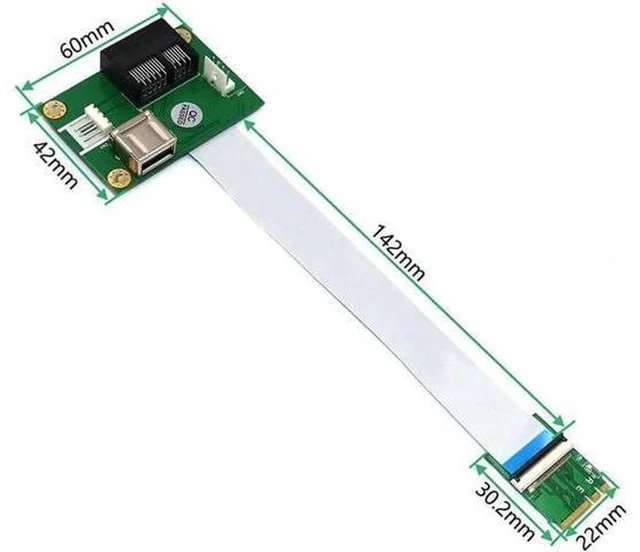

- PCB Size: 60mm × 33mm
- Working Temperature: 0 ~ 55
- Note: WiFi module and antennas not included; Bluetooth requires USB 2.0 connection
