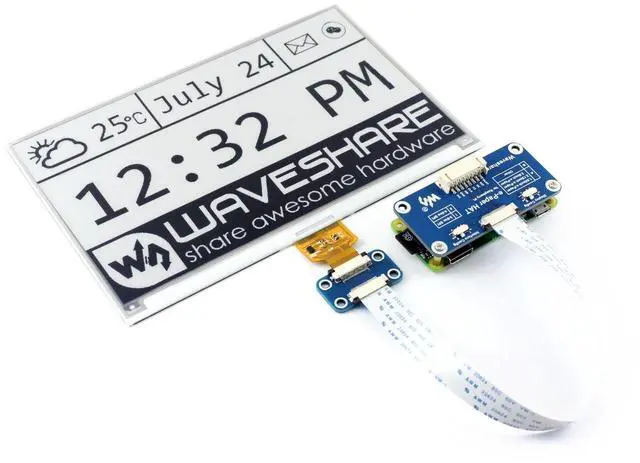

7.5inch E-Paper Display HAT Module 800x480 E-Ink Electronic Paper Screen with Embedded Controller for Raspberry Pi/Arduino/STM32/Jetson Nano

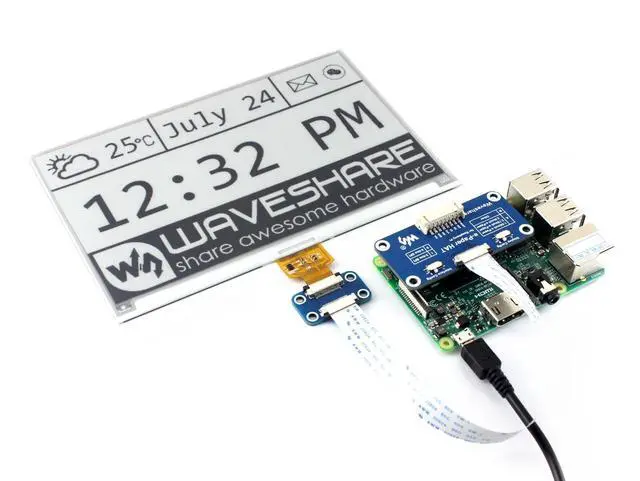

- No backlight, keeps displaying last content for a long time even when power down; Ultra low power consumption, basically power is only required for refreshing; Standard RPi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano; Onboard voltage translator, compatible with 3.3V/5V MCUs;SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.; Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

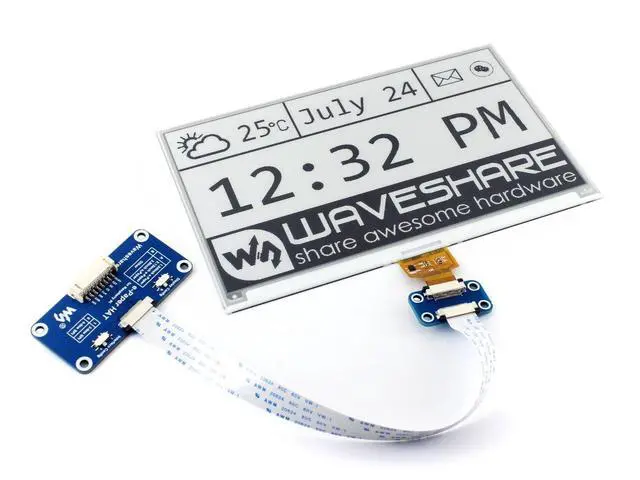

Description This is an E-Ink display HAT for Raspberry Pi, 7.5 inch, 800x480 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Interface: SPI
Outline dimension: 170.2 mm × 111.2 mm
Display size: 163.2 mm × 97.92 mm
Dot pitch: 0.255 × 0.255
Resolution: 800x480
Display color: black, white
Grey level: 2
Full refresh time: 6s
Refresh power: 38mW(typ. )
Standby power: <0.017mW Viewing angle: > 170° Package Contains 1. 7.5 inch e-Paper x1 2. e-Paper Driver HAT x1 3. RPi screws pack (2pcs) x1 4. PH 2.0 20cm 8Pin x1
Development Resources Wiki: www. waveshare. com/wiki/ 7.5 inch_e-Paper_HAT 100% original, offer technical support!
Specifications
Operating voltage: 3.3V ~5VInterface: SPI
Outline dimension: 170.2 mm × 111.2 mm
Display size: 163.2 mm × 97.92 mm
Dot pitch: 0.255 × 0.255
Resolution: 800x480
Display color: black, white
Grey level: 2
Full refresh time: 6s
Refresh power: 38mW(typ. )
Standby power: <0.017mW Viewing angle: > 170° Package Contains 1. 7.5 inch e-Paper x1 2. e-Paper Driver HAT x1 3. RPi screws pack (2pcs) x1 4. PH 2.0 20cm 8Pin x1
Development Resources Wiki: www. waveshare. com/wiki/ 7.5 inch_e-Paper_HAT 100% original, offer technical support!
