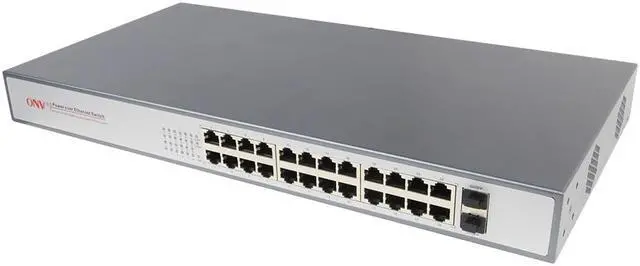

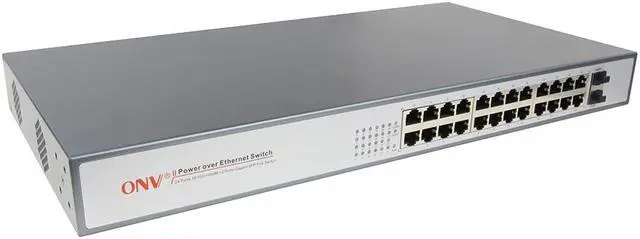

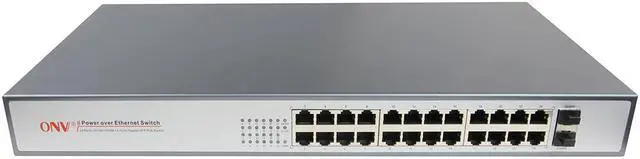

ONV-POE33024PFU 24*10/100/1000M PoE Ports + 2*Gigabit Fiber Ports IEEE 802.3af/at POE Switch

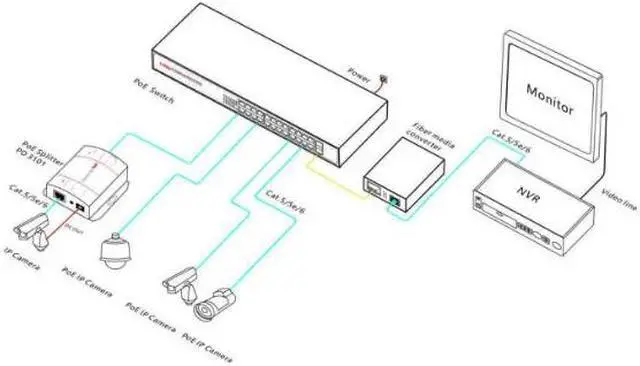

The 26-Port gigabit PoE ports provide fast connection to servers or the backplane of the gigabit speed. It features with PoE (Power Over Ethernet) function through different power levels of PoE power supply, that is it can supply the 48V DC power to the PD remote devices (e. g. IP Phone, WLAN AP, Security, Bluetooth AP etc. ) via a network cable, in order that realizing the power supply for remote PD devices. As the power supply PSE (Power Sourcing Equipment) side device, which supports the standard IEEE 802.3 af/at power standard This cost-effective ONV-POE33024PFU is perfectly suitable for security surveillance/ small business/ home use.

It comes with excellent lightning-proof capabilities and security features. The product adopts the standard rack metal housing design and is easy to install. ONV-PoE33024PFU is fully compliant with IEEE 802.3 af/ IEEE 802.3 10BASE-T Ethernet/ IEEE 802.3 u 100BASE-TX fast Ethernet/ IEEE 802.3 ab 1000BASE-T Ethernet ANSI/IEEE 802.3NW ay auto-negotiation and IEEE 802.3 x flow control. This ONV-PoE33024PFU comes with the PoE green power saving application mode. Feature? Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)? 24*10/100 /1000Mbps automatic adjustment RJ45 PoE ports + 2*Gigabit SFP fiber uplink ports? Meet the standards of the IEEE 802.3 af/ IEEE 802.3 at/ IEEE 802.3 u/ IEEE 802.3 x/ IEEE 802.3 ab standard? The packet forwarding speed of the wire-speed port is 38.69M bps? Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)? All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed? 1U Rack mounted design, easy to install and use? Automatic adjustment, plug and play, no need software and protocol conversion Target Industries? HD monitor transmission and power supply? Wireless AP layout transmission and power supply? Network telephone transmission, intelligent house and home system? Intelligent transportation supervisory system (ITS)? High-speed Way supervisory/Tele-Communication System? Security protection system, TV medical treatment? Long-distance Muti-media Schooling, Campus monitoring? Long-distance broadcast television transmission system? High-building Security Protection, Military Tele-Com projects Ordering Information
Product Model: ONV-POE33024PFU
Product Description: 26-Port Full gigabit PoE switch. 24*10/100/1000M PoE Ports + 2*Gigabit Fiber Ports. IEEE 802.3 af/at, Max PoE power output is 30W. Total power is 250W.
Ordering Note: The even number port is end-span(1/2+, 3/6- line pair) power supply. Technical Specification Product Name 26-Port Gigabit PoE Switch with 24 Gigabit PoE Ports Product Model ONV-POE33024PFU Connector Type 24*10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment); 2*Gigabit SFP fiber uplink ports Forwarding Mode Store and Forward
Network Medium 10BASE-T: Cat3, 4, 5
UTP(=100 meters) 100BASE-TX: Cat5 or more
UTP(=100 meters) 1000BASE-TX: Cat5 or more UTP(=100 meters) Performance
Specifications Backplane Bandwidth: 52Gbps
Forwarding Rate: 38.69M pps
Network Delay: less than 20 microsecond
Packet Buffer: 4M
MAC size: 8K
MTBF: 100, 000 hours Power Supply Type 1, 2(+), 3, 6(-) Network Protocols IEEE 802.3; IEEE 802.3 u; IEEE 802.3 ab; IEEE 802. x Flow Control IEEE 802.3 af/at LED Indicator Status Power,

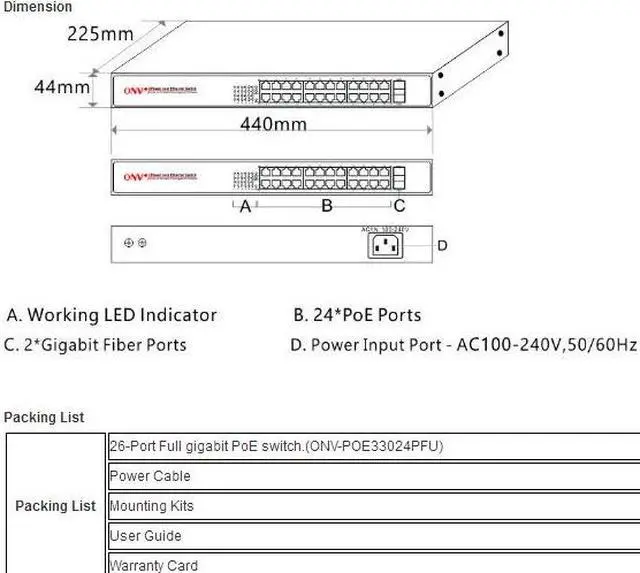

Network Voltage Input: AC100~240V 50/ 60Hz Dimension / Weight 440*225*44mm / 2.6 kg Working
Environment Working temperature: -20°C~55°C;
Storage temperature: -20°~ 75°C;
Working Humidity: 10%~90%, no condensation;
Storage Humidity: 5% ~ 90%, no condensation;
Working Altitude: 3000 meters (10, 000ft);
Storage Altitude: 3000 meters (10, 000ft) Radiation CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Safety CE Mark, commercial CE/LVD EN60950, RoHS Warranty 1 Year Warranty
