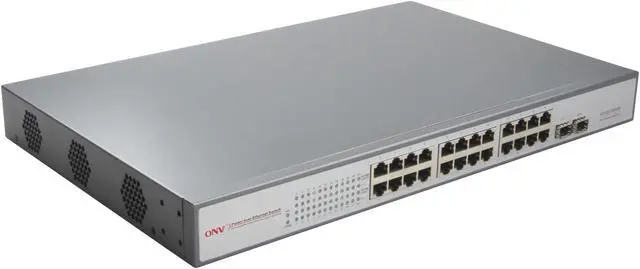

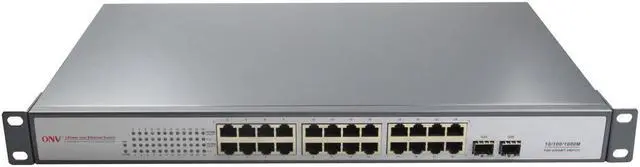

ONV-POE33024PF-at 24x 10/100/1000 Mbps ports + 2x SFP gigabit optical uplink ports supports IEEE802.3at power POE Switch

Feature
? 26-Port Gigabit PoE Switch with 24 PoE Ports and 2 SFP Gigabit Uplink Optical Ports
? Supply power to 5 classes Ethernet wireless access points AP and network IP surveillance cameras
? Port 1 to Port 24 supports IEEE 802.3 at power (each port maximum power is 30W)
? 24x 10/100/1000 Mbps ports + 2x SFP gigabit optical uplink ports
? Compatible with IEEE 802.3 10i and IEEE 802.3 u standard
? The packet forwarding speed is 1.488M bps of one wire-speed port
? Port features with auto-flip(Auto MDI/MDIX)
?
Network port comes with lighting-proof (AC power port: difference module +/-2kV, common module +/-4kV)
? All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed

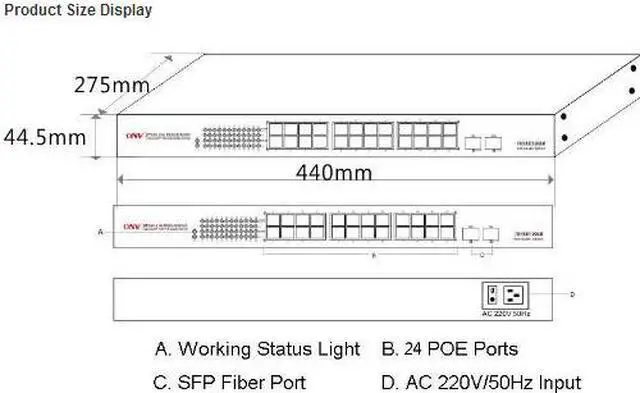

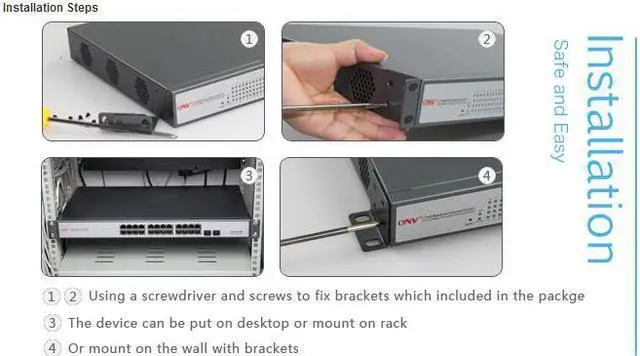

? Standard 1U rack design, suitable for rack installation mode

Flexible
Selecting to insert up to 24 Ethernet networks or fast Ethernet devices or hybrid access to 24 IP-based IEEE 802.3 af PoE devices. Optimized installation and power management, such as the wireless access points (AP), Voice IP (VoIP) phones and IP-based cameras. Power over Ethernet (IEEE 802.3 af) is used for new construction equipment to improve network efficiency and reduce the time and cost of installation. Easily deploy your wireless access point AP and IP cameras, eliminating the need to power outlets and supply uninterrupted power to the entire PoE device.

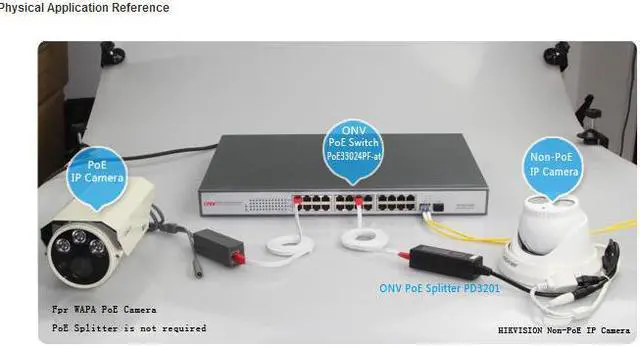

Application Situations
? Million HD surveillance transmission and power supply
? Wireless AP distribution transmission and power supply
? VoIP transmission, intelligent home systems
? City intelligent traffic monitoring system (ITS), safe city, and wireless city
? Highway surveillance system, electronic road surveillance, snapshot system
? large industrial factory& enterprise security surveillance system, network multifunction system
? Remote multimedia teaching & campus surveillance, video conferencing systems
? Building intercom, wireless communications, video surveillance

Technical Specification
Product Name 26-Port Gigabit PoE Switch with 24 Gigabit PoE Ports 25.5W
Product Model ONV-POE33024PF-at
Connector Type
24x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX
automatic adjustment); 2x 10/100 /1000Mbps SFP fiber uplink ports
Forwarding Mode 1000M line speed forwarding;
Packet Length: 10K; Packet Buffer: 4.1M
Network Medium
10BASE-T: Cat3, 4, 5 UTP(=100 meters)
100BASE-TX: Cat5 or more UTP(=100 meters)
1000BASE-TX: Cat5 or more UTP(=100 meters)
Performance

Specifications

Backplane Bandwidth: 52Gbps
Network Delay: less than 20 microsecond
Packet Buffer: 96KB
Address Database size: 1000
MTBF: 190, 000 hours (about 21 years)
PoE Description
IEEE 802.3 at, each port power is 25.5W; Port1 to Port24 support PoE power;
The even number Port(1/3/5/7/9/11/13/15/17/19/21/23) is end-span(1/2+, 3/6-
line pair) power supply, the odd number port(2/4/6/8/10/12/14/16/18/20/22/24)
is mid-span(4/5+, 7/8- line pair) power supply
PoE Power Port output power is 25.5W (IEEE 802.3 at)
Power Supply Type End-span type(Mid-span optional)
Network Protocols IEEE 802.3; IEEE 802.3 u; IEEE 802.3 ab; IEEE 802. x Flow Control
LED Indicator Status Power, Network, PoE working status
Power IEEE 802.3 at standard, each port powe
