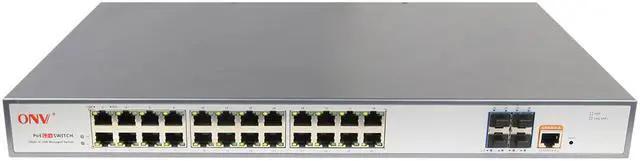

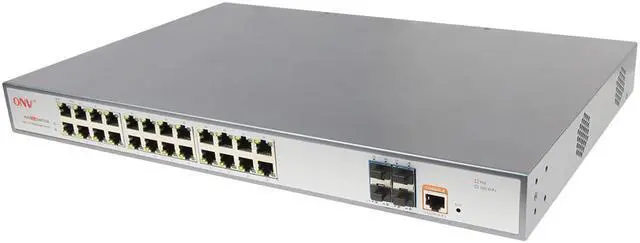

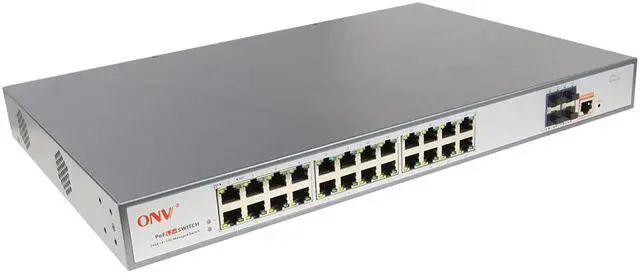

ONV-POE36028PFM 24*10/100/1000M PoE RJ45 ports + 4*10G SFP+ ports Managed PoE Switch

Description
High-performance of both hardware and software
This 10G L2+ PoE switch uses top-rated 10G network switching chip, multiple layers PCB design, as well as self-developed switch software system. With combination of hardware and software, it improves product quality from forwarding stability, packet processing speed, and other work capability.
Support the fast ring network protocol, free configuration
The switch supports stable and reliable fast Ring Protection Protocol (RSTP). It Achieved real ring loop redundancy protection. Besides, there is no need to configure 10G port when users using this switch, to reduce probability of network failure.
Strong network security
Support dynamic or static binding by users definition, such as IP, MAC, VLAN, PORT, etc. Support port isolation, to prevent communication between two neighbor network equipment within the same broadcast domain, for reducing network risk; Supports perfect storm control function which can suppress broadcast, multi-cast, and uni-cast storm; Support specific ARP inspection which can effectively prevent ARP spoofing attack created by hackers or attackers via ARP packets.
Feature
? 24*10/100/1000M PoE RJ45 ports + 4*10G SFP+ ports
? Support L2+ Switching features, including VLAN, TRUNK, Mirroring, Port isolation/flow control/speed limit, Storm control, QOS, ACLs etc.
? Support spanning tree STP and RSTP.
? Jumbo frames support up to 9.6K kilobytes
? Support enhanced management through WEB, CLI, TELNET, SNMP
? Support cable diagnosis
? 24 ports support PoE. Compliant with both IEEE 802.3 af/at. Allow PoE configuration for each PoE port


Target Industries
? HD monitor transmission and power supply
? Wireless AP layout transmission and power supply
? Network telephone transmission, intelligent house and home system
? Intelligent transportation supervisory system (ITS)
? High-speed Way supervisory/Tele-Communication System
? Security protection system, TV medical treatment
? Long-distance Muti-media Schooling, Campus monitoring
? Long-distance broadcast television transmission system
? High-building Security Protection, Military Tele-Com projects
Ordering Information
Product Model: ONV-POE36028PFM
Product Description: 28-port 10G L2+ Managed PoE Switch, 24*10/100/1000M PoE RJ45 ports + 4*10G SFP+ ports, compliant with both IEEE 802.3 af/at standard.
Max PoE port power: 30W, can be set by management system. Total input power is 400W.
Note: Default power supply pin type is end-span(1/2+, 3/6-)
Technical parameter list
Product Name 28-port 10G L2+ Managed PoE Switch
Model ONV-POE36028PFM
Connector Type 24*10/100/1000M PoE RJ45 ports + 4*10G SFP+ ports
Network Media 10BASE-T: UTP Cat 3, 4, 5 (=100
Meters) 100BASE-TX: UTP Cat 5 or more (=100
Meters) 1000BASE-T: UTP Cat 5 or more (=100 Meters)
Bandwidth 598G
Address Database Size 32K
MTBF 100, 000 hours
Forwarding Mode Store and Forward
Buffer Memory 32M
Network Protocols IEEE 802.3, 10BASE-T Ethernet; IEEE 802.3 u, fast Ethernet Standard; IEEE 802.3 ab, gigabit Ethernet Standard; IEEE 802.3 z, gigabit Ethernet Fiber Standard; (AOC fiber cable) IEEE 802.3 ae, 10G Ethernet Standard; IEEE 802.3 x, full-duplex Ethernet data link layer flow control
