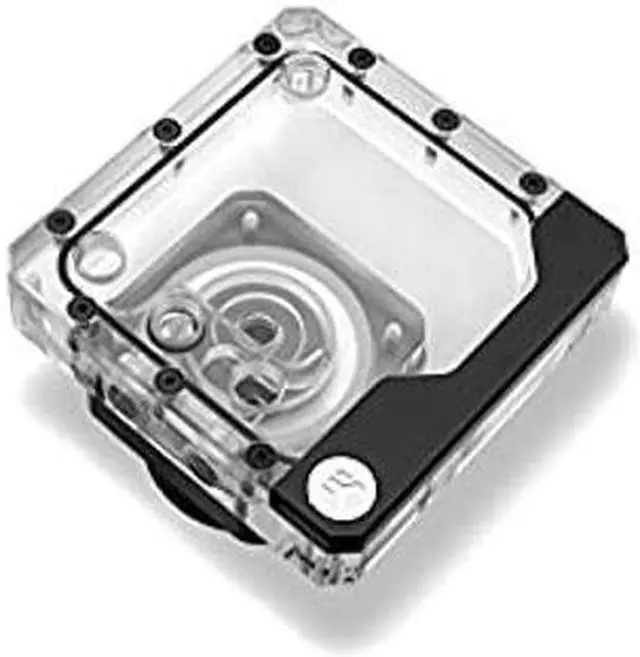

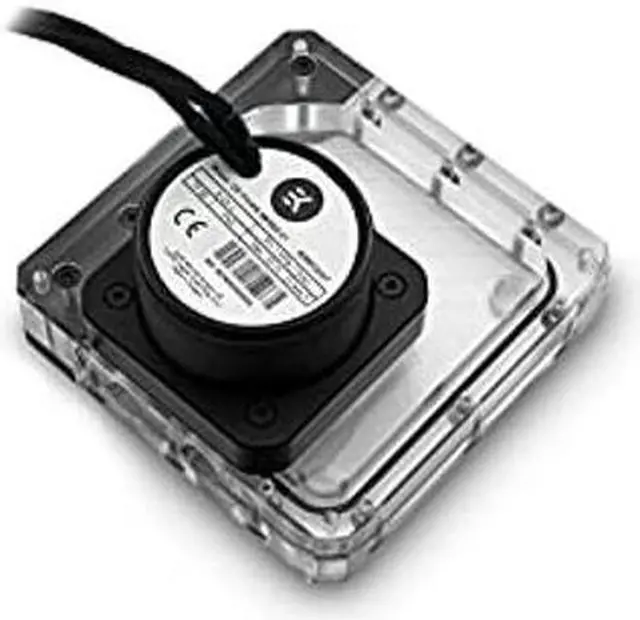

EKWB EK-Quantum Kinetic FLT 120 Pump/Reservoir Combo, D5 PWM, D-RGB, Plexi

All new Flat (FLT) series EK-Quantum Kinetic FLT D5 pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine D5 pump! The reservoir is equipped with a total of six G1/4" ports so that users can choose the most optimal setup for their liquid cooling loops.
EK-Quantum Kinetic FLT D5 series pump-reservoir units are equipped with genuine D5 pumps, made in Europe, which are capable of delivering flow rates of 1500 liters per hour with a maximum head pressure up to 3.9 meters!
Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible "LED hotspots" as possible.
Technical specifications:
- Size (HxWxT): 125x120x86mm (with the mounting system)
- Capacity: ~100ml
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)
Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9 m
- Maximum flow: 1500L/h
- Maximum system temperature: 60degC
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Quantum Kinetic FLT 120 PWM D5 D-RGB
- Mounting mechanism with all necessary screws for 120mm fan mounting
- Pair of EK reservoir holders with mounting screws
- 4 x G1/4 Plugs
- 1 x Allen key for reservoir holders Model: 3831109819784
