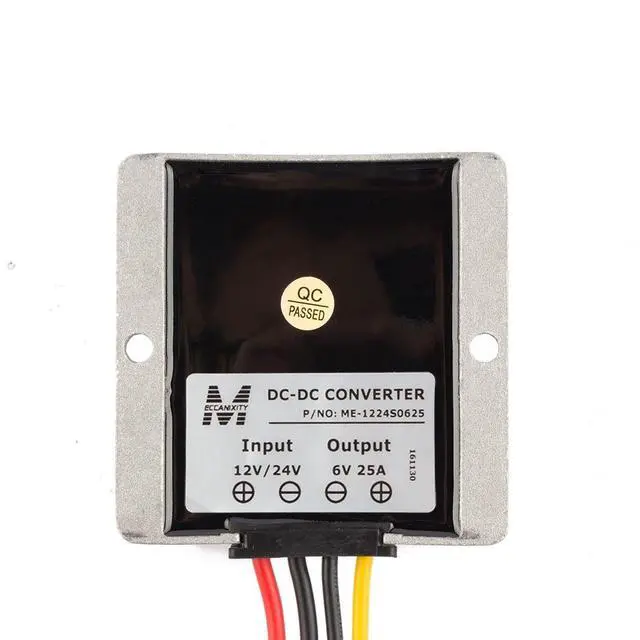

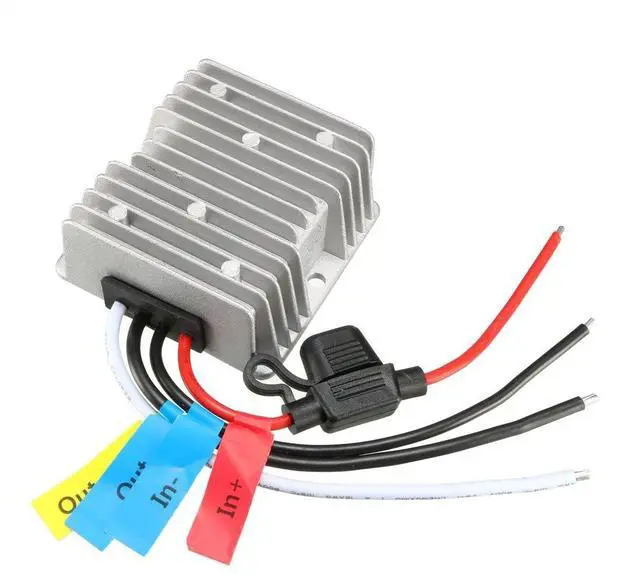

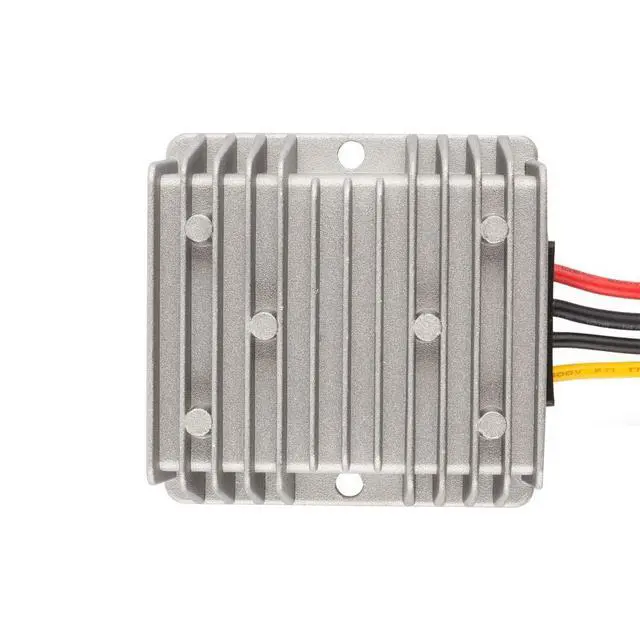

uxcell Power Converter Regulator DC12V/24V to DC6V 25A 150W Waterproof Voltage Convert Transformer
- Waterproof IP68 Voltage Converter Regulator DC 12V/24V to DC 6V 25A 150W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Auto-recovery when device is back to normal operating; high transfer efficiency of 94% max..
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.New and Old label is being changed, but the products are same.
- Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. 3. Industry grade DC 12V/24V to DC 6V converter, efficiency up to 94%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5.
Certificates: CE/RoHS, 1 year, lifetime up to 100, 000 hours. 6.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Applications: - Trucks- Golf Carts- Forklifts- Buses- Loaders- Logging Vehicles- Wind Power System- Solar Power System- Electromotor- Telecommunications- Boat and Yacht- and so on..
Input Rated Voltage: DC 12V/24V*
Input Voltage Range: 11-35V DC*
Output voltage: DC6V 25A*
Output Rated Power: 150W*
Efficiency: 94% (half load); 92% (full load) *
Output Peak Power: 190W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 0mV*
No Load Current: 25mA*

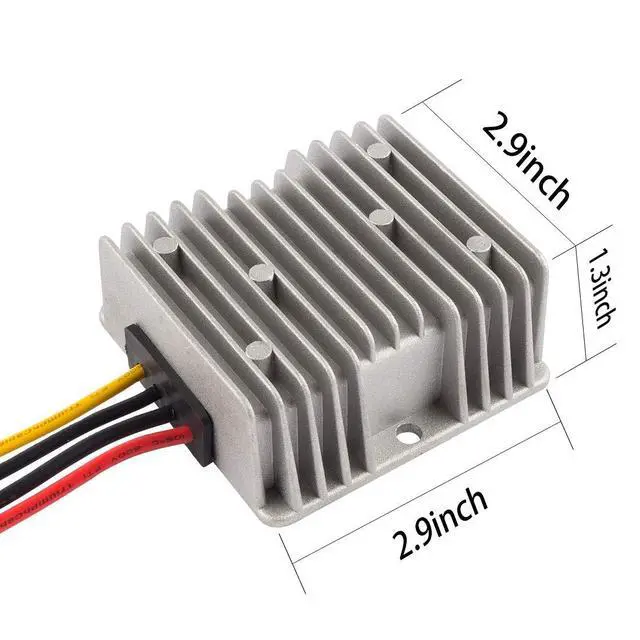

Total Size: 74*74*32mm (L*W*H) * Fixing
Hole Diameter: 5mm( 0.2 inch)*
Hole Center Diameter: 65mm*
Weight: 290gPackage
included: 1 x DC 12V/24V to DC 6V 25A
Voltage Converter RegulatorNote: Can not used long time Under the MAX. LISTED LOAD POWER.
Certificates: CE/RoHS, 1 year, lifetime up to 100, 000 hours. 6.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Applications: - Trucks- Golf Carts- Forklifts- Buses- Loaders- Logging Vehicles- Wind Power System- Solar Power System- Electromotor- Telecommunications- Boat and Yacht- and so on..
Specifications
: *Input Rated Voltage: DC 12V/24V*
Input Voltage Range: 11-35V DC*
Output voltage: DC6V 25A*
Output Rated Power: 150W*
Efficiency: 94% (half load); 92% (full load) *
Output Peak Power: 190W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 0mV*
No Load Current: 25mA*
Total Size: 74*74*32mm (L*W*H) * Fixing
Hole Diameter: 5mm( 0.2 inch)*
Hole Center Diameter: 65mm*
Weight: 290gPackage
included: 1 x DC 12V/24V to DC 6V 25A
Voltage Converter RegulatorNote: Can not used long time Under the MAX. LISTED LOAD POWER.
