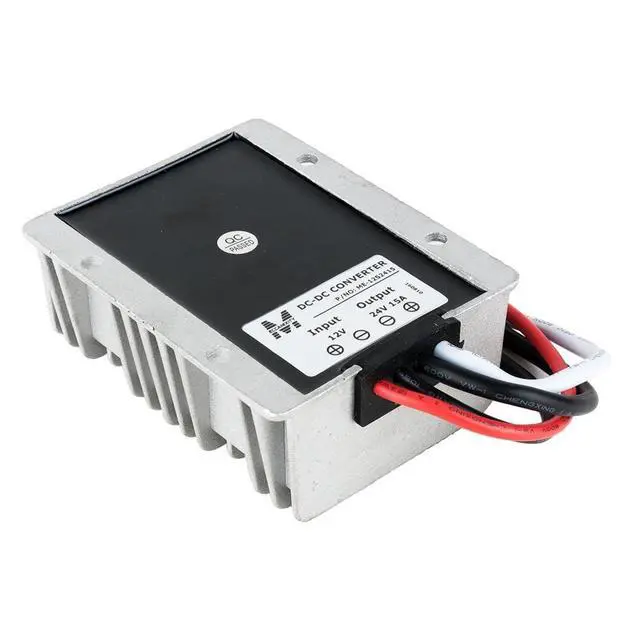

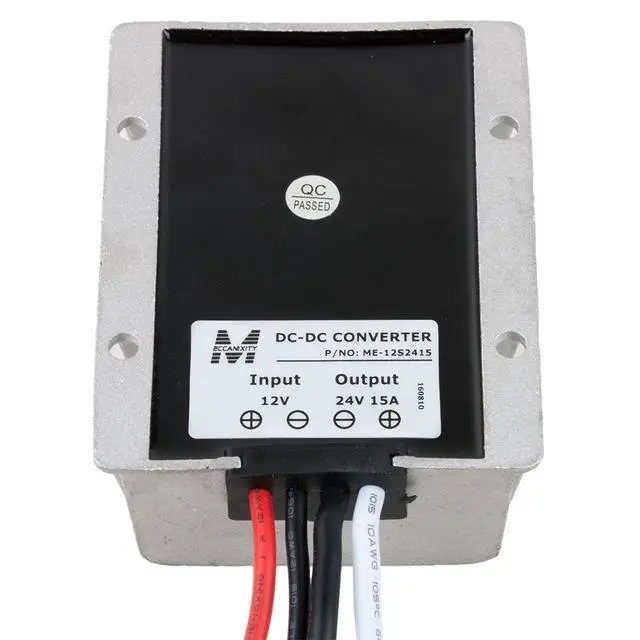

uxcell Voltage Converter Regulator DC/DC DC 12V Step-up to DC 24V 15A 360W Boost Transformer Waterproof
- Waterproof IP68 Voltage Converter Regulator DC 12V(10V-16V) to DC 24V 15A 360W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Recovery when the device is back to normal operating; high transfer efficiency of 95% max.
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.Widely used in bus, cmb, large trucks, motor, solar generate electricity, display screen of bus and taxi, audio device
- Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Name: Waterproof Voltage Converter Regulator DC 12V to
DC 24V 15A 360WFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, ultra-compact size, lightweight. 3. Industry grade DC12V to DC 24V step-up converter, efficiency up to 95%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5.
Protections: Over-current, Over-voltage, Over-temperature, Over-load, and Short-circuit, recovery when the device is back to normal operating.
Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-16V DC*
Output voltage: DC24V 15A*
Output Rated Power: 360W*
Efficiency: 97% (half load); 95% (full load) *
Output Peak Power: 450W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 150mV*
No-load Current: 50mA-60mA*
Total Size: 100*80*39mm (L*W*H) *
Weight: 490gPackage
included: 1 x DC 12V to DC 24V 15A Voltage Converter
DC 24V 15A 360WFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, ultra-compact size, lightweight. 3. Industry grade DC12V to DC 24V step-up converter, efficiency up to 95%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5.
Protections: Over-current, Over-voltage, Over-temperature, Over-load, and Short-circuit, recovery when the device is back to normal operating.
Specifications
: *Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-16V DC*
Output voltage: DC24V 15A*
Output Rated Power: 360W*
Efficiency: 97% (half load); 95% (full load) *
Output Peak Power: 450W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 150mV*
No-load Current: 50mA-60mA*
Total Size: 100*80*39mm (L*W*H) *
Weight: 490gPackage
included: 1 x DC 12V to DC 24V 15A Voltage Converter
