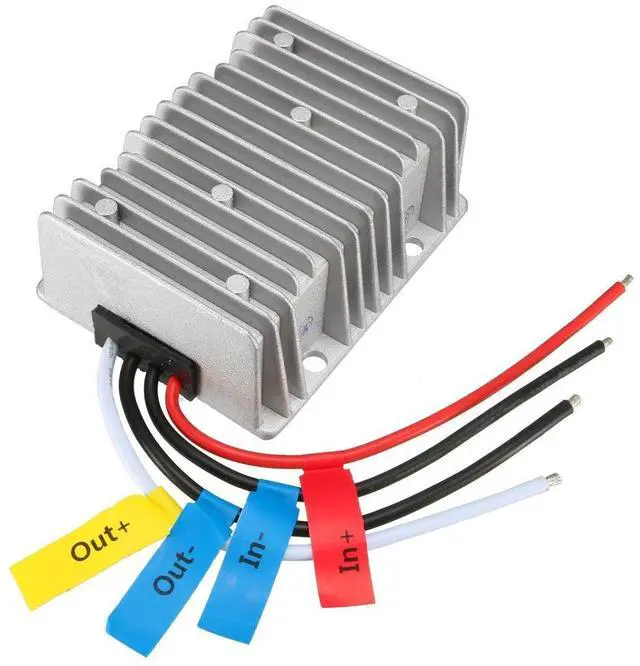

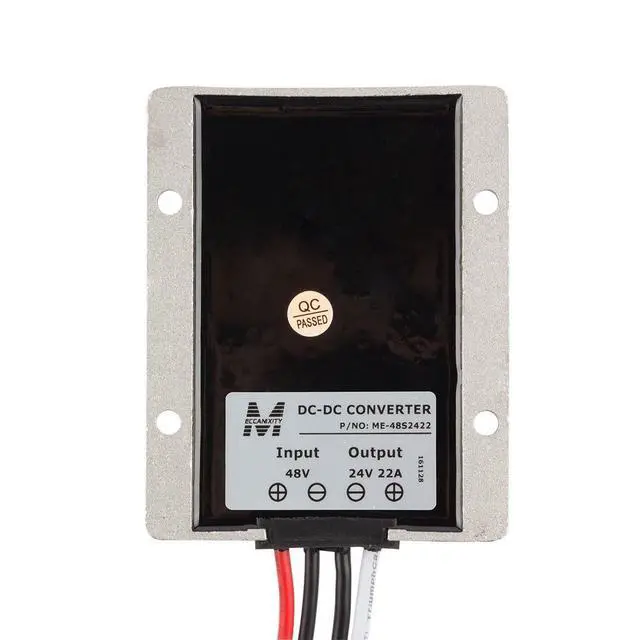

uxcell Voltage Converter DC 48V to DC 24V 22A 528W Waterproof Power Transformer
- Waterproof IP68 Voltage Converter DC 48V to DC 24V 22A 528W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Recovery when the device is back to normal operating; high transfer efficiency of 96% max.
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.
- Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features: 1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. 3. Industry-grade DC48V to DC 24V converter, efficiency up to 96%. 4. Die-cast aluminum shell, epoxy seal, cooling by free air convection. 5.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when the device is back to normal operating.
Applications: - Trucks- Golf Carts- Forklifts- Buses- Loaders- Wind Power System- Solar Power System- Telecommunications- Boat and Yacht- and so on.
Input Rated Voltage: DC 48V*
Input Voltage Range: 38-60V DC*
Output voltage: DC24V 22A*
Output Rated Power: 528W*
Efficiency: 96% (half load); 94% (full load) *
Output Peak Power: 660W*
Voltage Converter: Less Than 1%*
Load Converter: Less Than 2%*
Ripple (full load test): Less Than 50mV*
No Load Current: Less Than 25mV*

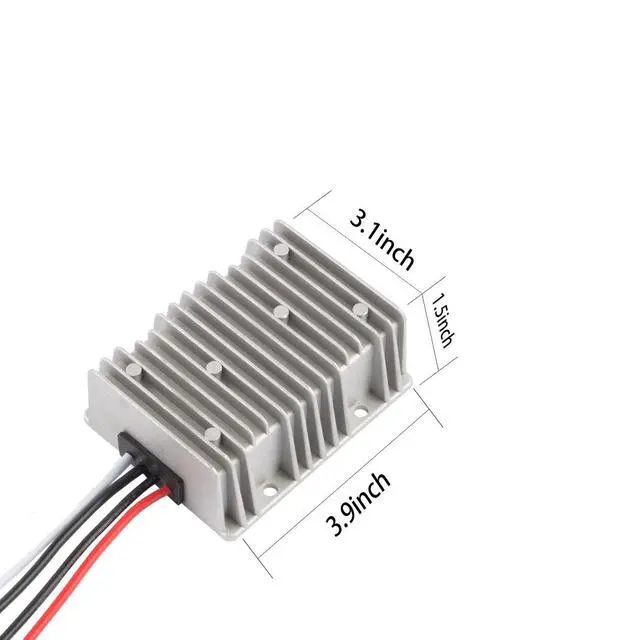

Total Size: 100*80*39mm (L*W*H) * Fixing
Hole Diameter: 6mm( 0.23 inch)*
Weight: 514gPackage
included: 1 x DC 48V to DC24V 22A
Voltage ConverterInstructional Manual: 1. Can not use a long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram provided in the above picture.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when the device is back to normal operating.
Applications: - Trucks- Golf Carts- Forklifts- Buses- Loaders- Wind Power System- Solar Power System- Telecommunications- Boat and Yacht- and so on.
Specifications
: *Input Rated Voltage: DC 48V*
Input Voltage Range: 38-60V DC*
Output voltage: DC24V 22A*
Output Rated Power: 528W*
Efficiency: 96% (half load); 94% (full load) *
Output Peak Power: 660W*
Voltage Converter: Less Than 1%*
Load Converter: Less Than 2%*
Ripple (full load test): Less Than 50mV*
No Load Current: Less Than 25mV*
Total Size: 100*80*39mm (L*W*H) * Fixing
Hole Diameter: 6mm( 0.23 inch)*
Weight: 514gPackage
included: 1 x DC 48V to DC24V 22A
Voltage ConverterInstructional Manual: 1. Can not use a long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram provided in the above picture.
