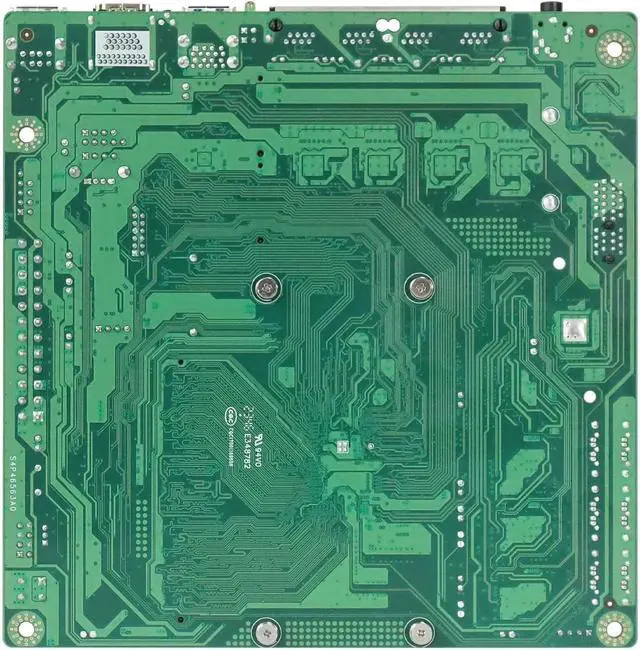

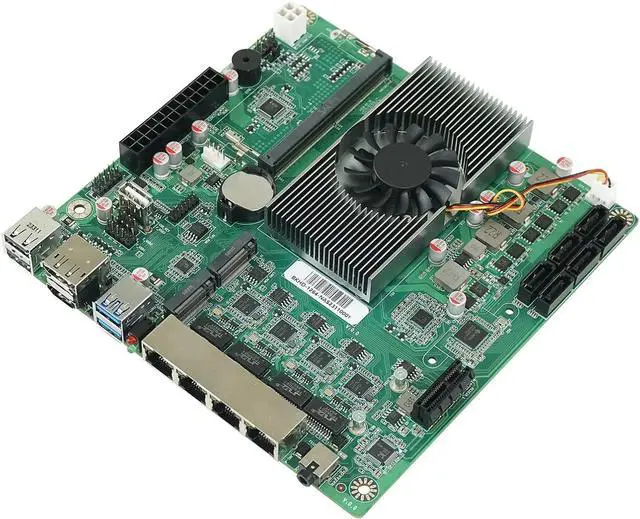

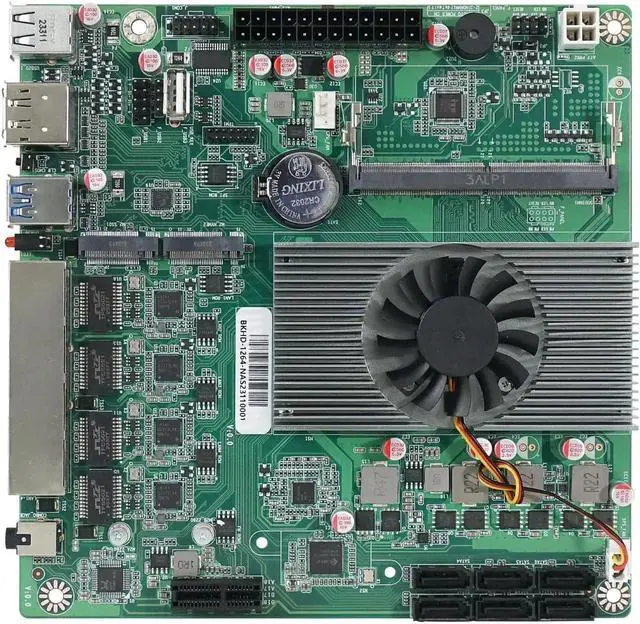

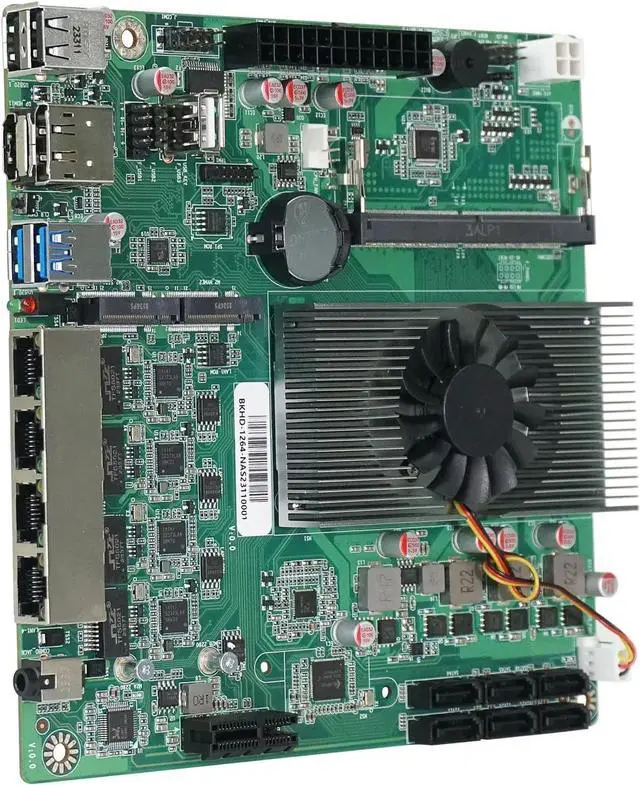

HKUXZR N150 Industrial Motherboard NAS 4 Cores 4 Threads Low Power Processor 4x2.5G i226 Network M.2 Slot 6xSATA DP HDMI 2.0 PCIE x1 .1*M2_ SSD NVME/NGFF+ 1*M.2_ NVME
- [(Low power processor)] Intel Celeron Processor N150: 4 Cores 4 Threads, 6M Cache, up to 3.6 GHz, with Intel UHD Graphics.
- [(High speed network card)] This NAS motherboard has 4* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- [(Industrial NAS Motherboard )] Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--2* USB3.0, 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
- [( Storage and Memory)] 1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 16GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 1* M.2 NVMe 2280 1*M2_ SSD NVME/NGFF PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz.
- NOTE: The motherboard re
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Please note that the motherboard needs to be checked for memory startup speed during the first boot, and do not forget to connect the processor to a 12V power supply. Must connect 24pins+4pins ATX 12V power suppy at the same time to power on
Specification CPU: Processor N-series N100 processor
BIOS: AMI 128Mb BIOS, ACPI supported, Supports Power on startup
Memory: 1*DDR5 SODIMM up to 16GB
Graphics controller: CPU integration
DP: 1*DP interface
HD: 1*HD interface
Multi-display support: Support DP+ HD synchronous or asynchronous dual display output
SATA: 6*SATA, 6Gb/s
Storage: M2_ SSD 1*M2_ SSD NVME/NGFF+1*M.
2_ NVME Network: RJ45 4*i226 2.5G adaptive network port
Audio: Line Out ALC897 chip, Line out Mic 2-in-1 interface
USB 3.0: External 2*USB 3.0
USB 2.0: External 2*USB 2.0, built-in 4*USB 2.0
Serial port: RS232 1*COM
Hardware encryption: TPM TPM 2.0 hardware encryption (pin header)
Watchdog: Supports 4~255 seconds watchdog timer
Voltage: Support +12V, 3.3V, 5V, CPU Vcore, DDR Power voltage detection
Temperature: Support CPU temperature detection
Fan: Supports CPU fan speed detection and intelligent fan control
Power supply: ATX 24PIN+ 4PIN ATX power supply
Operating temperature: -20~60 degrees Celsius
Storage temperature: -20~60 degrees
Celsius Working humidity: 0~90% RH, relative humidity without condensation
Storage humidity: 0~90% RH, relative humidity without condensation
PCB specifications: Board size MINI-ITX (170*170mm)
Specification CPU: Processor N-series N100 processor
BIOS: AMI 128Mb BIOS, ACPI supported, Supports Power on startup
Memory: 1*DDR5 SODIMM up to 16GB
Graphics controller: CPU integration
DP: 1*DP interface
HD: 1*HD interface
Multi-display support: Support DP+ HD synchronous or asynchronous dual display output
SATA: 6*SATA, 6Gb/s
Storage: M2_ SSD 1*M2_ SSD NVME/NGFF+1*M.
2_ NVME Network: RJ45 4*i226 2.5G adaptive network port
Audio: Line Out ALC897 chip, Line out Mic 2-in-1 interface
USB 3.0: External 2*USB 3.0
USB 2.0: External 2*USB 2.0, built-in 4*USB 2.0
Serial port: RS232 1*COM
Hardware encryption: TPM TPM 2.0 hardware encryption (pin header)
Watchdog: Supports 4~255 seconds watchdog timer
Voltage: Support +12V, 3.3V, 5V, CPU Vcore, DDR Power voltage detection
Temperature: Support CPU temperature detection
Fan: Supports CPU fan speed detection and intelligent fan control
Power supply: ATX 24PIN+ 4PIN ATX power supply
Operating temperature: -20~60 degrees Celsius
Storage temperature: -20~60 degrees
Celsius Working humidity: 0~90% RH, relative humidity without condensation
Storage humidity: 0~90% RH, relative humidity without condensation
PCB specifications: Board size MINI-ITX (170*170mm)
