Wishiot TF-Luna LiDAR Range Finder Sensor 0.2m-8m Single-Point Ranging Module UART/I2C 5V with 6Pin Terminal to Dupont Cable for Arduino/RPi Pico/Pixhawk/WiFi_Lora_32
- 1, Model: TF-Luna, Operating range: 0.2-8m, Distance resolution: 1cm, Power comsumption: not over 0.35W, Frame rate: 1-250Hz, Frequency: 100Hz, FOV: 2 degree, Net weight: not over 5g, Communication: UART/I2C interface, Power supply: 5V. Compatible with Raspberry Pi Pico, Pixhawk and WiFi_Lora_32 0.96" oled display transceiver module.

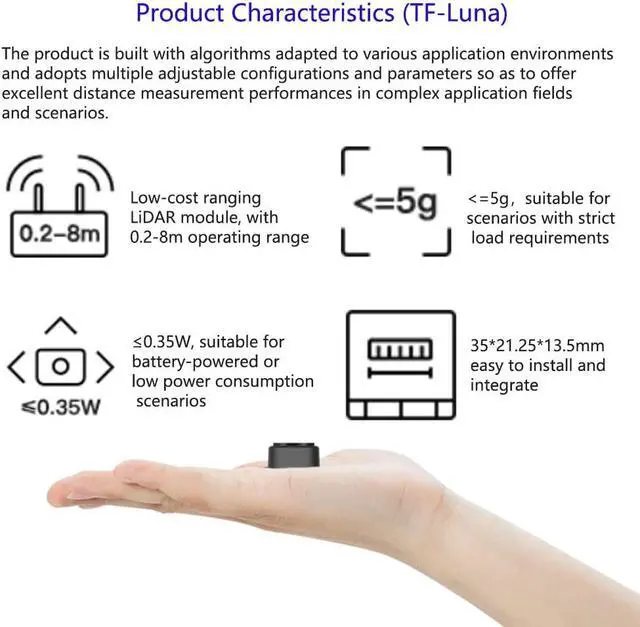

- 2, TF-Luna is a single-point ranging LiDAR, based on TOF principle. It is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
- 3, TF-Luna module comes with UART and I2C interface, default communication interface is UART, IIC can be realized by wiring pins, if you need to use I2C interface, please set it yourself. There are 3pcs cables comes with the lidar, 1.25mm-6Pin male to male connector wire, 1.25mm-6Pin male connector to male/female dupont cables, covers the ca
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

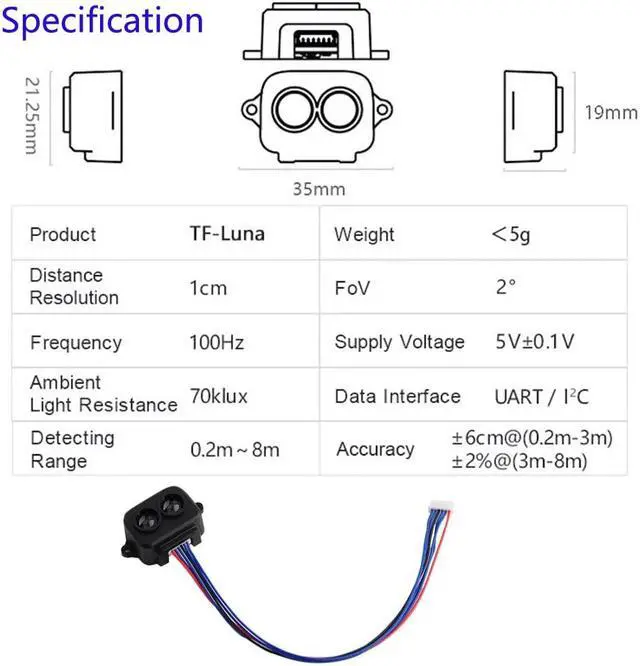

Specification:
Model: TF-Luna
Operating range: 0.2 m~8m
Supply voltage: 5V+- 0.1V
Average current: <=70mA
Peak current: 150mA
Average power: 350mW
Communication interface: UART/IIC, default UART, can set IIC by wiring pins
Frame rate: 1~250Hz ( adjustable )
Communication level: TTL Level ( 3.3V )
Default baud rate: 115200
Data bit: 8
Stop bit: 1
Parity check: None
Light source: VCSEL
Wavelength: 850nm
Operating temperature: -20degC~75degC
Certification: CE, FCC, ROHS

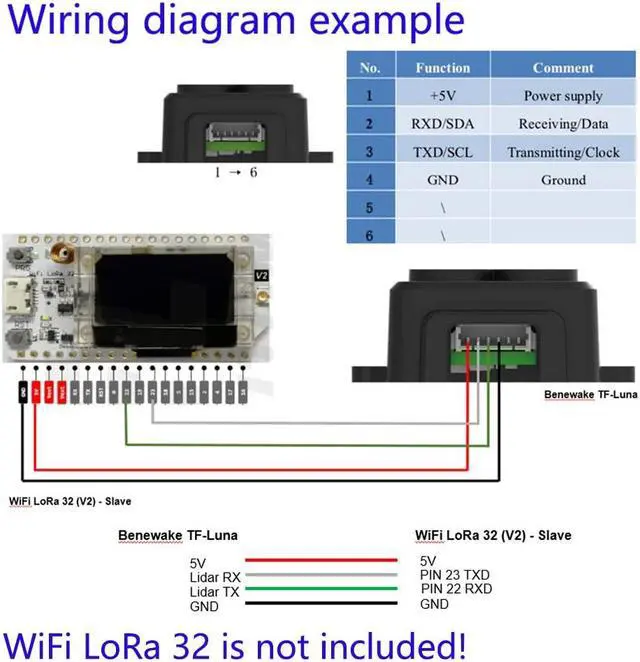

Note: If you use TF-Luna with WiFi_LoRa_32, make sure that your IDE has installed Heltec ESP32 Series Dev-boards in your Board Manager and have installed Heltec ESP21 Dev-Boards in your sketch.
Major Applications:
Traffic Monitoring
Obstacle detection
Level measurement
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Machine control and safety sensors
Distance measuring instrument

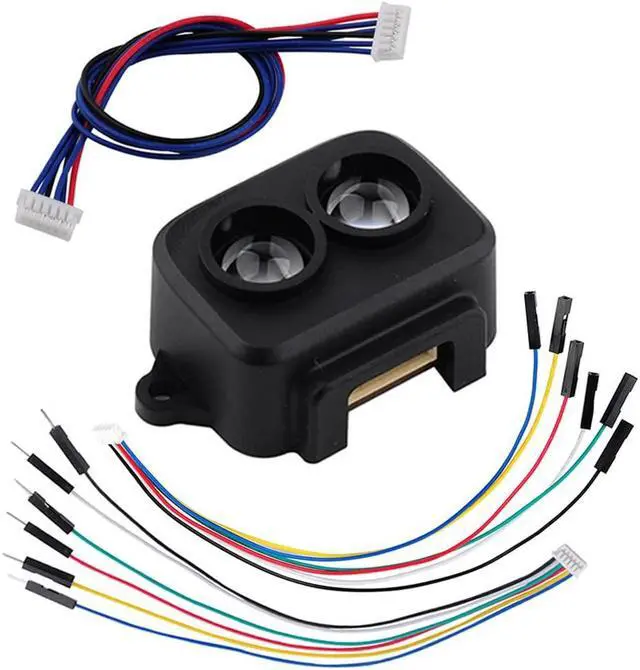

Package Included:
1 X TF-Luna LiDAR Range Finder Sensor Module
1 X 1.25 mm-6Pin Male to Male connector wire
1 X 1.25 mm-6Pin Male Connector to Male Dupont Cable
1 X 1.25 mm-6Pin Male Terminal to Female Dupont Wire
Model: TF-Luna
Operating range: 0.2 m~8m
Supply voltage: 5V+- 0.1V
Average current: <=70mA
Peak current: 150mA
Average power: 350mW
Communication interface: UART/IIC, default UART, can set IIC by wiring pins
Frame rate: 1~250Hz ( adjustable )
Communication level: TTL Level ( 3.3V )
Default baud rate: 115200
Data bit: 8
Stop bit: 1
Parity check: None
Light source: VCSEL
Wavelength: 850nm
Operating temperature: -20degC~75degC
Certification: CE, FCC, ROHS
Note: If you use TF-Luna with WiFi_LoRa_32, make sure that your IDE has installed Heltec ESP32 Series Dev-boards in your Board Manager and have installed Heltec ESP21 Dev-Boards in your sketch.
Major Applications:
Traffic Monitoring
Obstacle detection
Level measurement
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Machine control and safety sensors
Distance measuring instrument
Package Included:
1 X TF-Luna LiDAR Range Finder Sensor Module
1 X 1.25 mm-6Pin Male to Male connector wire
1 X 1.25 mm-6Pin Male Connector to Male Dupont Cable
1 X 1.25 mm-6Pin Male Terminal to Female Dupont Wire
