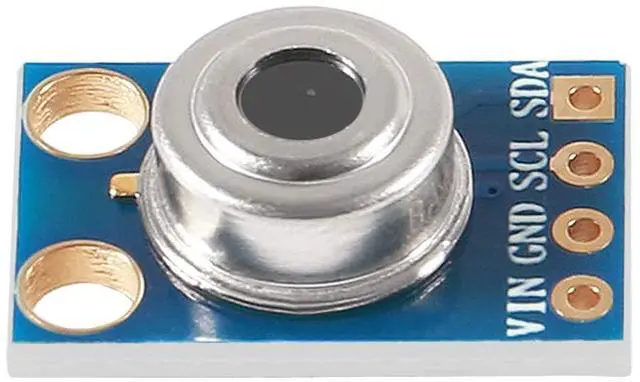

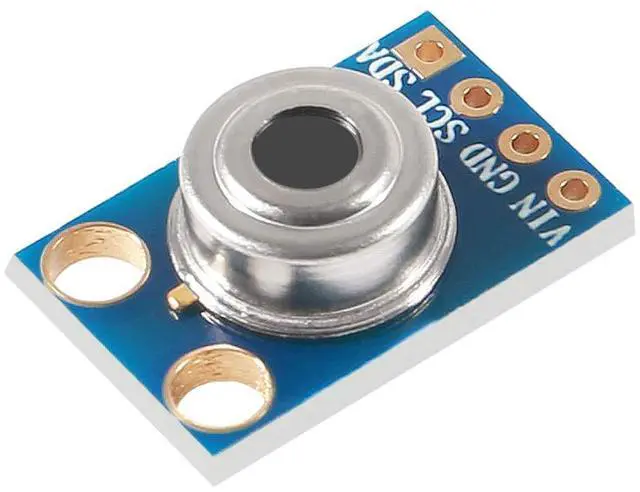

ACEIRMC 2pcs GY-906 MLX90614ESF Non-Contact Infrared Temperature Sensor Module IIC I2C Serial for Arduino
- MLX90614 is an infrared thermometer for non-contact temperature measurements.
- The user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120degC, with an output resolution of 0.14degC.
- The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02degC.
- Integrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
- Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Small size, low cost

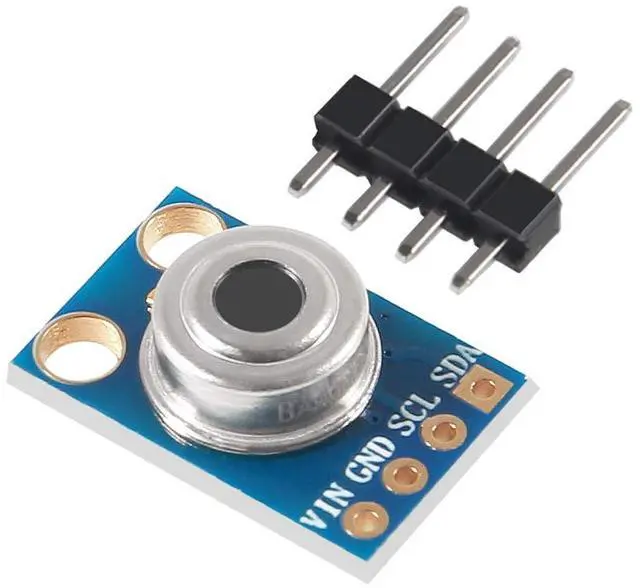

Mounted on a breakout board with two types of pins

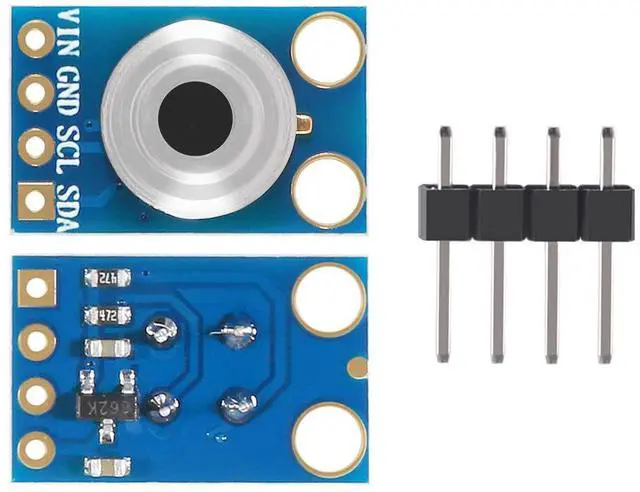

10k Pull up resistors for the I2C interface with optional solder jumpers
Easy to integrate
Factory calibrated in wide temperature range:
-40... +125degC for sensor temperature and
-70... +380degC for object temperature.
High accuracy of 0.5 degC over wide temperaturerange (0... +50degC for both Ta and To) High (medical) accuracy calibration
Measurement resolution of 0.02 degC
Single and dual zone versions
SMBus compatible digital interface
Customizable PWM output for continuousreading
Simple adaptation for 8... 16V applications
Sleep mode for reduced power consumption
Different package options for applications andmeasurements versatility
Automotive grade
Applications Examples:
High precision non-contact temperaturemeasurements
Thermal Comfort sensor for Mobile AirConditioning control system
Temperature sensing element for residential, commercial and industrial building airconditioning Windshield defogging
Automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare
Livestock monitoring
Movement detection
Multiple zone temperature control - up to 127sensors can be read via common 2 wires
Thermal relay / alert
Body temperature measurement
Package included:

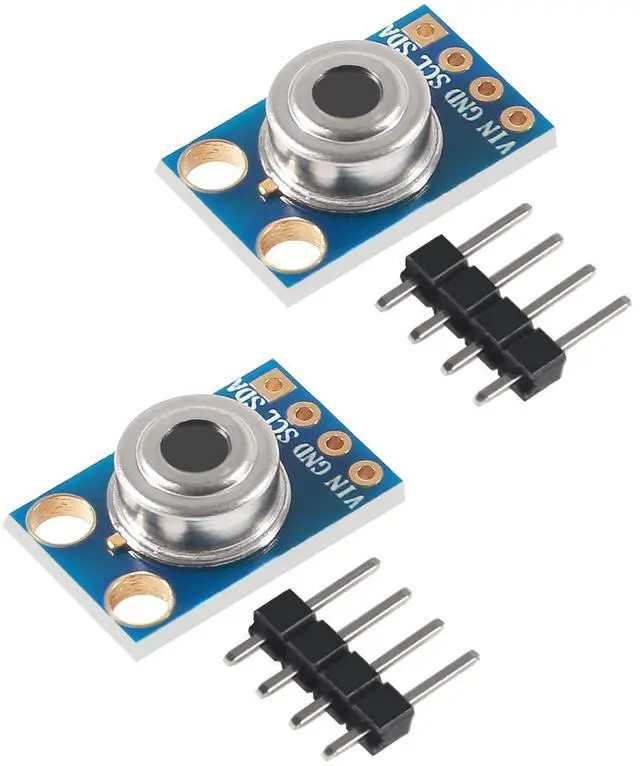

2* MLX90614 Infrared Temperature Sensor Module
Small size, low cost
Mounted on a breakout board with two types of pins
10k Pull up resistors for the I2C interface with optional solder jumpers
Easy to integrate
Factory calibrated in wide temperature range:
-40... +125degC for sensor temperature and
-70... +380degC for object temperature.
High accuracy of 0.5 degC over wide temperaturerange (0... +50degC for both Ta and To) High (medical) accuracy calibration
Measurement resolution of 0.02 degC
Single and dual zone versions
SMBus compatible digital interface
Customizable PWM output for continuousreading
Simple adaptation for 8... 16V applications
Sleep mode for reduced power consumption
Different package options for applications andmeasurements versatility
Automotive grade
Applications Examples:
High precision non-contact temperaturemeasurements
Thermal Comfort sensor for Mobile AirConditioning control system
Temperature sensing element for residential, commercial and industrial building airconditioning Windshield defogging
Automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare
Livestock monitoring
Movement detection
Multiple zone temperature control - up to 127sensors can be read via common 2 wires
Thermal relay / alert
Body temperature measurement
Package included:
2* MLX90614 Infrared Temperature Sensor Module
