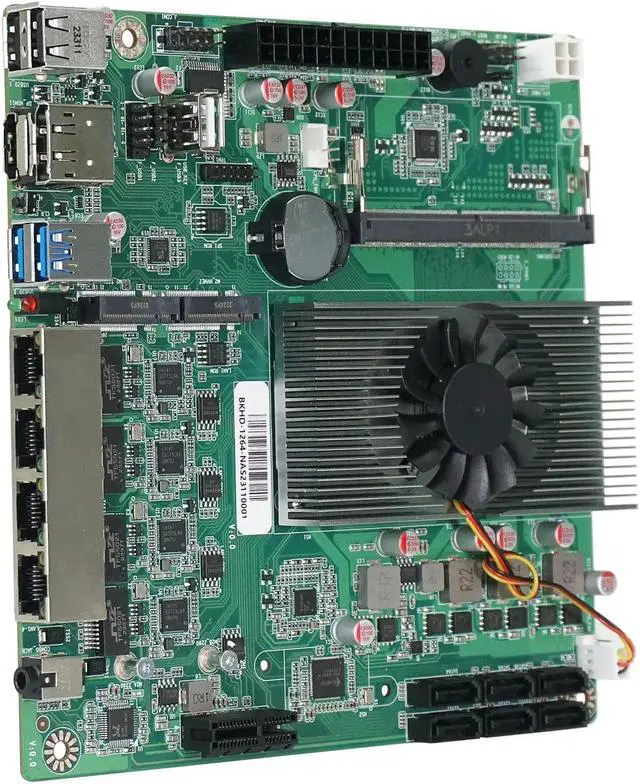

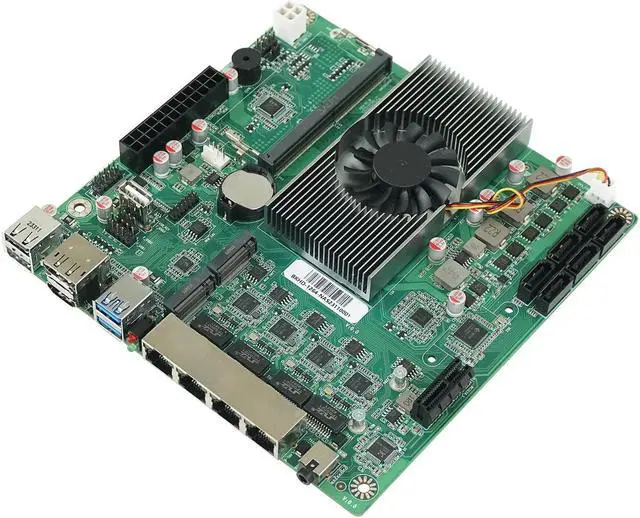

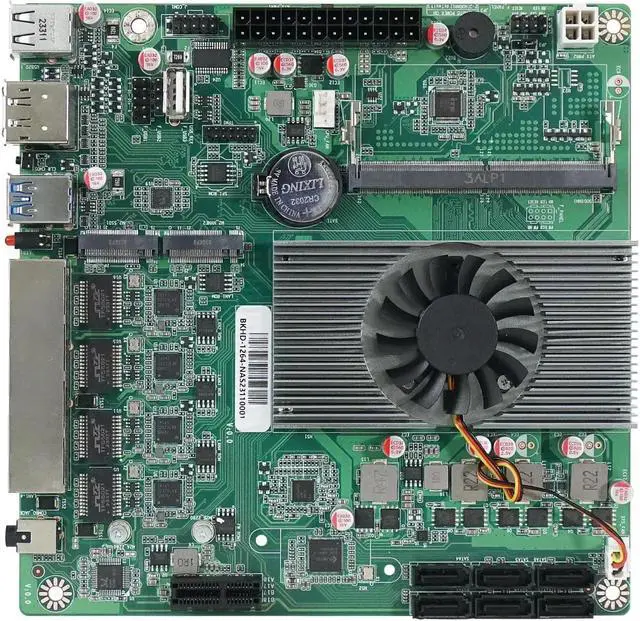

N100 Industrial Motherboard NAS 4 Cores 4 Threads Low Power Processor 4x2.5G i226 Network M.2 Slot 6xSATA DP HDMI 2.0 PCIE x1 .1*M2_ SSD NVME/NGFF+ 1*M.2_ NVME

Reminder: The product will self check the memory when it is first turned on, and the startup may be slower. Please pay attention. Feature *. Proces sor N-series N100 processor *. 1*DDR5 SODIMM, 4800MHz, 16GB *. 4*Intel 1226 2.5G adaptive network port *1*DP+ 1*HD, 2*USB 3.0 + 6*USB 2.0 *. 1*M2_ SSD NVME/NGFF+ 1*M. 2_ NVME *1*PCIE1X+ 6*SATA
Specification CPU: Processor N-series N100 processor
BIOS: AMI 128Mb BIOS, ACPI supported, Supports Power on startup
Memory: 1*DDR5 SODIMM up to 16GB
Graphics controller: CPU integration
DP: 1*DP interface
HD: 1*HD interface
Multi-display support: Support DP+ HD synchronous or asynchronous dual display output
SATA: 6*SATA, 6Gb/s
Storage: M2_ SSD 1*M2_ SSD NVME/NGFF+1*M.
2_ NVME Network: RJ45 4*Intel 1226 2.5G adaptive network port
Audio: Line Out ALC897 chip, Line out Mic 2-in-1 interface
USB 3.0: External 2*USB 3.0
USB 2.0: External 2*USB 2.0, built-in 4*USB 2.0
Serial port: RS232 1*COM
Hardware encryption: TPM TPM 2.0 hardware encryption (pin header)
Watchdog: Supports 4~255 seconds watchdog timer
Voltage: Support +12V, 3.3V, 5V, CPU Vcore, DDR Power voltage detection
Temperature: Support CPU temperature detection
Fan: Supports CPU fan speed detection and intelligent fan control
Power supply: ATX 24PIN+ 4PIN ATX power supply
Operating temperature: -20~60 degrees Celsius
Storage temperature: -20~60 degrees
Celsius Working humidity: 0~90% RH, relative humidity without condensation
Storage humidity: 0~90% RH, relative humidity without condensation
PCB specifications: Board size MINI-ITX (170*170mm)
