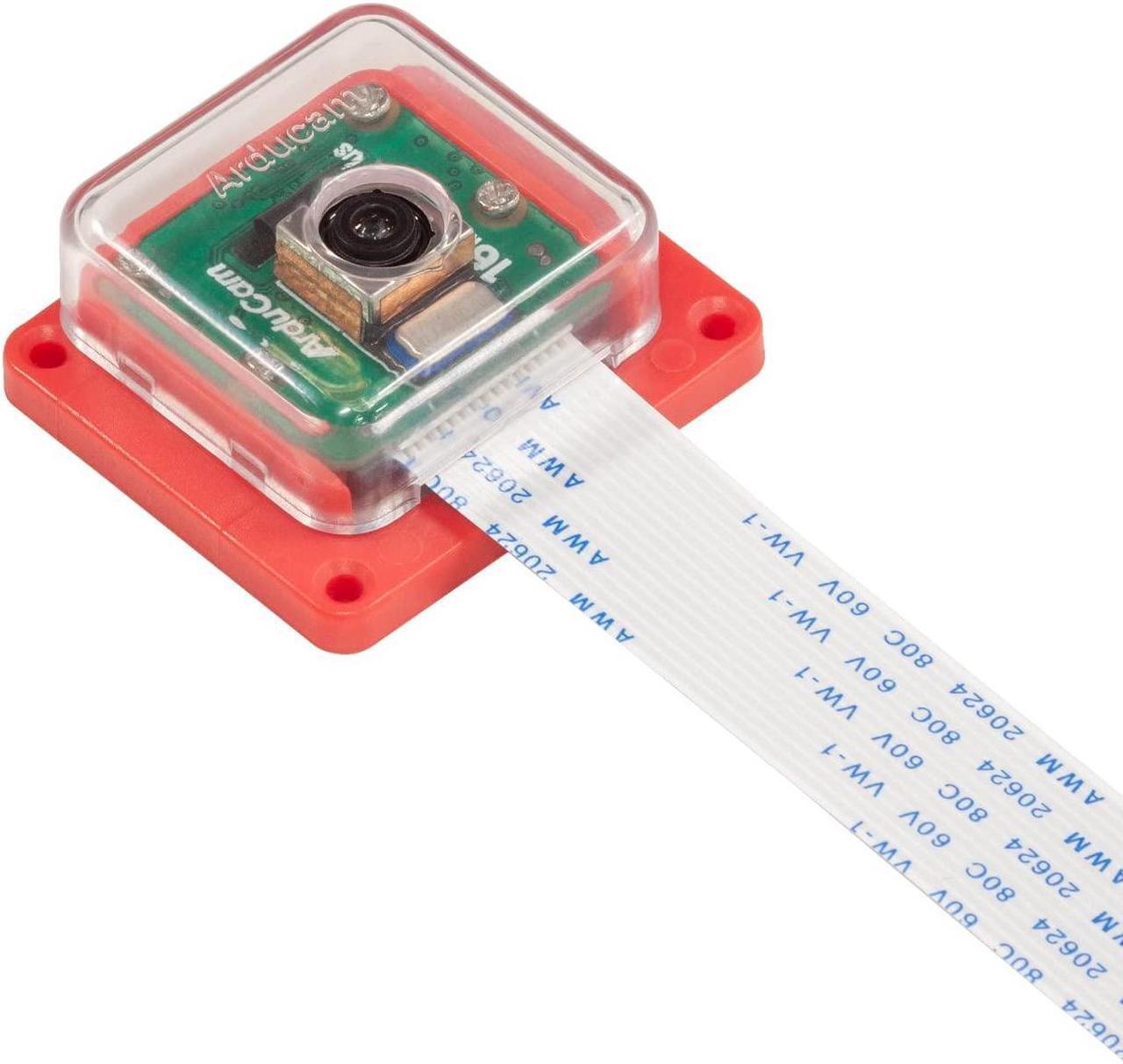

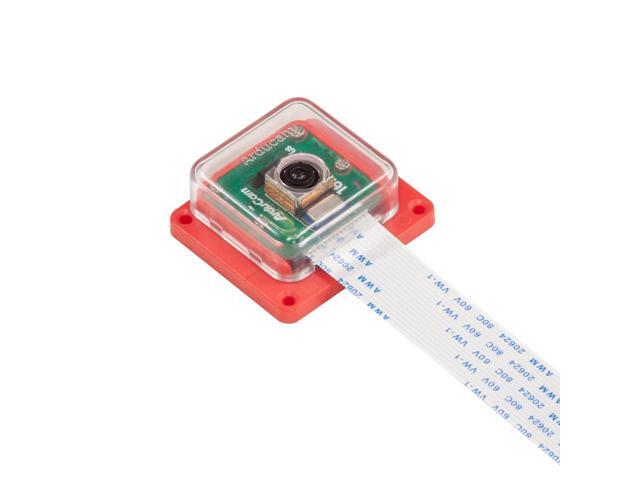

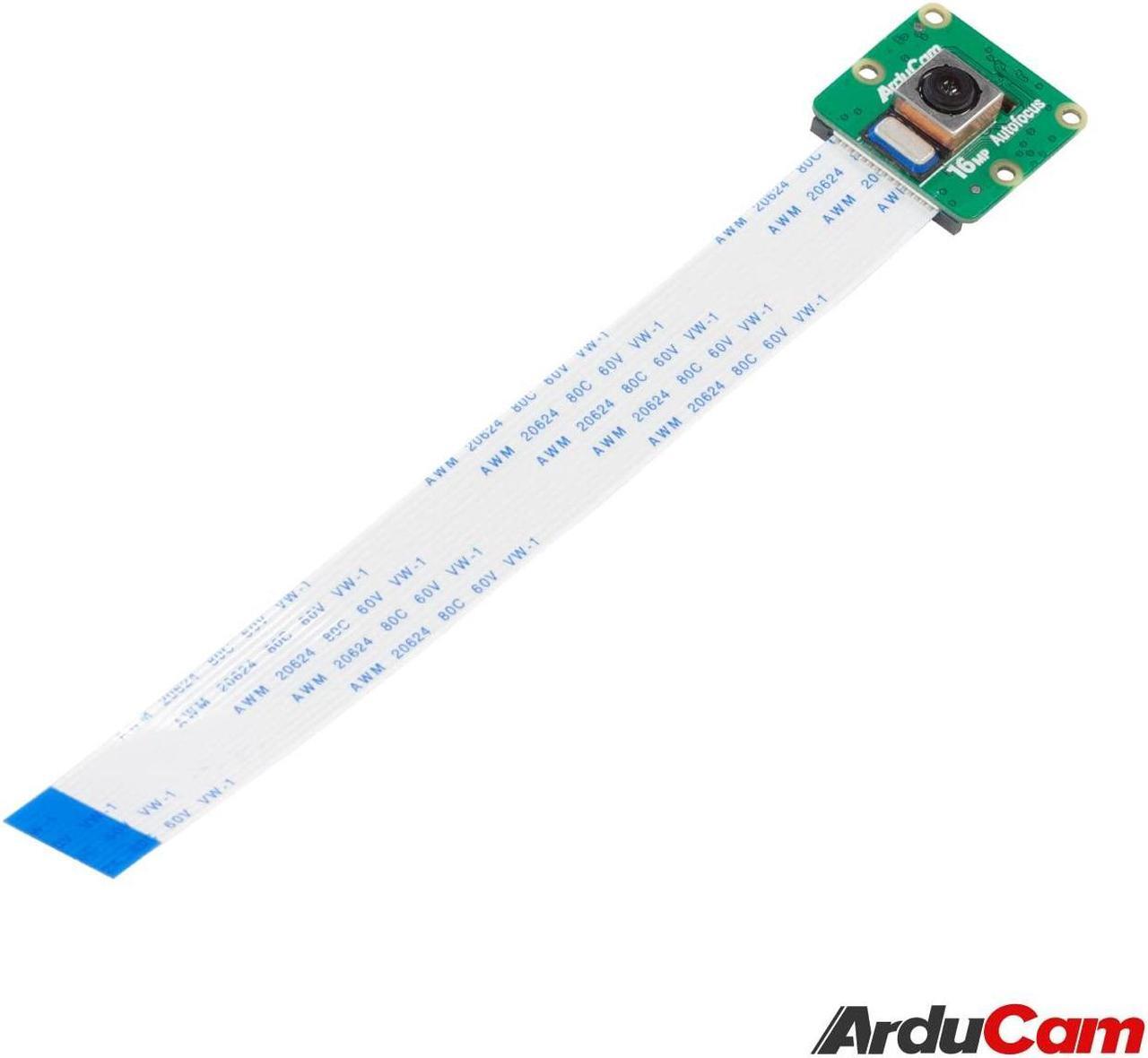

Arducam 16MP Autofocus Camera Module for Raspberry Pi with ABS Case, IMX519 16 Megapixel High Resolution Autofocus Camera for All Raspberry Pi Models
- [(16MP for All Pis)] The Arducam designed for Raspberry Pi camera features a 16MP IMX519 sensor with a pixel resolution of 4656 x 3496, twice as high as the v2 camera and 40% higher than the HQ camera; Compatible with any Raspberry Pi board with a MIPI/CSI interface; Unlike the native Pi camera, this camera requires some simple script configuration before use, and does not support raspbian.
- [(IMX519 AF Camera Moudle)] Built-in autofocus motor allows you to get focus quickly so that you can focus to infinity no matter where you place your camera. The minimum focus distance is 10cm, and the longest allowed exposure time is 200 seconds.
- [(Crisper Images/Videos)] The 16 megapixel camera can capture 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second, and also provides an effective 80-degree field of view.
- [(Camera Module V3/V2/V1 Size)] The autofocus camera module has the same size as the raspberry pi camera module V3/V2/V1, the package
+
+
Overview
Specs
Reviews
This high-resolution autofocus camera offers twice the resolution of the standard 8 megapixels Raspberry Pi HQ camera while maintaining its compact form factor.
Specfication & Comparison Chart
Sensor: Sony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 um x 1.22 um
pixel size 7.103 mm diagonal (Type 1/ 2.534 )
Output: RAW10/8, COMP8
Lens: Autofocus; f/ 1.75;
EFL: 4.28;
FoV: 80deg; Focus Range: 10 cm ~ infinite
IR cut Filter: Integrated
Tripod mount: 1/4"-20
Enclosure: ABS, also compatible w/ camera module v1 & v2.
Ribbon Cable Length: 150mm
Specfication & Comparison Chart
Sensor: Sony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 um x 1.22 um
pixel size 7.103 mm diagonal (Type 1/ 2.534 )
Output: RAW10/8, COMP8
Lens: Autofocus; f/ 1.75;
EFL: 4.28;
FoV: 80deg; Focus Range: 10 cm ~ infinite
IR cut Filter: Integrated
Tripod mount: 1/4"-20
Enclosure: ABS, also compatible w/ camera module v1 & v2.
Ribbon Cable Length: 150mm
