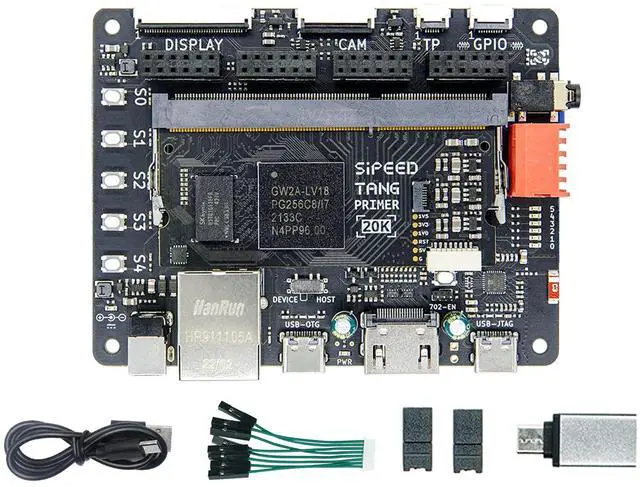

Main image of Sipeed Tang Primer 20K Gowin GW2A FPGA GoAI Development Board Kit Minimum System with DSP LvDs Interface and BSRAM Resources onboard 1GB DDR3 and PMIC Running RISC-V Code

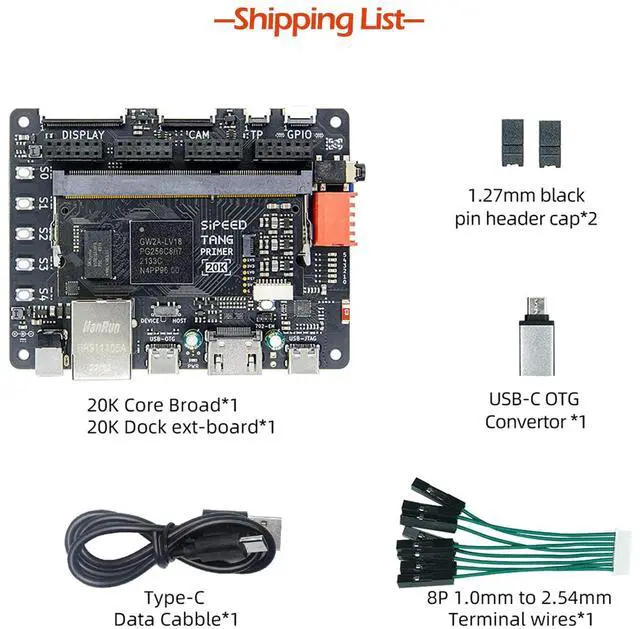

Alt view image 2 of 5 - Sipeed Tang Primer 20K Gowin GW2A FPGA GoAI Development Board Kit Minimum System with DSP LvDs Interface and BSRAM Resources onboard 1GB DDR3 and PMIC Running RISC-V Code

Alt view image 3 of 5 - Sipeed Tang Primer 20K Gowin GW2A FPGA GoAI Development Board Kit Minimum System with DSP LvDs Interface and BSRAM Resources onboard 1GB DDR3 and PMIC Running RISC-V Code

Alt view image 4 of 5 - Sipeed Tang Primer 20K Gowin GW2A FPGA GoAI Development Board Kit Minimum System with DSP LvDs Interface and BSRAM Resources onboard 1GB DDR3 and PMIC Running RISC-V Code

Alt view image 5 of 5 - Sipeed Tang Primer 20K Gowin GW2A FPGA GoAI Development Board Kit Minimum System with DSP LvDs Interface and BSRAM Resources onboard 1GB DDR3 and PMIC Running RISC-V Code

Shop All ARCTIC Products | Visit Riveira Store

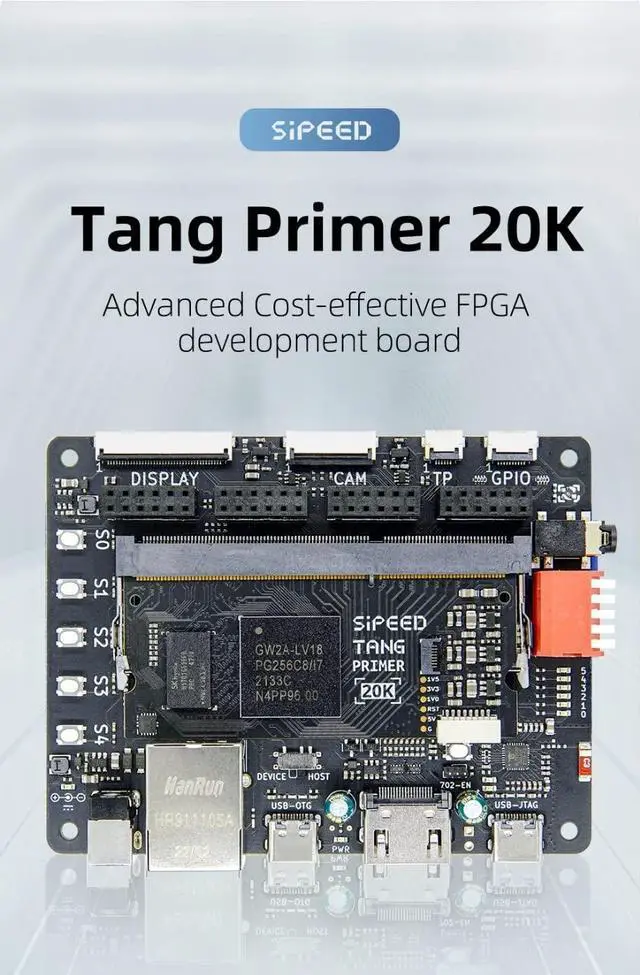

Sipeed Tang Primer 20K Gowin GW2A FPGA GoAI Development Board Kit Minimum System with DSP LvDs Interface and BSRAM Resources onboard 1GB DDR3 and PMIC Running RISC-V Code

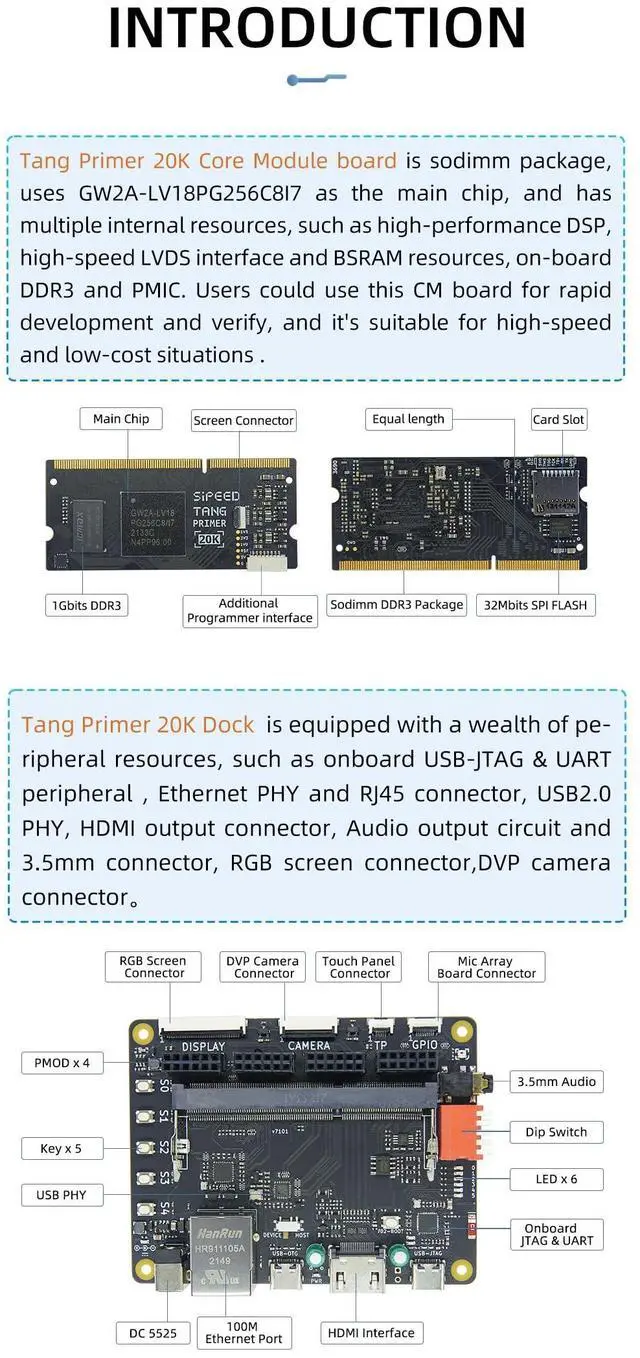

[High-performance DSP] Sipeed Tang Primer 20K Core Module board is sodimm package,uses GW2A-LV18PG256C8I7 as the main chip, and hasmultiple internal resources, such as high-performance DSP,high-speed LvDs interface and BSRAM resources, on-boardDDR3 and PMIC. Users could use this CM board for rapiddevelopment and verify, and it's suitable for high-speedand low-cost situations.
[Run RISC-V Code] Users can burn the hardware code bitstream file ofPicoRV/Litex to Gw2A, and then use GW2A as acommon MCU. lt can run RISC-V code, conduct RISC-v soft core experiments
[Verilog Design] Users use Verilog to design custom hardware func-tions on the basic of PicoRV/Litex lP core, and at thesame time use C language to write code running onPicoRV/Litex core.

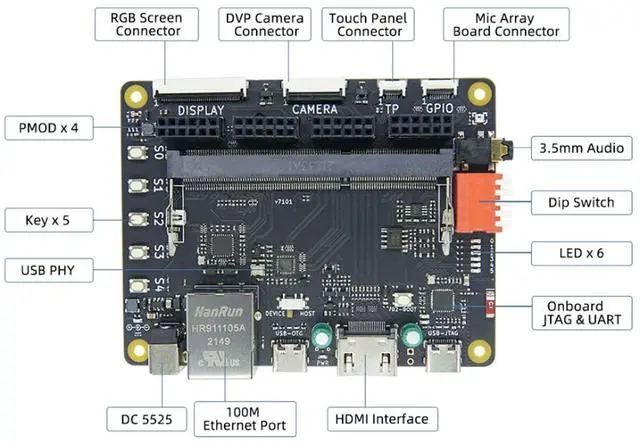

[Rich Peripheral interfaces]Sipeed Tang Primer 20K Dock is equipped with a wealth of pe-ripheral resources, such as onboard USB-JTAG & UARTperipheral , Ethernet PHY and RJ45 connector, USB2.0PHYHDMIl output connector,Audio outpu

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

-Specification-
Brand Name: MaixPy
Demo Board Type: FPGA
Memory128M DDR313Row x 10Col x 8banks x 16bits
Flash32Mbits NOR FlashW25Q32JVS
DebuggerJtag + UartJST SH 1.0 8Pins connector
SD card slot 1Push-pull type
Display8Pins spi lcd connector
Package 204P DDR3
Avaliable IO117
RGB Interface1x RGB565 40P FPC Connector
DVP Interface1x 24P FPC Connector
Mic array Interface1x 10P FPC Connector
Touch Interface: 1x 4P FPC Connector
PMOD Interface: 4
3.5 mm headphone Jack: 1x LPA4809MSF driver
DIP switch: 1x 5P DIP switch
Slide switch: 1x Switch USB function
