FanyiTek 3.4 inch 800x800 IPS MIPI 330nit Round LCD Screen and 39 pins Controller Board,Micro USB Power Port
- Round MIPI screen3.4" 800x800 VS34003C39 cirle display,IPS full viewing angle,outline size:94.9x96.95x2.3(W×H×D)mm,display area:87.6x 87.6(W×H)mm,330nit high brightness ,WLED backlight ,input voltage: 2.8V .
- Controller boardVideo input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- Input Power5Vdc More than 1A,Pls prepare it seperately .

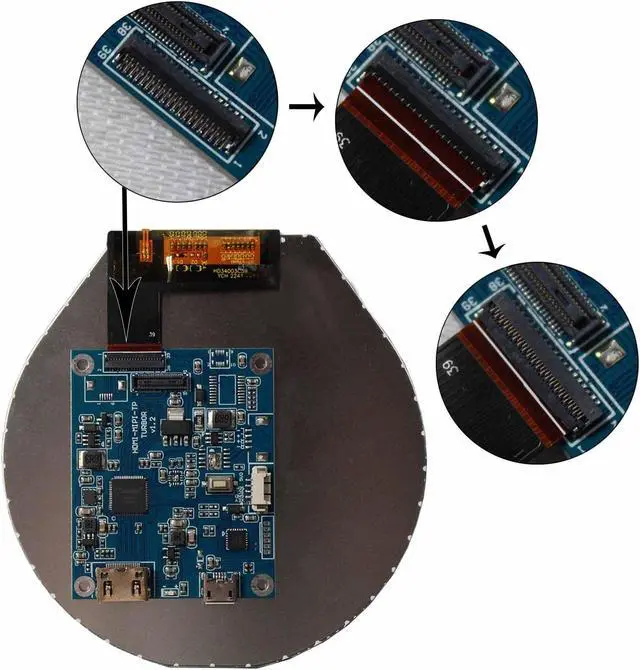

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
- Packing lists1× LCD Board for 40Pin VS-TURBOR-04 ,1× 3.4inch VS34003C39 800x800 LCD Screen
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

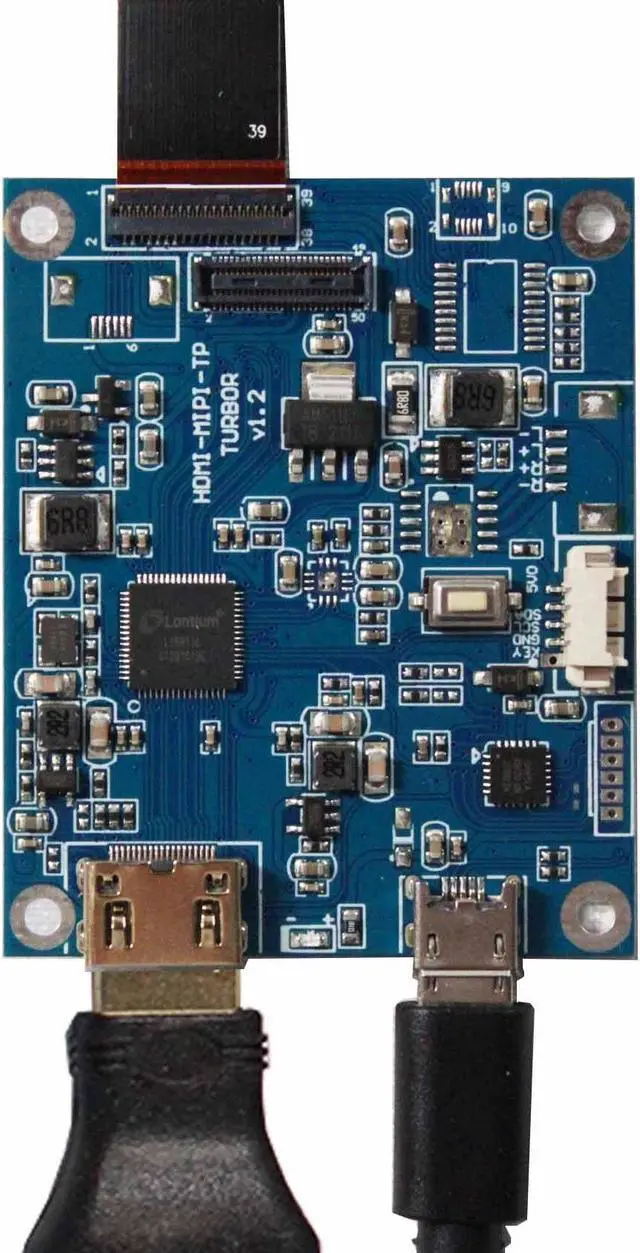

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
3.4" VS34003C39 800X800 LCD Screen:
Display Mode IPS MVA, Normally Black, Transmissive
Resolution 800 (RGB) x800
Outline Size 94.9 x 96.95 x 2.3 (W×H×D)
Display Area 87.6 x 87.6 (W×H)
Brightness 330 cd/m² (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface Mipi, 39 pins,
Backlight WLED
Input Voltage 2.8V (Typ. )

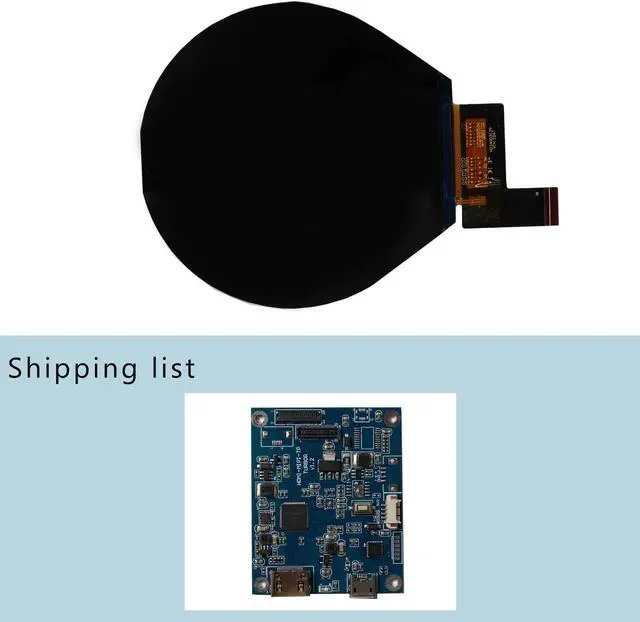

Packing list:
1× LCD Board for 40Pin VS-TURBOR-04
1× 3.4 inch VS34003C39 800x800 LCD Screen
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
3.4" VS34003C39 800X800 LCD Screen:
Display Mode IPS MVA, Normally Black, Transmissive
Resolution 800 (RGB) x800
Outline Size 94.9 x 96.95 x 2.3 (W×H×D)
Display Area 87.6 x 87.6 (W×H)
Brightness 330 cd/m² (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface Mipi, 39 pins,
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1× LCD Board for 40Pin VS-TURBOR-04
1× 3.4 inch VS34003C39 800x800 LCD Screen
