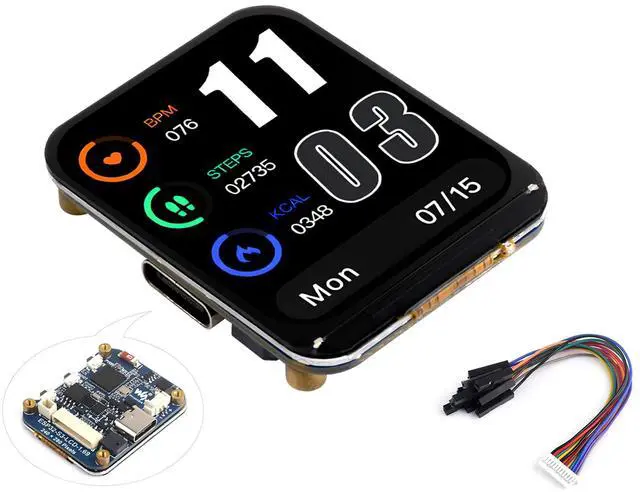

Main image of ESP32-S3 Development Board with 1.69inch LCD IPS Display 240×280 Pixels 262K Color,USB Type-C Embedded ST7789V2 Display Driver, Accelerometer and Gyroscope Sensor, Support 2.4GHz W-i-F-i/Blue-too-th 5

Alt view image 2 of 5 - ESP32-S3 Development Board with 1.69inch LCD IPS Display 240×280 Pixels 262K Color,USB Type-C Embedded ST7789V2 Display Driver, Accelerometer and Gyroscope Sensor, Support 2.4GHz W-i-F-i/Blue-too-th 5

Alt view image 3 of 5 - ESP32-S3 Development Board with 1.69inch LCD IPS Display 240×280 Pixels 262K Color,USB Type-C Embedded ST7789V2 Display Driver, Accelerometer and Gyroscope Sensor, Support 2.4GHz W-i-F-i/Blue-too-th 5

Alt view image 4 of 5 - ESP32-S3 Development Board with 1.69inch LCD IPS Display 240×280 Pixels 262K Color,USB Type-C Embedded ST7789V2 Display Driver, Accelerometer and Gyroscope Sensor, Support 2.4GHz W-i-F-i/Blue-too-th 5

Alt view image 5 of 5 - ESP32-S3 Development Board with 1.69inch LCD IPS Display 240×280 Pixels 262K Color,USB Type-C Embedded ST7789V2 Display Driver, Accelerometer and Gyroscope Sensor, Support 2.4GHz W-i-F-i/Blue-too-th 5

Shop All ARCTIC Products | Visit StarDragon Store

ESP32-S3 Development Board with 1.69inch LCD IPS Display 240×280 Pixels 262K Color,USB Type-C Embedded ST7789V2 Display Driver, Accelerometer and Gyroscope Sensor, Support 2.4GHz W-i-F-i/Blue-too-th 5

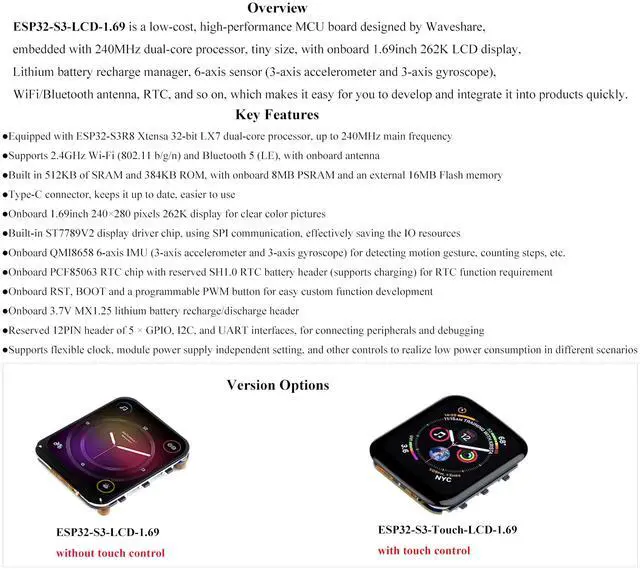

ESP32-S3-LCD-1.69 is high-performance MCU board designed by Waveshare, embedded with 240MHz dual-core processor, tiny size. with onboard 1.69inch 262K LCD display, Lithi-um batte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), W-i-F-i/Blue-too-th antenna, R T C, and so on, which makes it easy for you to develop and integrate it into products quickly.
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.

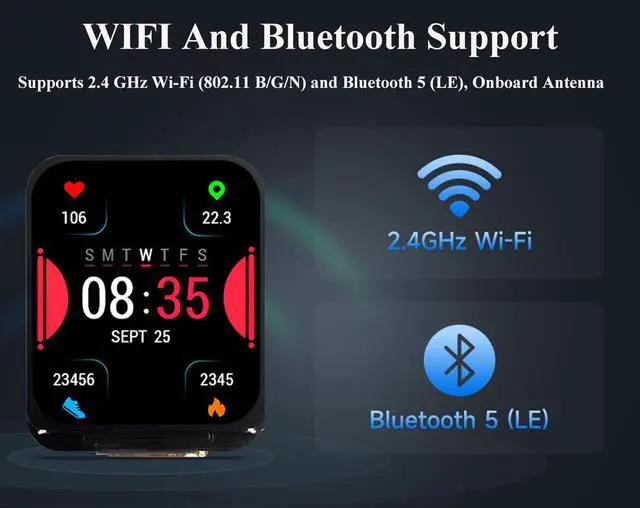

Supports 2.4G H z W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (LE), with onboard an tenna.

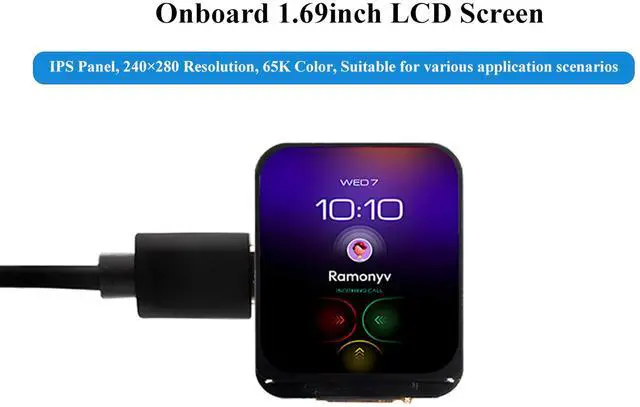

Onboard 1.69inch 240×280 pixels 262K display, IPS Panel for clear color pictures. Suitable for various application scenarios.

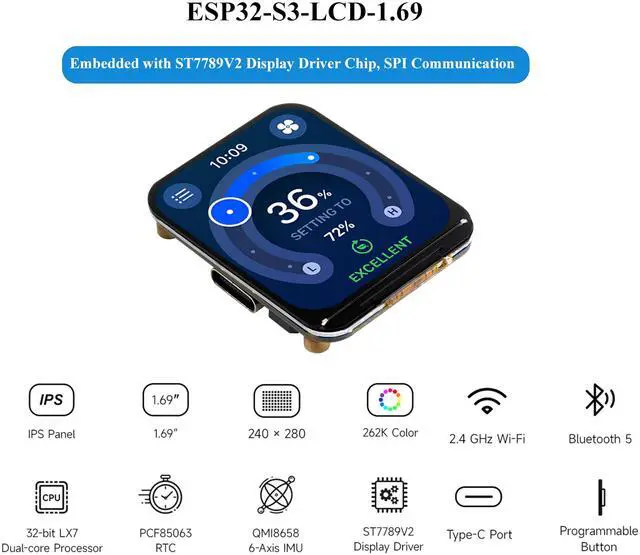

Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources.
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 R T C chip with reserved SH1.0 RTC batte-ry
