Orange Pi 5 Max 16GB RAM LPDDR5 Rockchip RK3588 Development Board, 8K Video Decoding 2.4GHz Frequency M.2 PCIE 2.5G LAN Orange Pi 5 MAX Single Board Computer

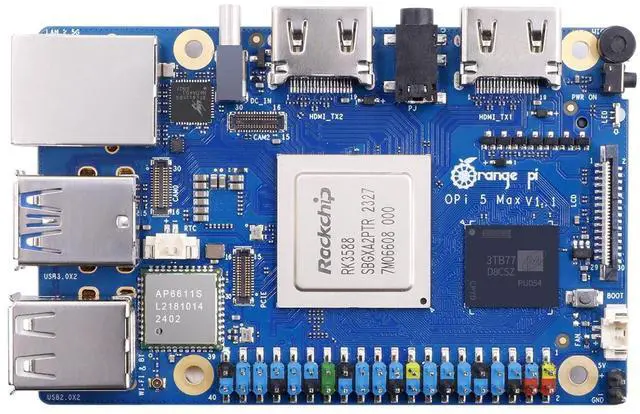

High Performance RK3588 - Orange Pi 5 Max uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 ( 2.4GH z), 4 Cortex-A55 ( 1.8GH z) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to 2.4GH z, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2, and Vulkan 1.2 ^^ LPDDR5 8K Video Decoding - Orange pi 5 max has LPDDR5, with up to 8K display processing capability, the powerful video codec allows for clearer images and more detailed picture quality, Dual HDMI 2.1, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision.

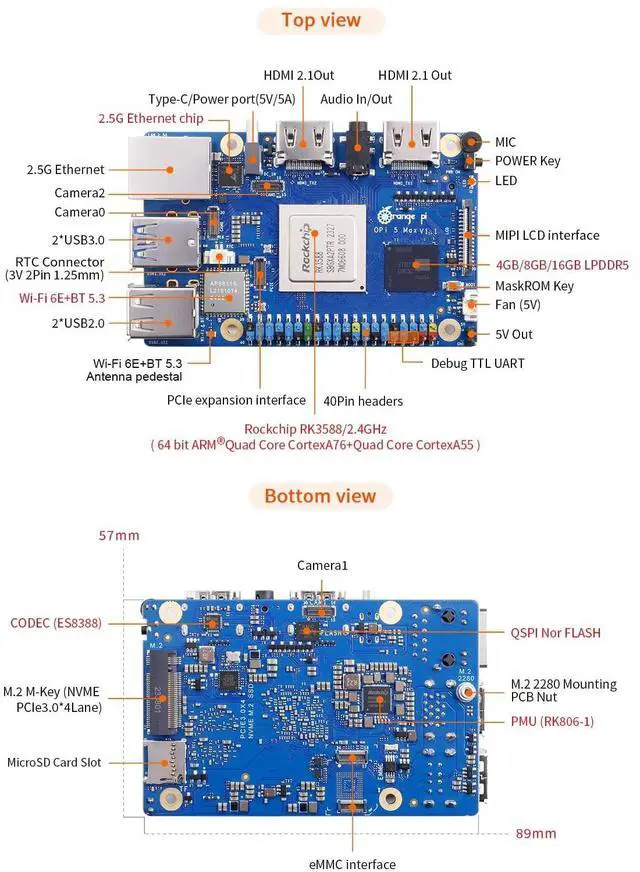

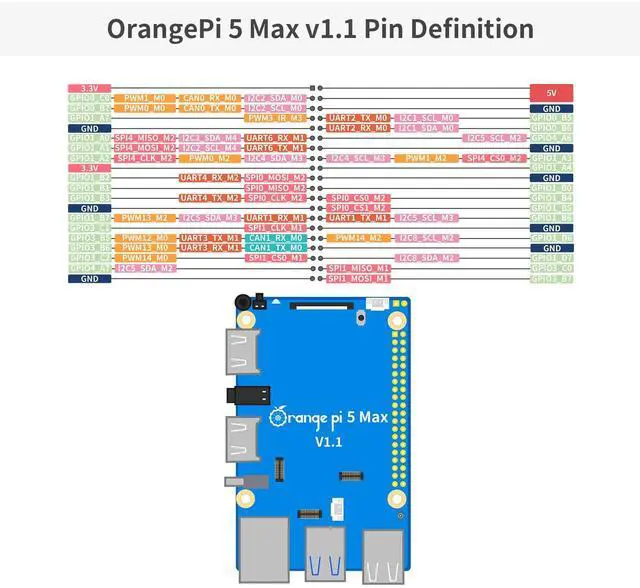

supports eMMC socket and onboard eMMC (either one ) ^^ 6TOPS High Computing Power - Orange Pi 5 Max embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most terminal devices, suitable for developing AI applications. ^^ Wi-Fi 6E+BT 5.3 with BLE Support - Orange pi 5 Max has WiFi 6E + Bluetooth 5.3, supports BLE, stronger and more stable signals and easier and faster network transmission ^^ Rich Ports - OrangePi 5 Max provides abundant interfaces, including HDMI output, GPIO interface, USB 2.0, USB 3.0, 3.5 mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.

2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs. ^^ Wide Range of Application Scenarios - Orange Pi 5 Max is compact, PCB measuring only 89mmX57mmX 1.6 mm, and powerful enough to be widely used in high-end tablets, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home, etc., covering various industries of AIoT. OrangePi 5 Max supports Orangepi OS (Droid), Orangepi OS (Arch), Orangepi OS (OH), Ubuntu, Debian, Android12 operating system.

^^ Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.
