$38.99
Meet Your Seller

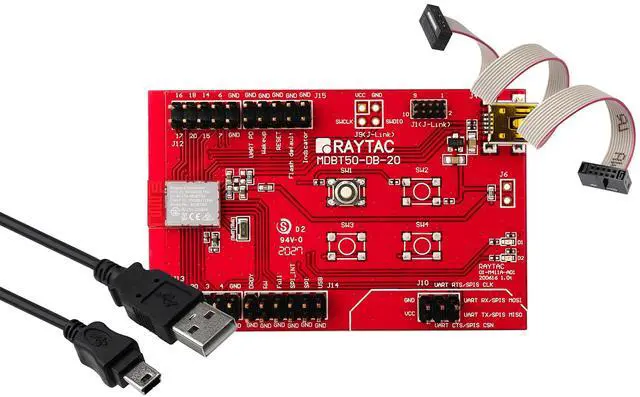

MDBT50-DB Nordic nRF52820 Module Demo Board Dev Kit 18 GPIO Bluetooth Module BT5.2 FCC IC CE Telec KC SRRC (PCB Antenna)
- Nordic nRF52820 SoC module demo board Dev Kit / MDBT50-P256R (PCB Antenna)
- Supports multiprotocol for Bluetooth Low Energy, ANT+, Zigbee, Thread (802.15.4)
- BT5.2, FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC Pre-Certified
- 18 GPIO / 8.4 x 13.2 x 2.1 mm / 1MB Flash Memory / 256kB RAM
- Interface: USB & I2C & SPI & UART
- RoHS & Reach Compliant
- Operation Temp.: -40C to 105 C (-40F~221F) / 1.7 to 5.5 V supply voltage
- Find article "How To Use MDBT50Q Demo Board (MDBT50Q-DB-40 / MDBT50Q-DB-33) for hardware setup
- Raytac Part No. MDBT50-DB-P20
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Raytacs MDBT50-DB Module demo board Dev Kit deployed Raytac MDBT50 series module (MDBT50-256R or MDBT50-P256R) is a BT 5.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52833 SoC solution, which
incorporates: GPIO, SPI, UART, I2C, and USB interfaces for connecting peripherals and sensors.
Features: Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), IEEE 802.15. 4 ( & Zigbee) & 2.4G hz RF & ANT+ upon customers preference Compact size with (L) 8.4 x (W) 13.2 x (H) 2.1 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
incorporates: GPIO, SPI, UART, I2C, and USB interfaces for connecting peripherals and sensors.
Features: Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), IEEE 802.15. 4 ( & Zigbee) & 2.4G hz RF & ANT+ upon customers preference Compact size with (L) 8.4 x (W) 13.2 x (H) 2.1 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
