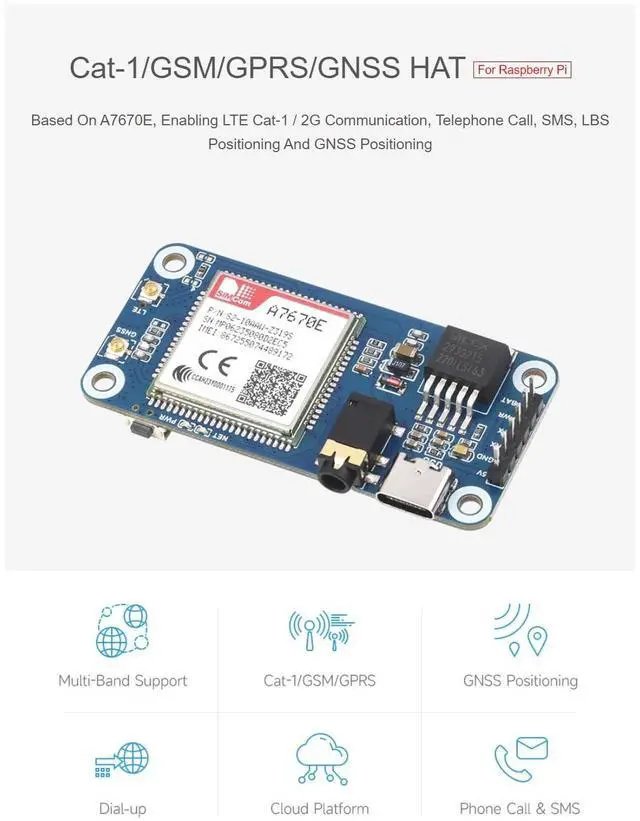

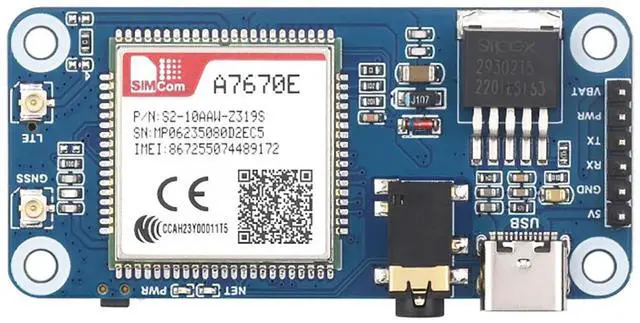

Coolwell Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi Raspberry Pi 5 4B+ 4B 3B+ 3B 2B+ Zero W WH Jetson Nano Based On A7670E Module GNSS Positioning Support LTE Cat-1 / 2G

FeaturesThe A7670E Cat-1/GNSS HAT is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps downlink rate and 5Mbps uplink rate. It supports Windows/Linux operating systems and multiple network protocols. The module sizeis the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications like remoteinformation processing, monitoring devices, POS, industrial routers, remote diagnosis, satellite positioning, and so on. Standard Raspberry Pi 40PIN GPIO extension header, fits Raspberry Pi series boardsSupports protocols including TCP/IP, HTTP (s), MQTT (s), FTP (s), and SSLSupports dial-up, telephone call, SMSSupports LBS base station positioning, it is able to get the approximate position info via mobile networkSupports GPS, BeiDou, GLONASS positioningTTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken wordsOnboard USB interface, for testing AT Commands, network communication, and so onOnboard audio jack for sound recording, making telephone calls, listening the TTS resulting speech, etc.

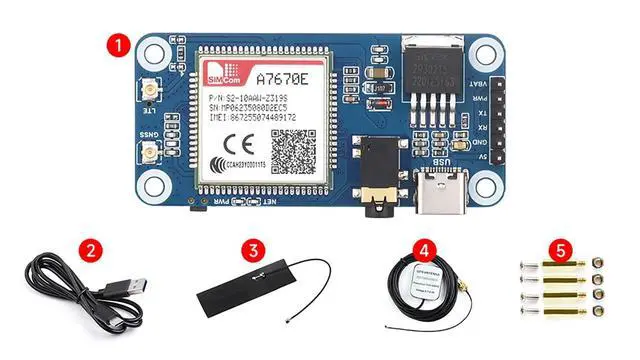

Breakout common used control pins of the A7670E module, make it easy to connect with hosts boards like for Arduino/STM32SIM card slot, supports 1.8V /3V SIM card2x LED indicators, easy to monitor the operating statusComes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)Package include1. A7670E Cat-1/GNSS HAT x12. USB-A to USB-C cable x13. FPC Antenna x14. GPS Antenna x15. Screws pack x1
