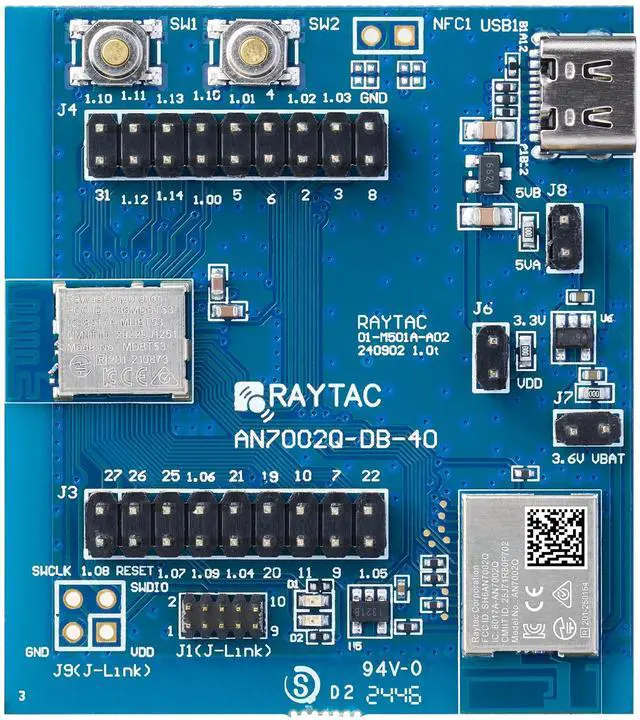

Nordic nRF7002 & nRF5340 WiFi+ Bluetooth Module Dev Kit Demo Board by Raytac AN7002Q+MDBT53 PCB Antenna
- Raytac Part No.: AN7002Q-DB-5340
- Nordic nRF7002 & nRF5340 SoC module demo board Dev Kit / AN7002Q-P+MDBT53-P1M
- Supports WiFi 6 Dual-band 2.4 GHz and 5 GHz operation in 1x1 (SISO) operation.
- Supports IEEE 802.11 ax and earlier standards (IEEE 802.11 a/b/g/n/ac)
- Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA), Basic Service Set (BSS) Coloring
- Supports multiprotocol for Bluetooth Low Energy, ANT+, Zigbee, Thread (802.15.4)
- WiFi 6, BT5.2, FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, Pre-Certified, RoHS & Reach Compliant
- Operation Temp.: -40C to 85 C (-40F~185F)
- Find article "How to Set Up the Development and Programming Environment for Raytac's AN7002Q-nRF5340 Demo Board (AN7002Q-DB-5340) for hardware setup
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Raytacs WiFi Bluetooth Module demo board Dev Kit deployed Raytac AN7002Q & MDBT53-P1Mmodule is a WiFi6 & BT 5.2 module designed based on Nordic nRF7002 & nRF5340 SoC solution
Features: Supports WiFi dual-band 2.4 GHz and 5 GHz band operation Supports IEEE 802.11 ax and earlier standards (IEEE 802.11 a/b/g/n/ac) Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA), Basic Service Set (BSS) Coloring Supports Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED, Wi-Fi Enhanced Open Supports WPA3, WPA2, WPA - Personal and Enterprise, Protected Management Frames Supports WMM, WMM - Power Save, Wi-Fi Agile Multiband, Wi-Fi Direct Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), IEEE 802.15. 4 ( & Zigbee) & 2.4G hz RF & ANT+ upon customers preference li> 3-wire or 4-wire coexistence interface and compatible with Raytac MDBT53 series module.
Features: Supports WiFi dual-band 2.4 GHz and 5 GHz band operation Supports IEEE 802.11 ax and earlier standards (IEEE 802.11 a/b/g/n/ac) Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA), Basic Service Set (BSS) Coloring Supports Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED, Wi-Fi Enhanced Open Supports WPA3, WPA2, WPA - Personal and Enterprise, Protected Management Frames Supports WMM, WMM - Power Save, Wi-Fi Agile Multiband, Wi-Fi Direct Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), IEEE 802.15. 4 ( & Zigbee) & 2.4G hz RF & ANT+ upon customers preference li> 3-wire or 4-wire coexistence interface and compatible with Raytac MDBT53 series module.
