VSDISPLAY 12.1 Inch 1024x768 IPS Panel 12.1'' 4:3 Aspect Ratio WLED LCD Screen with Audio LVDs Driver Controller Board for Industrial Machine Display
- Specification12.1'' 1024x768 IPS LCD Screen with audio LCD controller board VS-TY2660H-V661;Brightness 650 cd/m (Typ.);Contrast ratio 700:1 (Typ.) (TM)
- Size of LCDOutline size:275.3x238x10(HVD)mm;Display area:245.76 184.32(HV)mm
- Features12.1'' IPS LCD panel,supports audio input.Multiple use,fit for industrial machine replacement monitor display,secondary display
- ServiceAll the products are tested before package and shipment,if any problem of product,please feel free to contact us

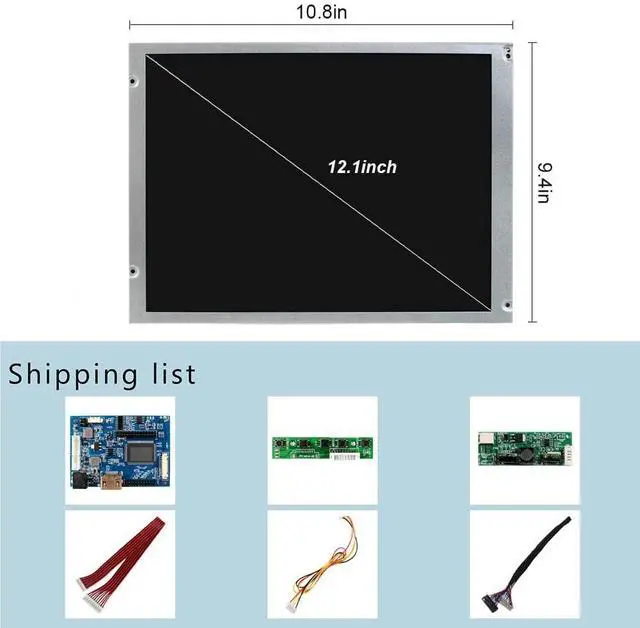

- Packing list1 Audio LCD Controller Board VS-TY2660H-V661;1 12.1inch VS121T-003A 1024x768 IPS LCD Screen;1 LVDS Cable;1 Keyboard With Cable(Please notice that there is no power supply in the package,pls prepare by yourself)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

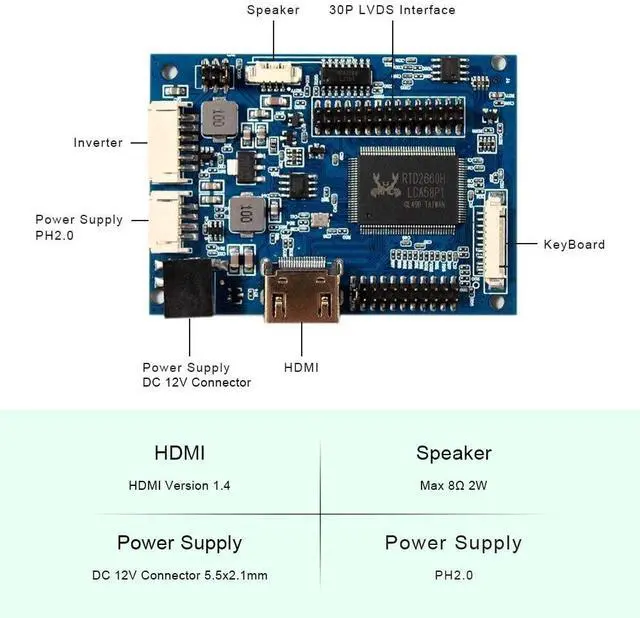

LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WAudio Output: Speaker (4Pin
PH 1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 12.1" VS121T-003A 1024x768 IPS
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024 (RGB) 768Outline Size 275.3 x238x10mm (HVD) Display Area 245.76 184.32 mm (HV) Brightness 650 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) Signal Interface Parallel LVDS (1 ch, 6/8-bit), 20 pins, Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 12.1 inch VS121T-003A 1024x768 IPS LCD Screen1 LVDS Cable1 Keyboard With Cable(Please notice that there is no power supply in the package, pls prepare by yourself)
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WAudio Output: Speaker (4Pin
PH 1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 12.1" VS121T-003A 1024x768 IPS
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 1024 (RGB) 768Outline Size 275.3 x238x10mm (HVD) Display Area 245.76 184.32 mm (HV) Brightness 650 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) Signal Interface Parallel LVDS (1 ch, 6/8-bit), 20 pins, Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 12.1 inch VS121T-003A 1024x768 IPS LCD Screen1 LVDS Cable1 Keyboard With Cable(Please notice that there is no power supply in the package, pls prepare by yourself)
