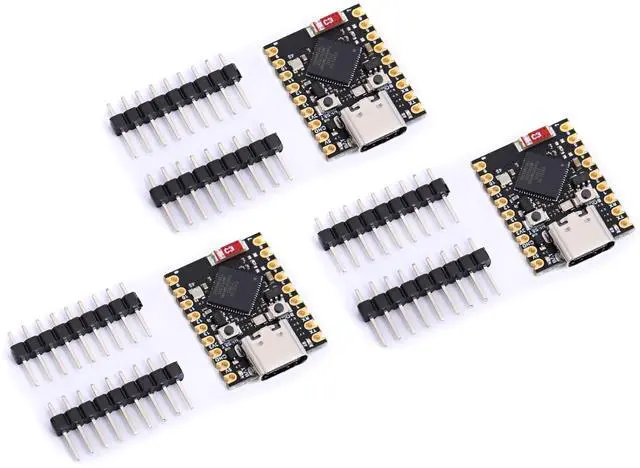

Teyleten Robot Supermini ESP32-S3 Development Board Supermini Development Board WiFi Bluetooth 3pcs
- ESP32S3SuperMini is positioned as a high-performance, low-power, cost-effective IoT mini development board for low-power IoT applications and wireless wearable applications.
- Powerful CPU: ESP32-S3, 32-bit single-core processor running at 160 MHz.
- WiFi: 802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, and mixed mode.
- Ultra-low power consumption: deep sleep power consumption of about 43A
- Rich board resources: 400KB, 384KB ROM 4Mflash built-in.
- Ultra-small size: as small as a thumb (22.52x18mm) Classic form factor for wearables and small projects.
- Reliable security features: cryptographic hardware accelerator with support for AES-128/256, hash, RSA, HMAC, digital signature and secure boot
- Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

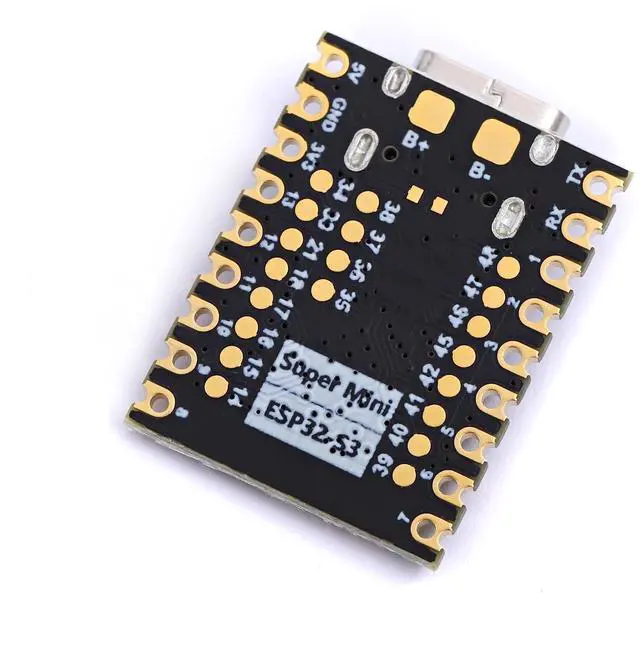

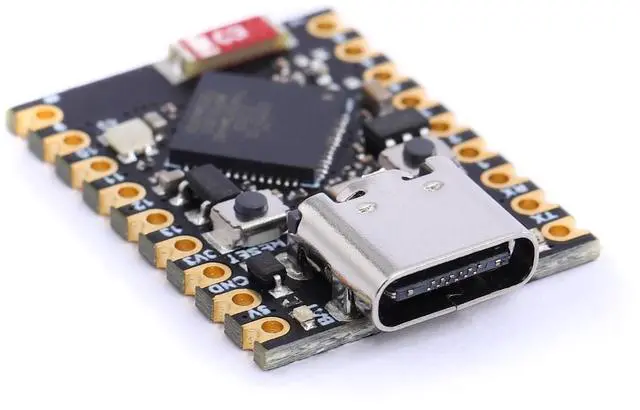

The ESP32S3SuperMini is an IoT mini development board based on the ESP32-S3 WiFi/Bluetooth dual-mode chip. The ESP32-S3 is a 32-bit CPU containing a FPU (Floating Point Unit) for 32-bit single-precision arithmetic with powerful computational capabilities. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. The board comes with an external antenna to enhance signal strength for wireless applications. It also features a small and compact form factor combined with a single-sided surface mount design. It is equipped with a rich set of interfaces, with 11 digital I/Os that can be used as PWM pins and 4 analogue I/Os that can be used as ADC pins, and it supports four serial interfaces, including UART, I2C and SPI.

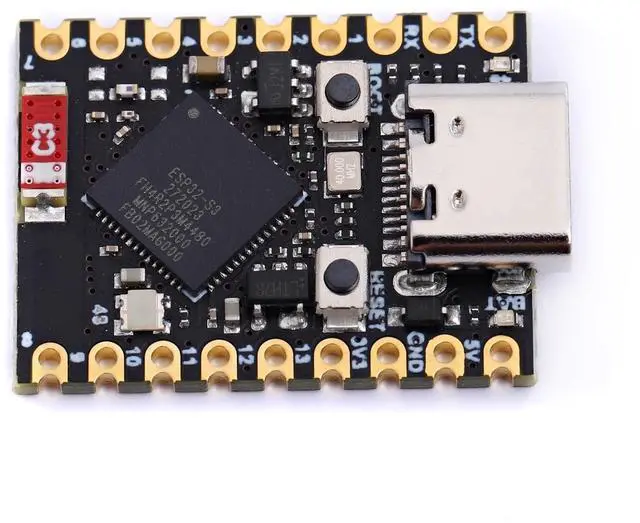

There is also a small reset button and a bootloader mode button on the board. Translated with DeepL. com (free version)
There is also a small reset button and a bootloader mode button on the board. Translated with DeepL. com (free version)
