ESP32-S3 3.5inch Capacitive Touch Display Development Board, 320x480 IPS LCD,WFi/BLE 5, Supports AI Speech Interaction and Offline Voice Control, Comes with Case and OV5640 Camera

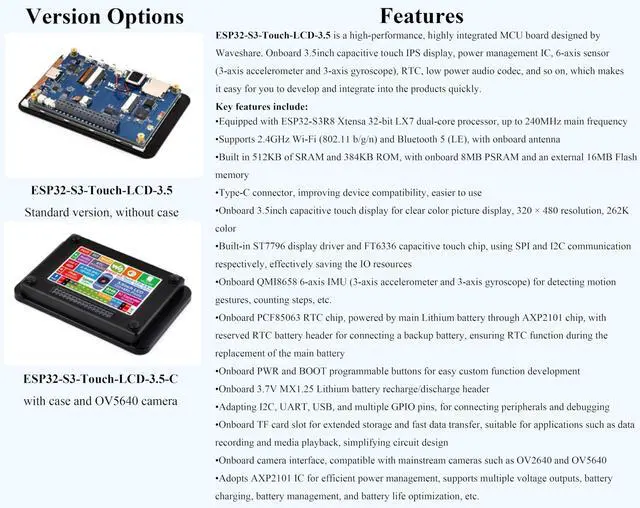

- It is a high-performance, highly integrated MCU board (ESP32 With Display). Onboard 3.5inch capacitive touch IPS display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate into the products quickly.
- Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, Doubao,ChatGPT, etc. Onboard Audio Codec: Supports high-quality audio processing, providing clear and high-quality audio input and output.
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory.
- Onboard 3.5inch capacitive touch display for clear color picture display, 320 x 480 resolution, IPS Display, 262K color. Suitable for various smart device developmen
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

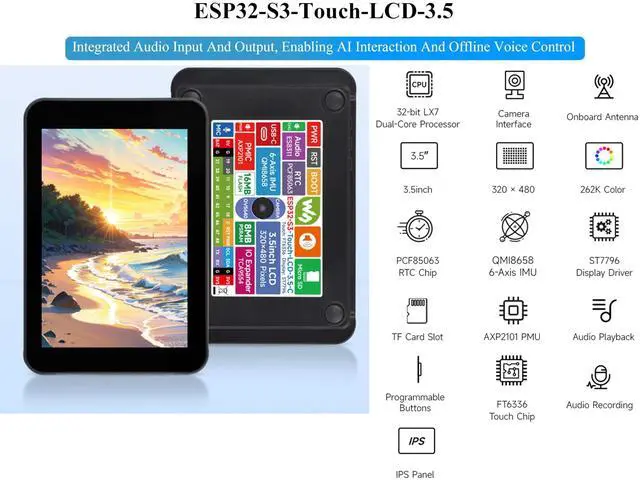

DescriptionESP32-S3-Touch-LCD- 3.5, Integrated audio input and output, enabling AI interaction and offline voice control.

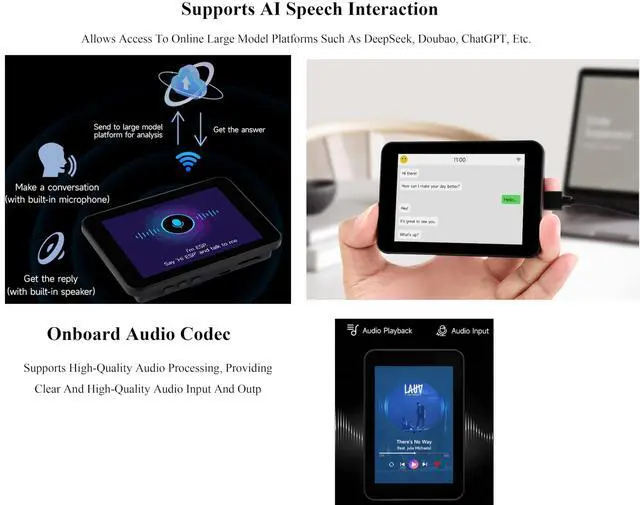

Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, Doubao, ChatGPT, etc.
Onboard Audio Codec: Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Onboard 3.5 inch capacitive touch display for clear color picture display, 320 x 480 resolution, IPS Display, 262K color. Suitable for various smart device development, enabling human-machine interaction. Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PWR and BOOT programmable buttons for easy custom function development. Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, batt-ry charging, batt-ry management, and batt-ry life optimization, etc.

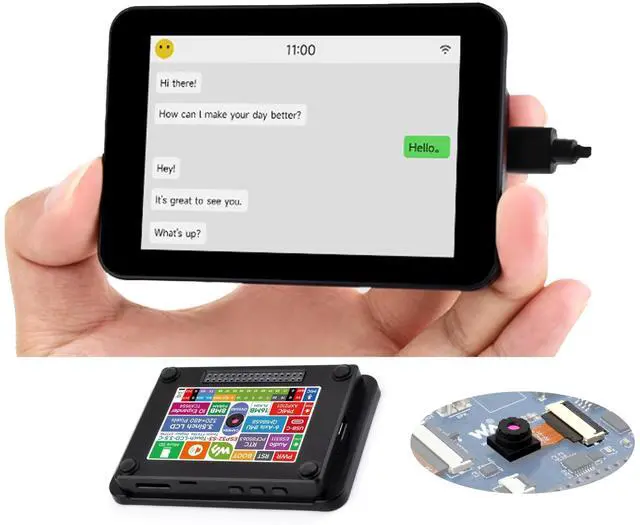

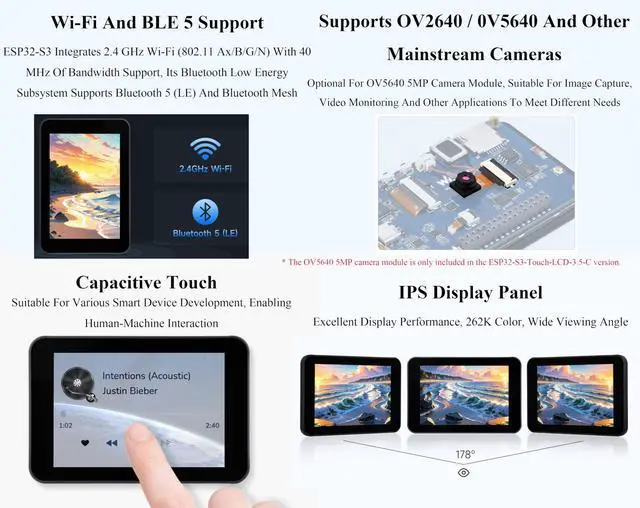

Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640. (OV5640 camera is included) Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/76z9x6Package ContentESP32-S3-Touch-LCD- 3.5 with case and OV5640 camera x1
Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, Doubao, ChatGPT, etc.
Onboard Audio Codec: Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Onboard 3.5 inch capacitive touch display for clear color picture display, 320 x 480 resolution, IPS Display, 262K color. Suitable for various smart device development, enabling human-machine interaction. Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PWR and BOOT programmable buttons for easy custom function development. Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, batt-ry charging, batt-ry management, and batt-ry life optimization, etc.
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640. (OV5640 camera is included) Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/76z9x6Package ContentESP32-S3-Touch-LCD- 3.5 with case and OV5640 camera x1
