$167.99
Meet Your Seller

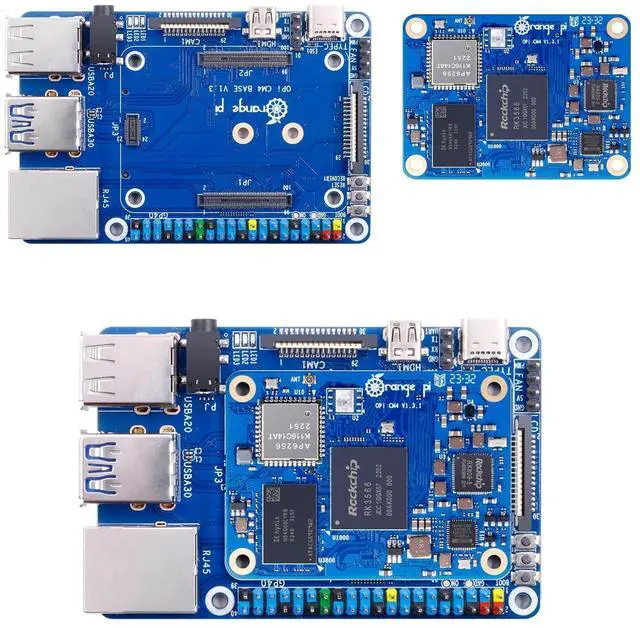

Orange Pi CM4 4G32GB with Base Board RK3566 Quad Core 64 Bit Single Board Computer, 1.8 GHz Frequency Wi-Fi & Bluetooth 5.0 Integrated RKNN NPU AI Accelerator (4G32G+Base Board)
- [High Performance] - Orange Pi Compute Module 4 4gb is powered by Rockchip RK3566, a quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz; integrated ARM Mali G52 2EE graphics processor, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1.
- [High Speed] - Orange Pi CM4 4g embedded high-performance 2D acceleration hardware; integrated RKNN NPU AI accelerator, 0.8Tops@INT8 performance, supporting Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture model conversion with one click.
- [Abundant RAM & eMMC Memory] - 4GB (LPDDR4/4X), 32GB eMMC Memory
- [Wi-Fi 5+BT 5.0, BLE support] Built-in 2.4G/5G dual-band Wi-Fi 5 and Bluetooth 5.0, support BLE, enjoy wonderful network anytime, anywhere. Already equipped with on-board antenna, optional external antenna, more suitable for industrial grade applications.
- [Run Multiple Systems] - Orange Pi Compute Module 4 run Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orang
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

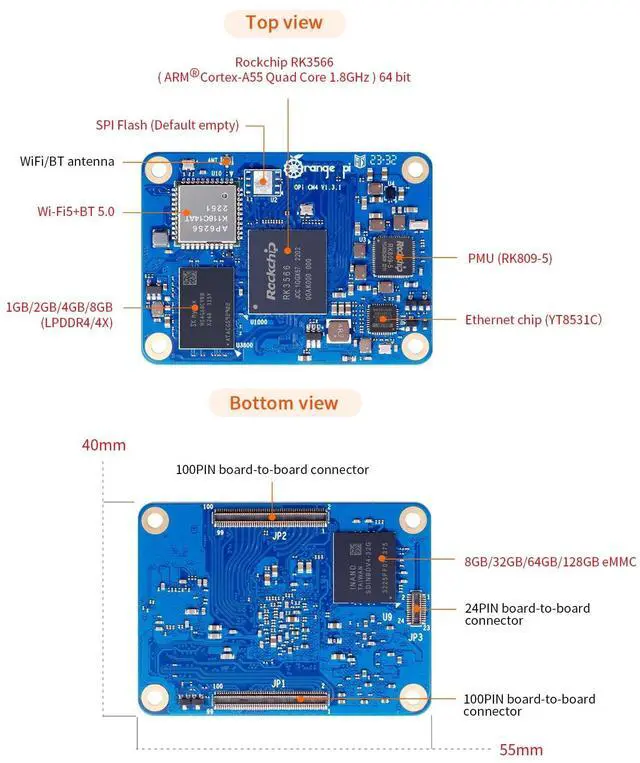

Orange Pi Compute Module 4SoC: RockChip
RK3566CPU: Quad-core 64-bit Cortex-A55 processor22nm advanced process, up to 1.8GH z main frequencyGPU: ARM Mali G52 2EE graphics processor; Supports OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1; Embedded high performance 2D acceleration hardwareNPU: Integrated RKNN NPU AI gas pedal, 0.8T ops@INT8 performance; Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/DarknetVPU; 4K@60fps H. 265/H. 264/VP9 video decoding; 1080P@100fps H. 265 video encoding; 1080P@60fps H.
264 video encodingPMU: RockChip
RK809-5RAM: 2GB/4GB/8GB
LPDDR4/4xMemory: On-board
eMMC: 16GB/32GB/64GB/128GB;
SPI Flash: default empty postWi-Fi +
Bluetooth: Wi-Fi
5+BT 5.0BLE 20U5622Ethernet transceivers: 10/100/1000Mbps Ethernet (on-board
PHY chip:

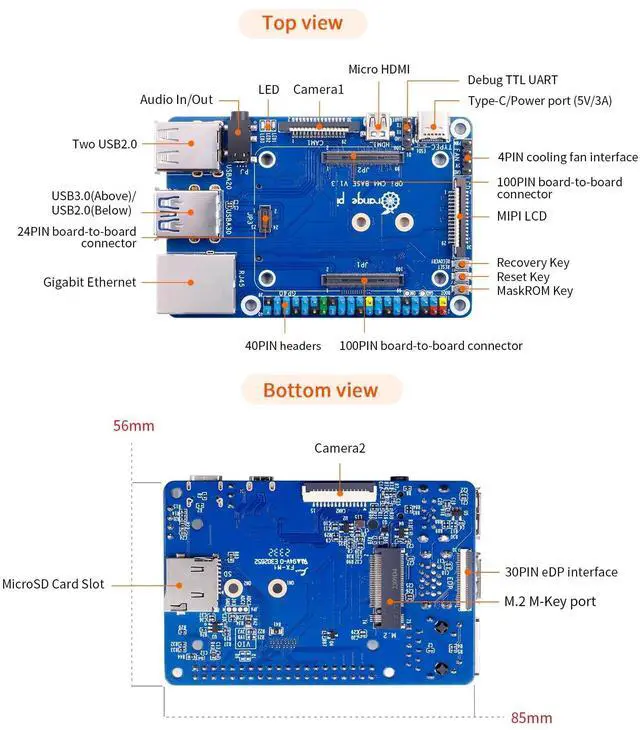

YT8531C)Interface: 100Pin*2, 24Pin*1, contains
the following signals: 10/100/1000Mbps Ethernet MDI signals1* HDMI 2.0 interface up to 4K@60fps1* 2-lane MIPI DSI display interface1* 4-lane MIPI DSI display interfaceEmbedded Display Port (eDP) 1* 4-lane MIPI CSI camera interfaceSATA3 or PCIeUSB 3.0 *1+USB 2.0 *3RESET, MASKROM, RECOVERY
Headphone jack Audio input and output signalsDC 5V input power supply, DC 3.3V and 1.8V output power supplySupported
OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB Size: 55X40mm
RK3566CPU: Quad-core 64-bit Cortex-A55 processor22nm advanced process, up to 1.8GH z main frequencyGPU: ARM Mali G52 2EE graphics processor; Supports OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1; Embedded high performance 2D acceleration hardwareNPU: Integrated RKNN NPU AI gas pedal, 0.8T ops@INT8 performance; Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/DarknetVPU; 4K@60fps H. 265/H. 264/VP9 video decoding; 1080P@100fps H. 265 video encoding; 1080P@60fps H.
264 video encodingPMU: RockChip
RK809-5RAM: 2GB/4GB/8GB
LPDDR4/4xMemory: On-board
eMMC: 16GB/32GB/64GB/128GB;
SPI Flash: default empty postWi-Fi +
Bluetooth: Wi-Fi
5+BT 5.0BLE 20U5622Ethernet transceivers: 10/100/1000Mbps Ethernet (on-board
PHY chip:
YT8531C)Interface: 100Pin*2, 24Pin*1, contains
the following signals: 10/100/1000Mbps Ethernet MDI signals1* HDMI 2.0 interface up to 4K@60fps1* 2-lane MIPI DSI display interface1* 4-lane MIPI DSI display interfaceEmbedded Display Port (eDP) 1* 4-lane MIPI CSI camera interfaceSATA3 or PCIeUSB 3.0 *1+USB 2.0 *3RESET, MASKROM, RECOVERY
Headphone jack Audio input and output signalsDC 5V input power supply, DC 3.3V and 1.8V output power supplySupported
OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB Size: 55X40mm
