Model M 100T DMA Card - Zinc Oxide Paste Cooling - Direct Memory Access Card USB-C - MemProcFS PCILeech Compatible - DMA Board - FPGA PCIE x1-400 MB/s FTDI FT601 - XC7A100T-484 DMA Card

Xilinx 7 Series Artix-7 100T
FPGA: The Xilinx Artix-7 FPG
As offer cost-effective performance with advanced features such as high logic density, efficient signal processing, embedded memory, LVDS I/O, memory interfaces, and transceivers. The Model M DMA card utilizes the XC7A100T chip, which surpasses the XC7A75T-484 in several key areas. The XC7A100T offers higher logic density, enabling more complex designs and greater processing power. This makes it ideal for demanding applications that require enhanced computational capabilities and scalability. By leveraging the XC7A100T, the Model M DMA card becomes a good choice for projects that demand superior performance and advanced functionality. ^^ PCI
Leech Compatible: The Model M card supports 64-bit memory access, PCIe TLP access, and is fully compatible with PCI
Leech. PCI
Leech utilizes PCIe boards with FPGA DMA capabilities to execute direct memory access (DMA) operations, enabling both reading and writing to the target system's memory. Notably, the card does not come pre-flashed with custom firmware, giving users the freedom to configure it to meet their unique needs.

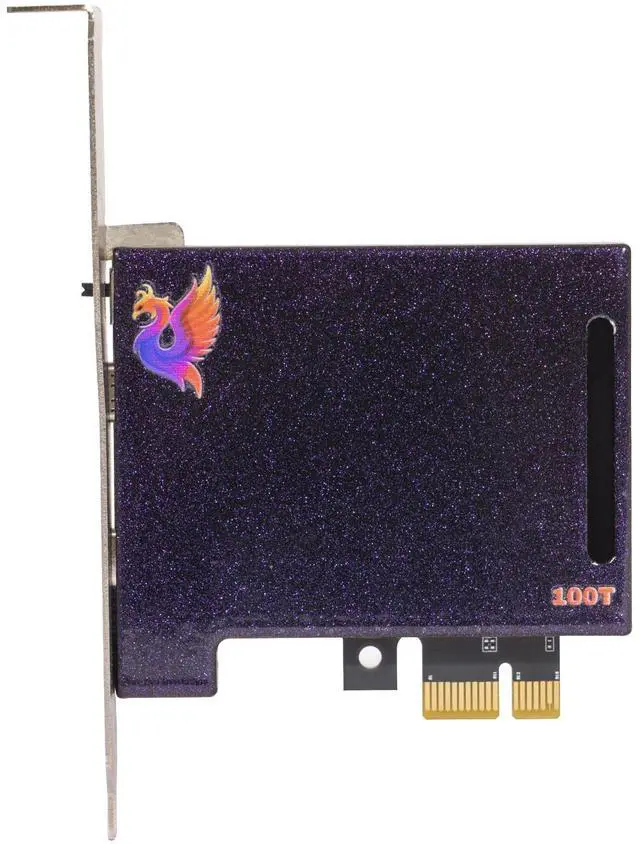

^^ Enhanced Dual-System Cooling: The 100T FPGA DMA card is engineered with sophisticated thermal management to maintain peak performance and extend hardware lifespan. At its core, a layer of Zinc Oxide-based thermal compound is precisely applied to the XC7A100T-484 chip for efficient heat transfer. Additionally, the card features an aluminum alloy enclosure that doubles as a heat sink, utilizing aluminum's superior thermal conductivity to effectively absorb and dissipate residual heat. ^^
USB-C FTDI FT601 Interface: The integrated FT601 SuperSpeed USB 3.0 chip is designed to provide high speed and capacity for data transfer, supporting a maximum bandwidth of up to 5Gbps. Paired with the included USB 3.2 cable, this high-performance IC minimizes data transfer bottlenecks, allowing for smoother and more efficient workflows. The system can achieve PCI
Leech DMA read and write speeds of up to 400 MB/s, delivering reliable and high-speed memory access for even the most demanding applications.
^^ CH347 USB-C JTAG: The onboard CH347 JTAG enables users to easily flash or update the cards firmware via the Update Port using a standard USB connection. This design eliminates the need for external JTAG adapters or specialized hardware, simplifying the setup process and saving both time and effort.

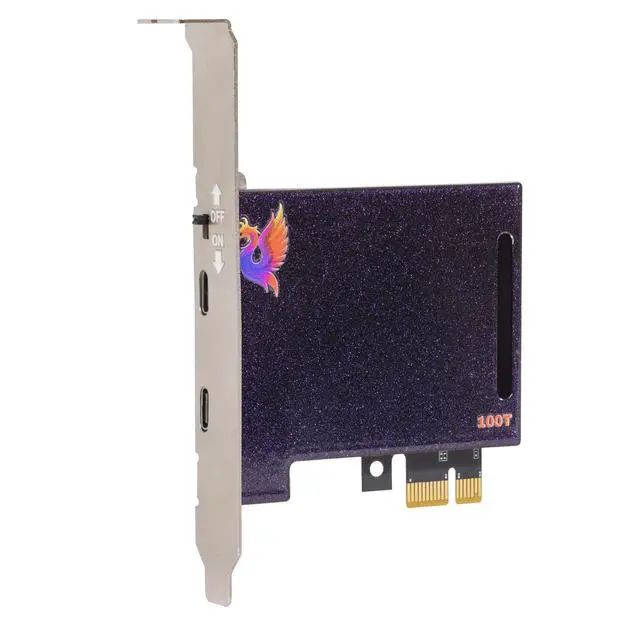

^^ On/Off Switch: The 100T FPGA card features a built-in on/off switch, offering users a simple and efficient way to control the devices power state. This eliminates the need to unplug or disconnect the card from the PC when not in use, providing a more convenient and user-friendly experience. By allowing easy power management, this design enhances both the hardwares longevity and its readiness, ensuring a stable connection is maintained for when the card is needed again.

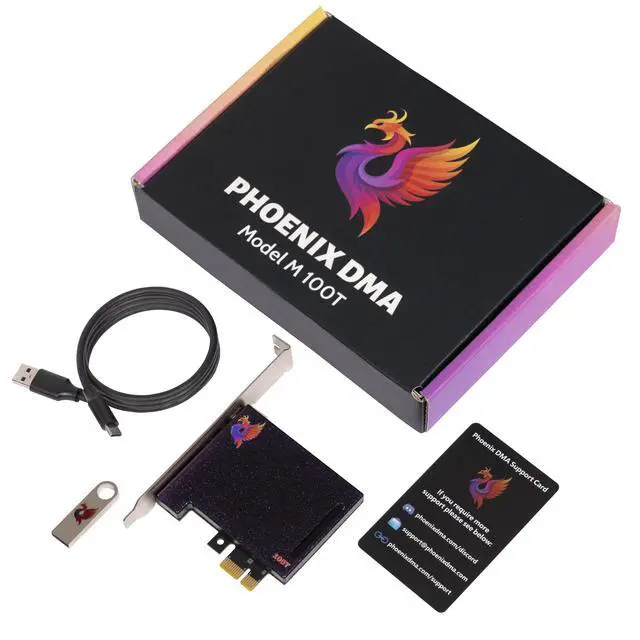

^^ USB Installation Drive: Included in the packaging is a USB drive preloaded with all the essential resources for a seamless and efficient setup. This drive contains the necessary drivers to establish proper communication between your system and the device, along with a suite of tools for configuration, programming, and operation. Additionally, it provides detailed, step-by-step instructions to guide users through the setup process, ensuring even those with limited technical experience can easily get the DMA card up and running.
