LINOVISION Industrial 4 Ports MPPT Solar PoE Switch for Security Cameras and IoT Devices, Support Remote Battery Monitoring, Total PoE Budget 120W

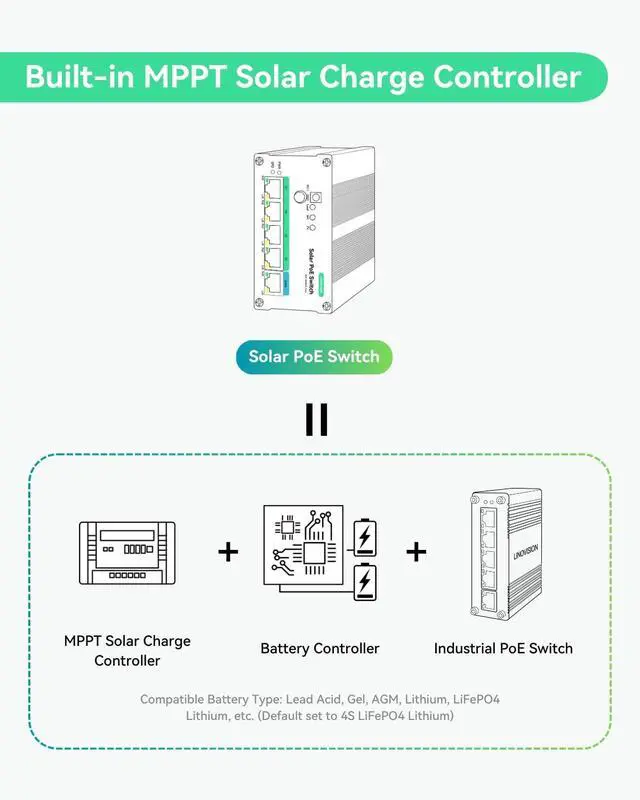

SOLAR PoE SWITCH - Industrial PoE Switch with built-in MPPT solar charge controller, working directly with PV solar panels (Max. 300W) and batteries to supply non-stop PoE power for security cameras, Wireless bridges, LED lights, etc.

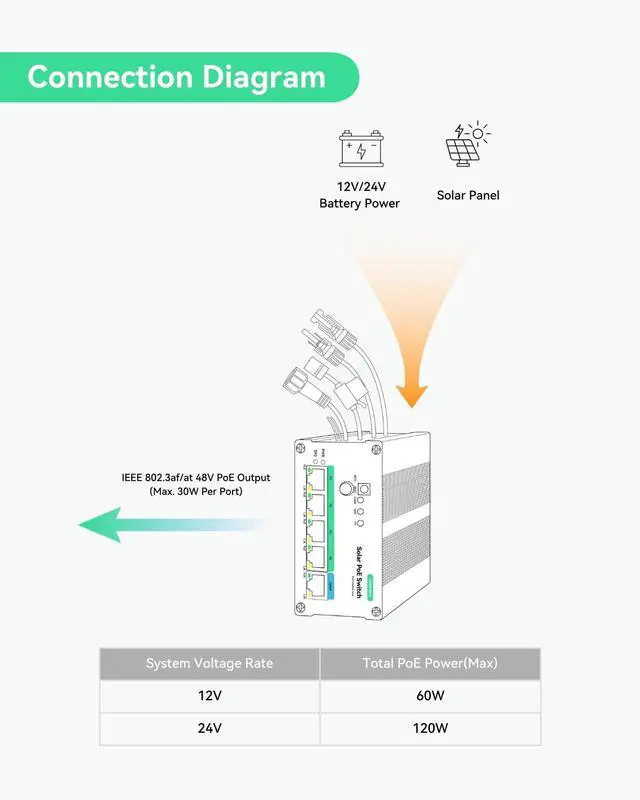

Note: This switch automatically detects 12V or 24V DC system voltages (non-lithium battery types). Default setting is 12V LiFePO ^^ SMART BATTERY MANAGEMENT - Local battery status LED indicator and remotely battery management, compatible to battery types (Lead Acid, Gel, AGM, Lithium, LiFePO4 Lithium, etc. ). Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types). 10A output current. ^^ 99% EFFICIENT CHARGING - MPPT (Maximum Power Point Tracker) charging technology with up to 99% tracking efficiency and 98% peak PV conversion efficiency. It is much better than traditional PWM controllers, especially in cloudy days. ^^ 5-PORT FULL GIGATBIT PoE SWITCH -Provide 4 IEEE 802.3 af/at 30W POE ports and 1 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget is 120W@24V or 60W@12V. ^^ REMOTE MONITORING via RS485 - Supports RS485 ModBus for remote monitor and control, enabling you to monitor the status of your solar panels/solar trailers/solar powered cameras on the go. It can be managed in Linovision RemoteMonit Cloud Platform (bundle with
IOT-C101: B0CM9L6ZQF or

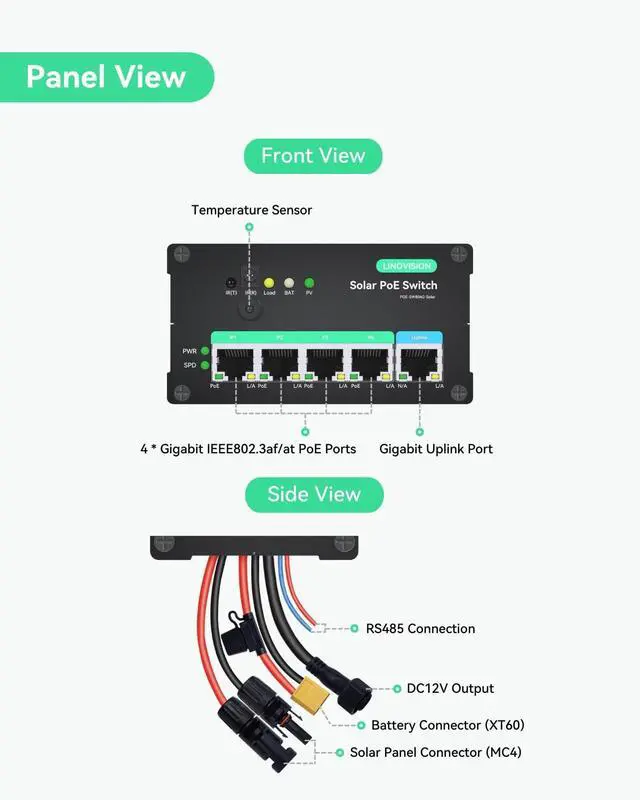

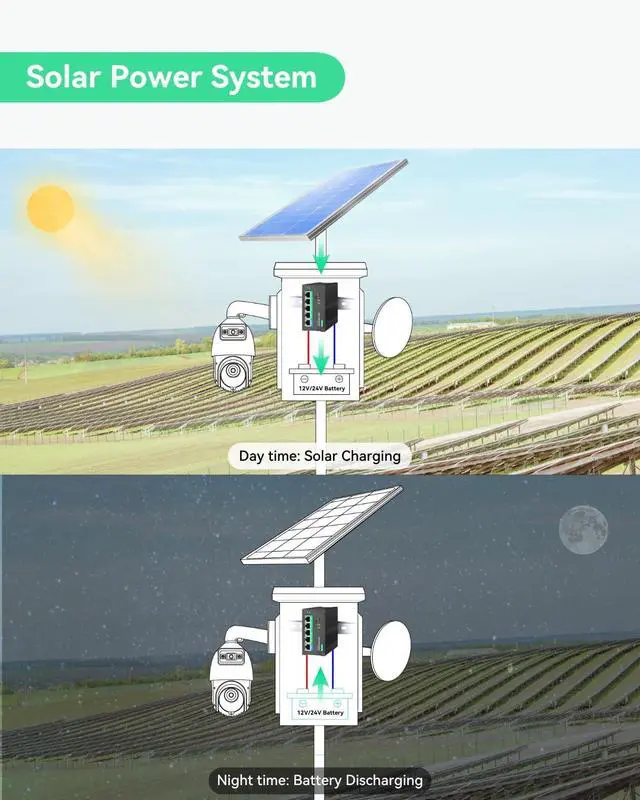

IOT-R51W Gateway: B0CBTL7XG6). ^^ EASY CABLING - Easy and secure cabling, MC4 for PV panels, XT60 for battery, and round 2pin for load devices. ^^ HIGH SECURITY- 4-Stage Safely Charging & well designed protections, including over charging, over discharging, PV short circuit, PV current is too high, load failure, battery reverse polarity, etc. It also comes with 20A Fuse protection on the battery terminal. ^^ INDUSTRIAL DESIGN - IP40 Metal shell & fanless design. Support DIN-rail installation. Wide working temperature -40 to +131-40 to 55), 6KV Surge Protection. ^^ APPLICATION - Suitable for small off-grid systems, like solar powered camera system, Solar Powered Weather / IoT station, etc.
