VSDISPLAY DVI VGA Audio LCD Controller Board for 16.7" Screen 16.7 inch M167XGBN30-01A LVDS 30 Pin LCD Display,for Mod Machine
- Compatible with:Perfectly work with LCD screen 16.7 inch M167XGBN30-01A.It can be used to mod the machines.It's a good choice to use upgrade the cabinet,and use this for the screen replacement

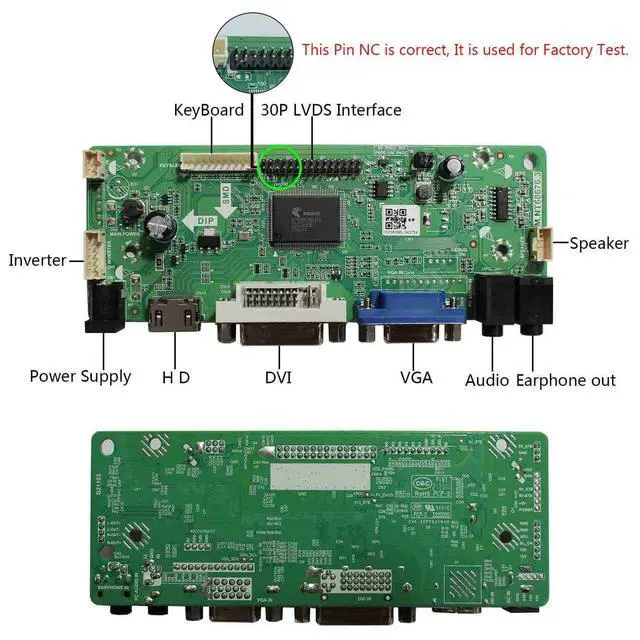

- Multiple Interface:Supports /VGA/DVI video input, audio output;Speaker connector
- Recommend Power Adapter Specs:12Vdc More than 2A. Connector: 5.5mmx2.1mm. (Please note the voltage must be 12V DC. Other voltages may damage the controller board or fail to power on the controller board. The current is recommended to exceed 2A, if the current is too low, the LCD screen may cannot be lighted up.)

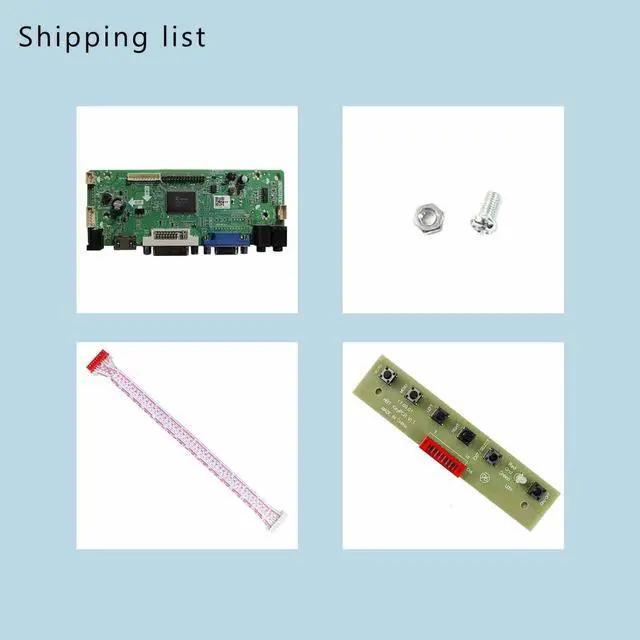

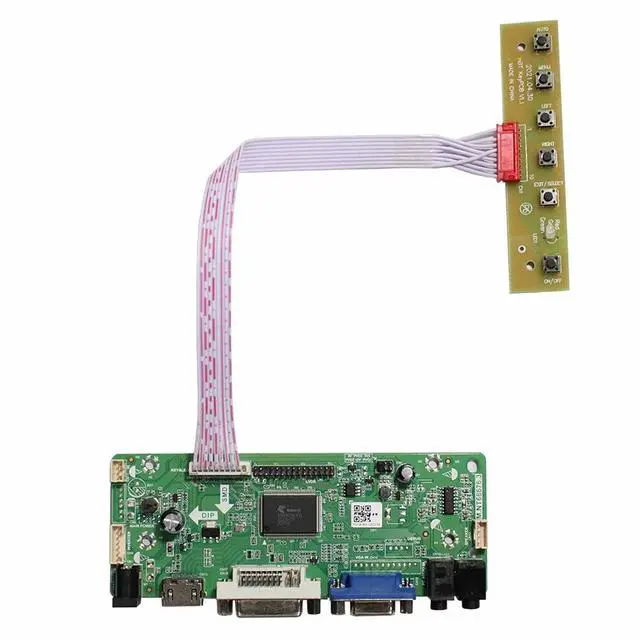

- Packing list:1 VGA DVI LCD Controller Board 68676.3 (new version);1 Screw And Nut For GND Connection;1 Keyboard With Cable
- Service:All the products are tested before package and shipment,if any problem of product,please feel free to contact us
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: DVI VGA Audio LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 3A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Input: Audio
Output: Speaker

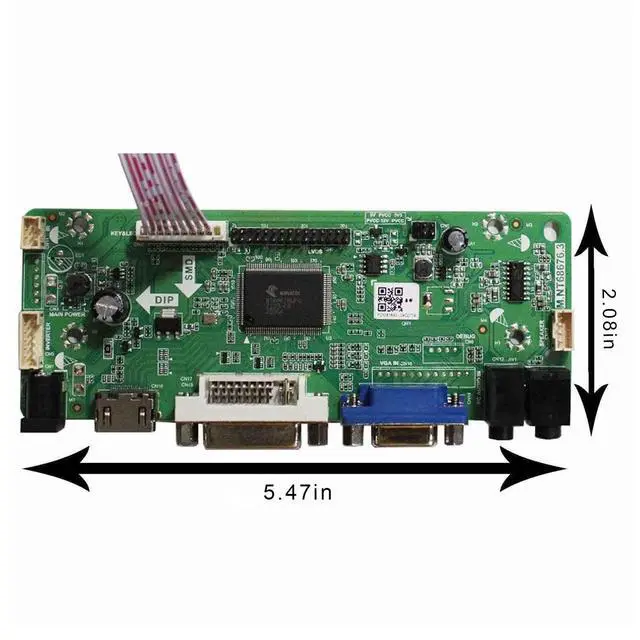

ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x 53mm x 17mm( 5.47 in x 2.09 in x 0.67 in)Compatible
Work With: 16.7 inch
M167XGBN30-01APacking list: 1 VGA DVI LCD Controller Board 686761 Screw And Nut For GND Connection1
Keyboard With CableTips: Help to notice that there is no power adapter, speaker or board case in the packing list, pls prepare by yourself
LCD ScreenInput Power Adapter: 12Vdc More than 3A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Input: Audio
Output: Speaker
ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x 53mm x 17mm( 5.47 in x 2.09 in x 0.67 in)Compatible
Work With: 16.7 inch
M167XGBN30-01APacking list: 1 VGA DVI LCD Controller Board 686761 Screw And Nut For GND Connection1
Keyboard With CableTips: Help to notice that there is no power adapter, speaker or board case in the packing list, pls prepare by yourself
