TVI CVI AHD CVBS to HDMI Converter,WANLUTECH Full HD 4K 8MP/5MP/4MP/3MP/1080P/720P BNC to HDMI Converter Adapter for Monitor HDTV DVR

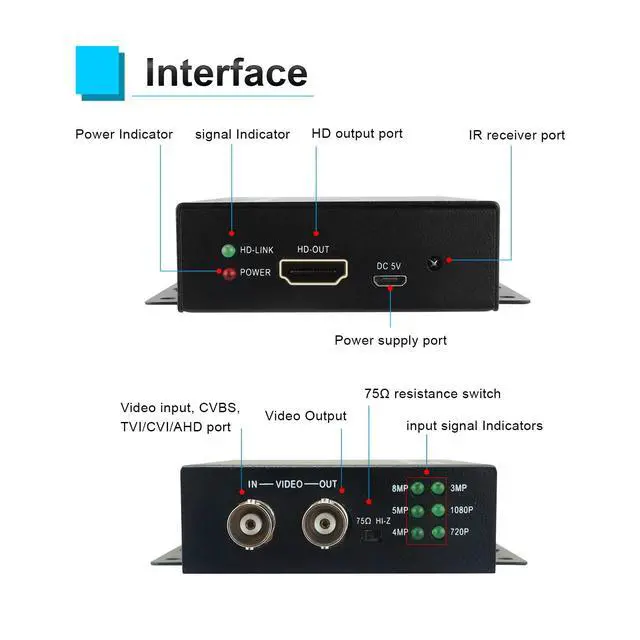

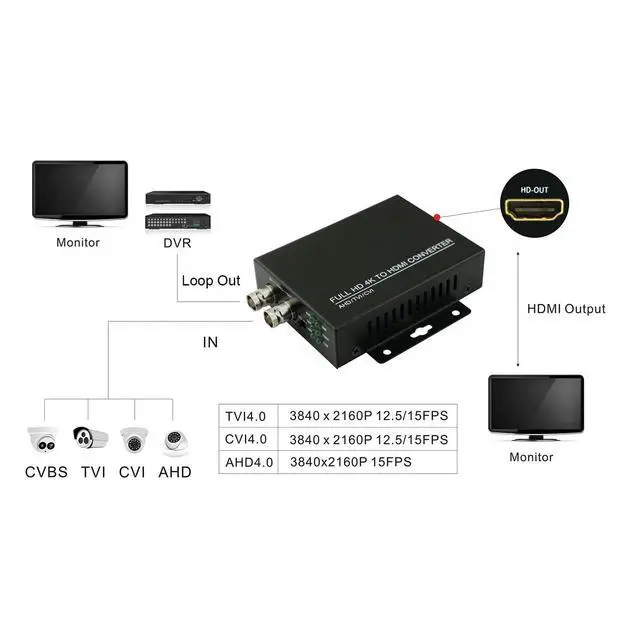

[ CVI/TVI/AHD/CVBS to HDMI ] Our converter works with CVBS, AHD, CVI, TVI cameras ( It converts security camera signals to HDMI monitor). HDMI output 1080P 60Fps, connect HDMI output cable, HD-LINK light, display yellow light. Long transmission distance (500-700 meters through coaxial cable). Different resolution, different transmission distance. It converts TVI CVI AHD CVBS BNC video signal to HDMI ^^ [ Auto Identify Input ] WANLUTECH full hd 4k to hdmi converter is plug-and-play and can automatically identify 720P/1080P/3MP/4MP/5MP/8MP resolution, and has LED indicator to show what resolution the video input has detected ^^ [ HDMI Port & Power Port ] WANLUTECH full HD 4k to HDMI converter has HDMI output port and DV 5V micro-USB port.

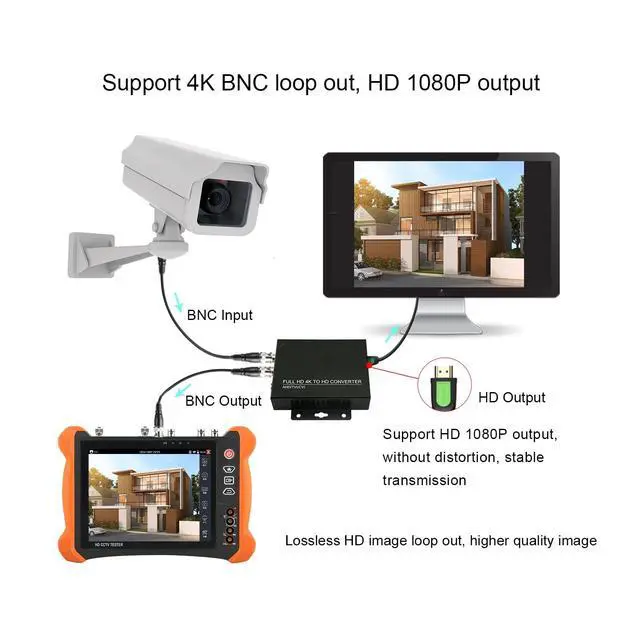

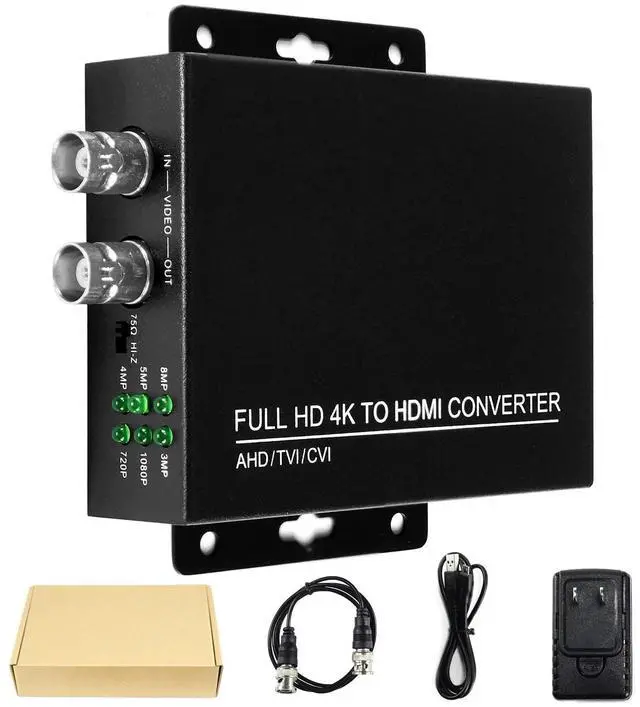

The device uses 5V/1A power supply, and power indicator stays on after the converter is powered on ^^ [ 75 and HI-Z Switch ] When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to 75. When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set to HI-Z. ^^ [ Compact Size & Easy to Install ] The size of WANLUTECH CVI/TVI/AHD to HDMI converter is 109 mm x 94 mm x 25 mm, the weight of converter is 0.18 kg.

It features a sturdy metal housing, with heat dissipation holes and mounting holes on both sides, easy to dissipate heat and install.
