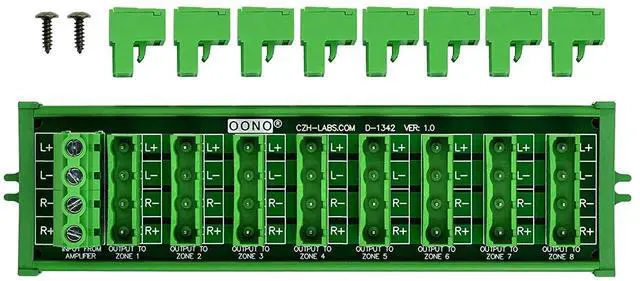

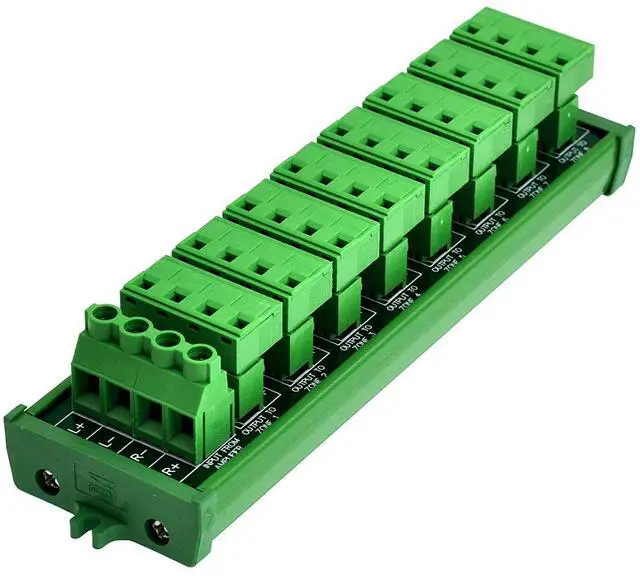

OONO Whole House Audio Stereo 8-Zone Speaker Distribution Module

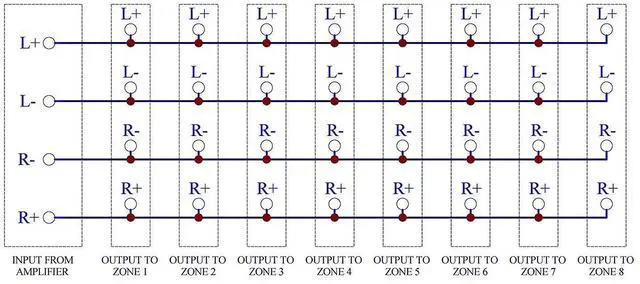

- Parallel connecting block for use with Impedance matching volume controls. One Stereo Input, eight stereo outputs. Detachable connectors for easy wiring. (NOTE: Must be used with impedance matching volume controls)
- The item for 70V / 100V constant voltage audio power amplifier, maximum input 300 Watts(per channel).
- INPUT terminal block: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

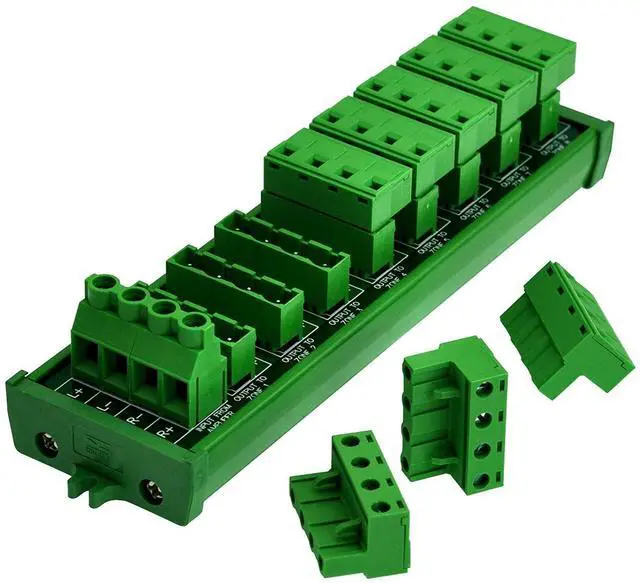

- OUTPUT ZONE 1 to 8 Terminal blocks: Pluggable screw terminal blocks, Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- High quality fireproof nylon material mount carrier, also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1, Parallel connecting block for use with Impedance matching volume controls. One Stereo Input, eight stereo outputs. Detachable connectors for easy wiring.
(NOTE: Must be used with impedance matching volume controls)2, The item for 70V / 100V constant voltage audio power amplifier, maximum input 300 Watts (per channel). 3, INPUT
terminal block: Pitch 7.62 mm/ 0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass. 4, OUTPUT ZONE 1 to 8
Terminal blocks: Pluggable screw terminal blocks, Pitch 7.62 mm/ 0.3", Wire range 28AWG ~ 12AWG / 2.5 mm square. Strip length 7mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass. 5, High quality fireproof nylon material mount carrier, also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.
(NOTE: Must be used with impedance matching volume controls)2, The item for 70V / 100V constant voltage audio power amplifier, maximum input 300 Watts (per channel). 3, INPUT
terminal block: Pitch 7.62 mm/ 0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass. 4, OUTPUT ZONE 1 to 8
Terminal blocks: Pluggable screw terminal blocks, Pitch 7.62 mm/ 0.3", Wire range 28AWG ~ 12AWG / 2.5 mm square. Strip length 7mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass. 5, High quality fireproof nylon material mount carrier, also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.
