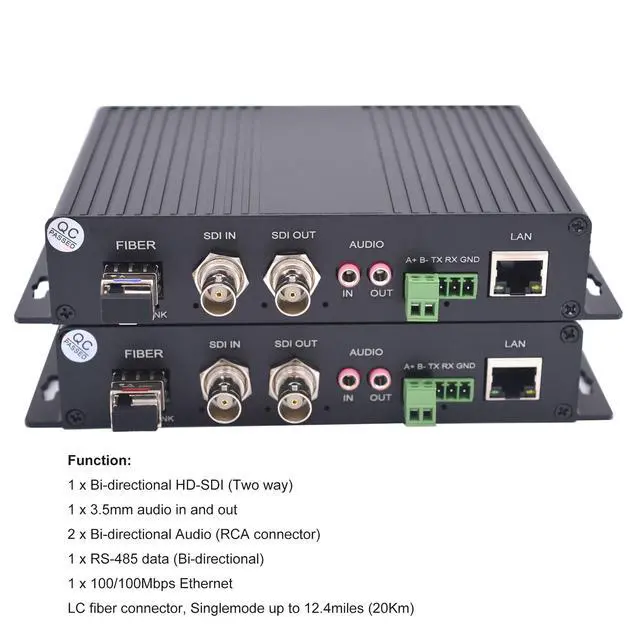

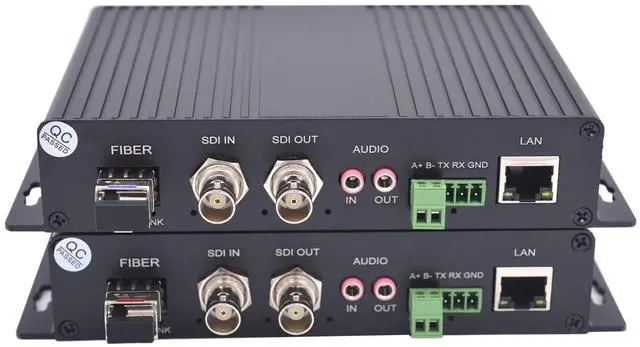

Wekuant Bidirectional HD-SDI Over Fiber Optic Converter Uncompressed SDI Video Audio Ethernet RS485 Data to Fiber Extender Adapter,LC Singlemode Single Fiber up to 20Km No Delay

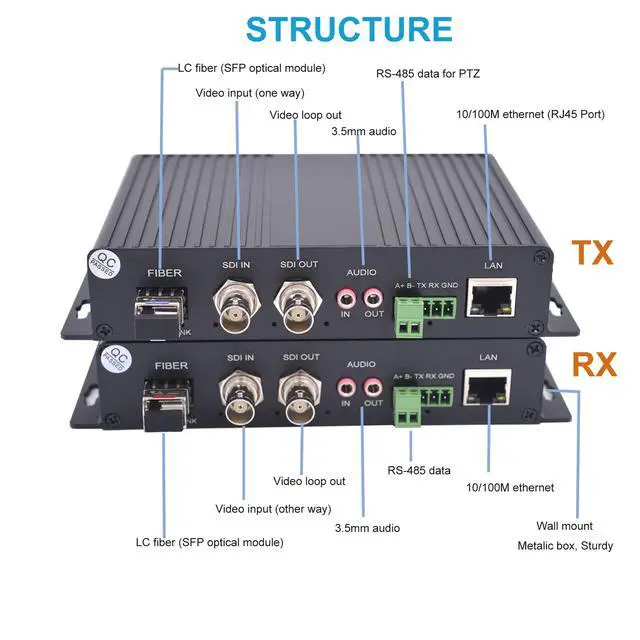

This HD-SDI fiber converters can extend a channel of Bi-directional HD-SDI Video/Audio signal over a fiber optic to far end, One direction from TX to RX, other direction is from RX to TX. Single-mode fiber can up to 12.4 Miles (20Km). with two SFP optical module, LC simplex port. HD-SDI signal is with embedded audio signal ^^ Support SMPTE292M(HD-SDI), SMPTE259M(SD-SDI) and DVB-ASI, Video resolution is compatible with 1080P@30/25, 1080i@60/50, 59.94 and more (Please Note that the model not support 3G-SDI, Not support 1080P@60Hz) ^^ With clock recovery, clock shaping, this function can make sure the video image no flicker, high quality design ^^ Support Video loop out function and one bidirectional RS485 data, Supports embedded digital audio stream.

the 10/100Mps ethernet (RJ45 port) can extend your networking signal through a fiber optic to far end up to 12.4 miles, it also can use for IP camera with RJ45 port and More ^^ Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution ^^ Plug and play, No need for on-site adjustment. Simply plug in BNC port and LC optical port, and it will work immediately.
