7 Band Sound Equalizer, Output Input, 12dB High Bass Adjustment, Two Channel Digital Equalizer, 3.5mm Interface, for Recording, Streaming, Podcasting
- Aluminum alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, , stable performance, DC5V 12V power supply, dual channel sound.
- Basic parameters: 7 band sound equalizer preamp gain, 4580 classic op amp provides 5 times gain (14dB); Input impedance 20K, output impedance 600 ohms.

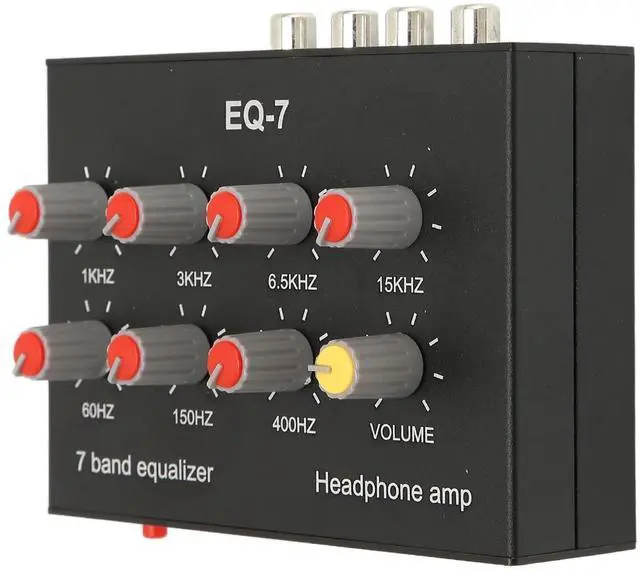

- Control range: 7-band equalization circuit control range 12dB, equalization band: 60Hz, 150Hz, 400Hz, 1kHz, 3kHz, 6.5kHz, 15kHz, from TI or ST original TL074 composition.

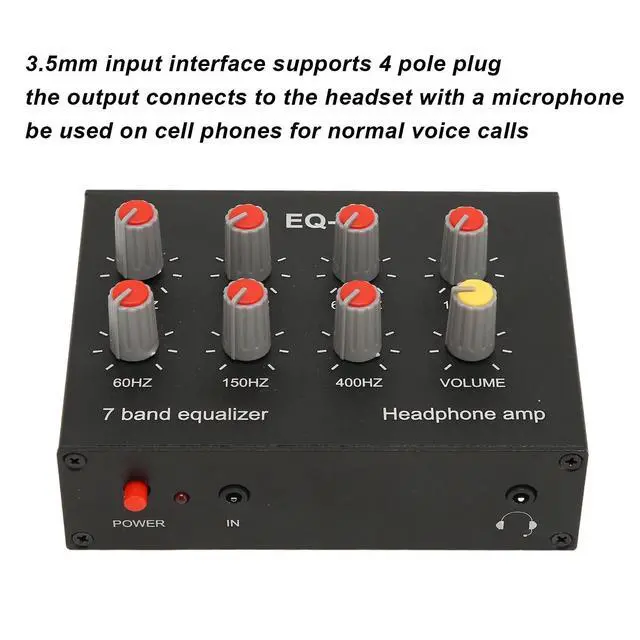

- 3.5mm interface: The 3.5mm input interface supports a 4-pin plug, the output is connected to the headset with a microphone, which can be used on mobile phones for ordinary voice calls, and another terminal with a group interface is available.

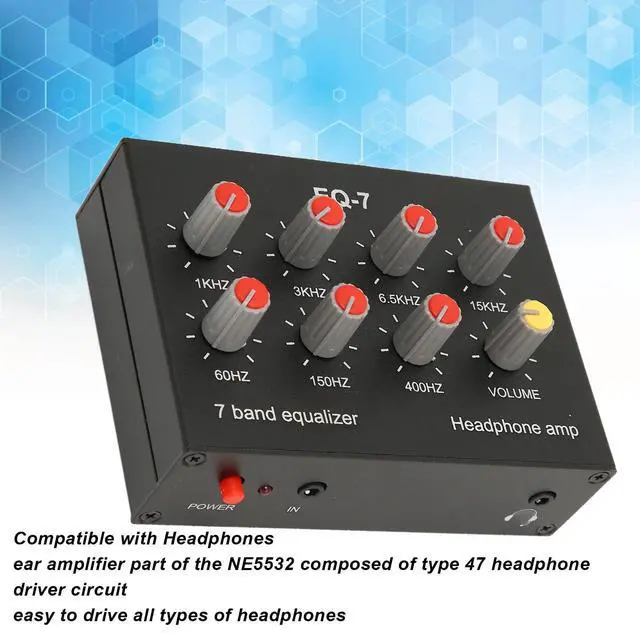

- Headphone Compatible: Sound equalizer ear amplifier part of NE5532, consisting of 47-type headphone driver circuit, easy to use all kinds of headphones, high and low.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Aluminum alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength,, stable performance, DC5V 12V power supply, dual channel sound.
^^ Basic parameters: 7 band sound equalizer preamp gain, 4580 classic op amp provides 5 times gain (14dB); Input impedance 20K, output impedance 600 ohms.
^^ Control range: 7-band equalization circuit control range 12dB, equalization
band: 60Hz, 150Hz, 400Hz, 1kHz, 3kHz, 6.5 kHz, 15kHz, from TI or ST original TL074 composition.
^^ 3.5 mm interface: The 3.5 mm input interface supports a 4-pin plug, the output is connected to the headset with a microphone, which can be used on mobile phones for ordinary voice calls, and another terminal with a group interface is available.
^^ Headphone Compatible: Sound equalizer ear amplifier part of NE5532, consisting of 47-type headphone driver circuit, easy to use all kinds of headphones, high and low. ^^ ^^ ^^ ^^ ^^
^^ Basic parameters: 7 band sound equalizer preamp gain, 4580 classic op amp provides 5 times gain (14dB); Input impedance 20K, output impedance 600 ohms.
^^ Control range: 7-band equalization circuit control range 12dB, equalization
band: 60Hz, 150Hz, 400Hz, 1kHz, 3kHz, 6.5 kHz, 15kHz, from TI or ST original TL074 composition.
^^ 3.5 mm interface: The 3.5 mm input interface supports a 4-pin plug, the output is connected to the headset with a microphone, which can be used on mobile phones for ordinary voice calls, and another terminal with a group interface is available.
^^ Headphone Compatible: Sound equalizer ear amplifier part of NE5532, consisting of 47-type headphone driver circuit, easy to use all kinds of headphones, high and low. ^^ ^^ ^^ ^^ ^^
